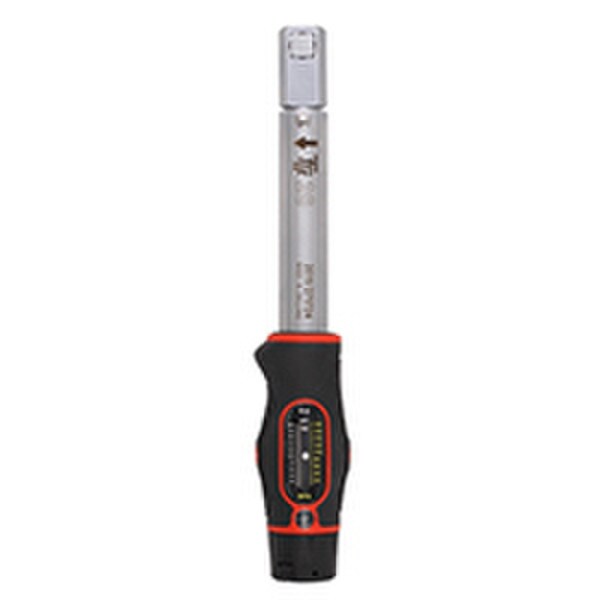

13838 | 3/8 in. Square 180 In lb Adjustable Torque Wrench
Overview
Norbar 9 x 12 mm 20 Nm Female Torque Handle, 180 in lbs
13838
3/8 in. Square 180 In lb Adjustable Torque Wrench by Norbar. Available to order from Flexible Assembly.com. Do you see this Adjustable Torque Wrench online at a lower price? Contact Customer Service to price match!
The Norbar TT Fixed Head Wrenches have all the same features and benefits of the standard TT range, but have a non-ratcheting fixed head with a square drive that can be positioned for clockwise or anti-clockwise operation.
Features:- Accuracy: ±3% of reading exceeds all international standards for torque wrenches. Each wrench is supplied with a traceable calibration certificate.

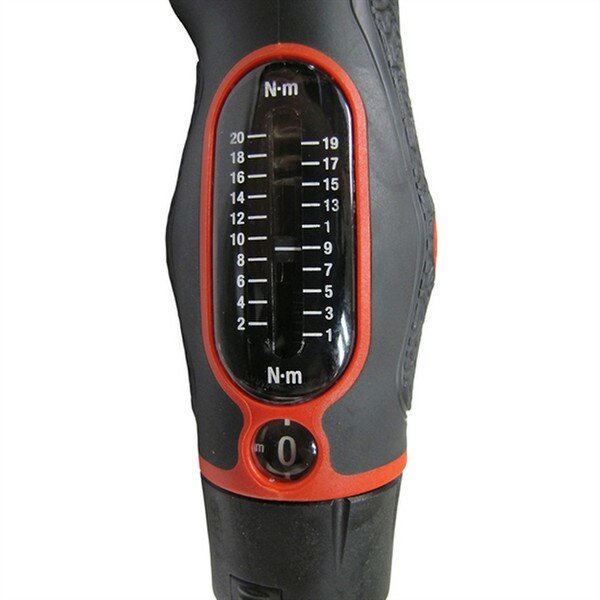

- Micrometer Scale for simple and error free setting. (On dual scale wrenches, the micrometer increment applies to the Nm scale.)
- Quick and Light Adjustment: adjustment over the entire scale can quickly be achieved and with minimal effort in approximately ten complete turns (exact number varies by model).
- Comfortable, Durable Handle: the handle is constructed using two materials; a base material for strength overlaid with a soft feel grip for comfort and slip resistance.
- The handle material and lens resist chemicals in common usage in the automotive, aviation and industrial environments.
Technical Specifications
Model
TTf15
Type
Adjustable Torque Wrench
Drive size
3/8'' square
Manufacturer
Norbar
Length (mm)
224
SKU
13838
Min Torque (In Lb)
35
Max Torque (In Lb)
180
Square Drive
3/8
Weight (lbs)
0.88
Series
TTf
Drive Type
3/8 in. Square
Weight (kg)
0.4
Accuracy
±
Technical Documents
- Norbar 3/8 in. Square 180 In lb Adjustable Torque Wrench Parts Breakdown (PDF)
- Norbar 9 x 12 mm 20 Nm Female Torque Handle, 180 in lbs Operator's Manual (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
