3/8 in. Square 50 Nm Electronic Torque Wrench, 915 MHz
NORTRONIC ELECTRONIC TORQUE WRENCHES
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
Details
Product information
Overview
Norbar 3/8 in. Square 50 Nm Electronic Torque Wrench, 915 MHz
43504
3/8 in. Square 50 Nm Electronic Torque Wrench, 915 MHz by Norbar. Available to order from Flexible Assembly.com. Do you see this Electronic Torque Wrench online at a lower price? Contact Customer Service to price match!

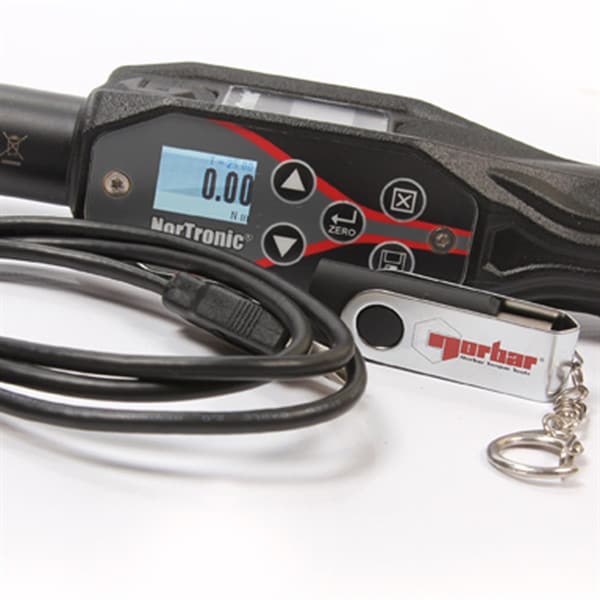

In order to communicate wirelessly between a NorTronic and a PC it is necessary to purchase the appropriate USB Wireless Adaptor. This is sold separately because each adaptor can handle up to eight NorTronic wrenches.
There are two communication frequency versions of the NorTronic because different countries operate different licence free radio transmission bands. The two frequencies that we offer cover most areas of the world. A PDF has been attached to each NorTronic Electronic Torque Wrench, to reference the frequencies accross the world. Please use this map we have provided as a guide to the appropriate frequency to buy however, it is your responsibility to ensure that local laws are complied with.
Features:
- Torque calibration in both Clockwise and Anti-clockwise direction
- Ability to have up to 15 linked or non-linked targets on the tool at any one time
- Ability to set a Torque, Angle and Final Torque Target
- Directly display, save and send the output Torque of a HT (Hand Torque) gearbox when used in conjunction with a NorTronic
- Send up to 15 sequential or non-sequential targets to a NorTronic Tool
- Real time graph creation from a USB connected tool
- Create a report from stored results
- ASCII mode added for interfacing the tool to third party software (for USB and wireless)
- Supplied with traceable certificate for torque and angle calibration
- Test results are time and date stamped for traceability
- Two full colour OLED displays positioned at 90 degrees for great visibility
- Colour indicator on display changes when target torque/angle has been reached
- Audible and vibration feedback when set target of torque/angle has been reached
- Torque and angle readings can be sent to TDS in real time (or downloaded) via the USB and wireless interfaces
| Technical Specifications | |
|---|---|
| Model | 43504 |
| Type | Electronic Torque Wrench |
| Drive size | 3/8'' square |
| Manufacturer | Norbar |
| Length (mm) | 468 |
| SKU | NOR43504 |
| Style | Angle Head |
| Min Torque (Nm) | 5 |
| Max Torque (Nm) | 50 |
| Communication | 915 MHz |
| Square Drive | 3/8 |
| Weight (lbs) | 2.65 |
| Series | Nortronic |
| Drive Type | 3/8 in. Square |
| Weight (kg) | 1.2 |
| Accuracy | ±1% |
| MPN | 43504 |
| Features & Benefits | |
| Torque Data System (TDS) software | |
| Accurate and traceable torque and angle control | |
| Two full colour OLED displays positioned at 90° to each other | |
