Norbar18119.B08
PTM-92-4000-B | PTM-92-4000-B STALL 1 IN. SQ DR
The latest extension to the PTM tool range brings the speed advantage to the twin motor handle to higher capacity PneuTorque models.
$8,183.03List $9,441.90
Save $1,258.87Total$8,183.03Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
18119.B08 | PTM-92-4000-B | PTM-92-4000-B STALL 1 IN. SQ DRPTM-92-4000-B
Total$8,183.03
1
Details
Product information
Overview

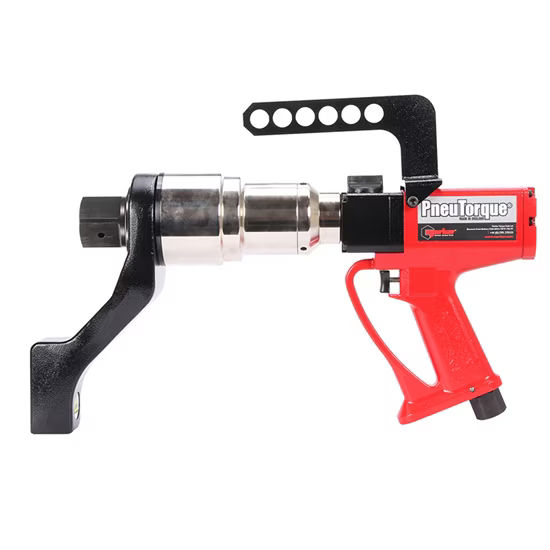

Norbar PTM-92-4000-B STALL 1 IN. SQ DR
18119.B08
Norbar PTM-92-4000-B STALL 1 IN. SQ DR available online to order from Flexible Assembly Systems. Do you see the 18119.B08 by Norbar available for a lower price? Contact Customer Serivce for Price Matching!
| Technical Specifications | |
|---|---|
| Model | PTM-92-4000-B |
| Drive size | 1'' square |
| Manufacturer | Norbar |
| Length (mm) | 424 |
| Min Torque (Ft Lb) | 590 |
| Free Speed (RPM) | 32 |
| SKU | 18119.B08 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 2950 |
| Min Torque (Nm) | 800 |
| Max Torque (Nm) | 4000 |
| Weight (lbs) | 18.7 |
| Series | PTM-92 |
| Weight (kg) | 8.5 |
| MPN | PTM-92-4000-B |
| Features & Benefits | |
| Efficient air motor | |
| Exceptionally low vibration levels | |
| Very quiet operation | |
| Light weight design | |
