FM-36 Series Screw Dispensers
Fixed Quantity Count / External Configuration Type Screw Presenter - Accurately presents a set number of screws
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
9 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Screw Diameter - mm | Price | Qty | |
|---|---|---|---|---|
 FM-3630FM3630 | FM-3630 | 3mm x 25mm Automatic Screw Feeder, 150cc$3,390.20 | 3 | $3,390.20 | 1 | View details |
| FM-3635FM3635 | FM-3635 | 3.5mm x 25mm Automatic Screw Feeder, 150cc$3,390.20 | 3.5 | $3,390.20 | 1 | View details |
| FM-3640FM3640 | FM-3640 | 4mm x 25mm Automatic Screw Feeder, 150cc$3,390.20 | 4 | $3,390.20 | 1 | View details |
| FM-3650FM3650 | FM-3650 | 5mm x 25mm Automatic Screw Feeder, 150cc$3,390.20 | 5 | $3,390.20 | 1 | View details |
 FME-3630FME-3630 | 3mm x 25mm Automatic Screw Feeder, 150cc$6,221.60 | 3 | $6,221.60 | 1 | View details |
| FME-3635FME-3635 | 3.5mm x 25mm Automatic Screw Feeder, 150cc$6,221.60 | 3.5 | $6,221.60 | 1 | View details |
| FME-3640FME-3640 | 4mm x 25mm Automatic Screw Feeder, 150cc$6,221.60 | 4 | $6,221.60 | 1 | View details |
| FME-3650FME-3650 | 5mm x 25mm Automatic Screw Feeder, 150cc$6,221.60 | 5 | $6,221.60 | 1 | View details |
| FME-3660FME-3660 | 6mm x 25mm Automatic Screw Feeder, 150cc$6,221.60 | 6 | $6,221.60 | 1 | View details |
Details
Product information
Overview

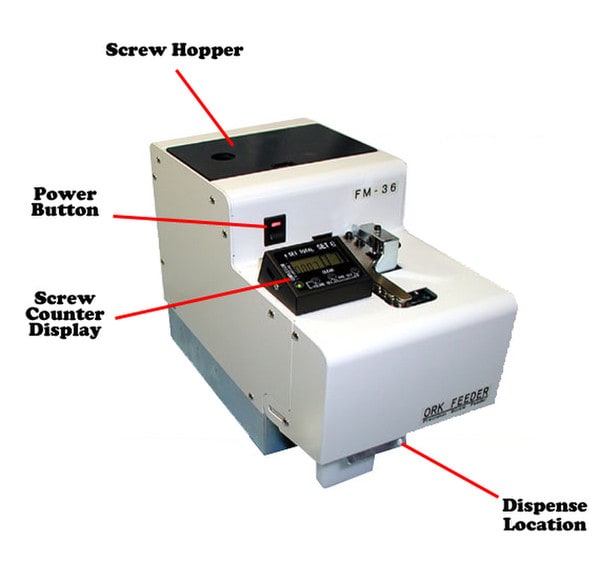

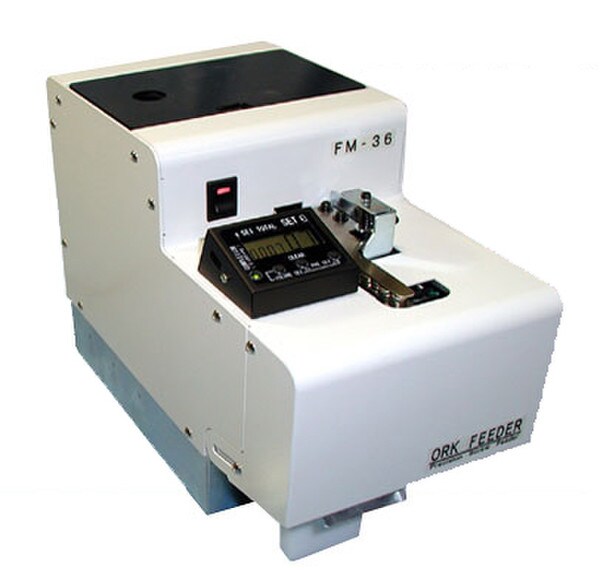

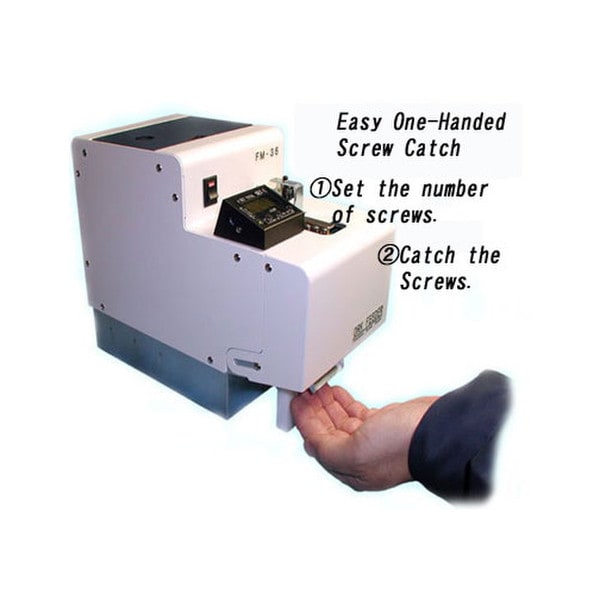

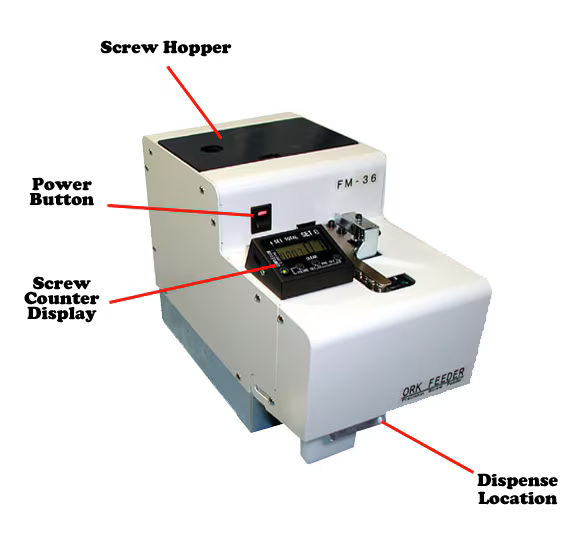

The desired number of screws can be supplied simply by setting the screw counter. Set the number of screws you wish to receive from the screw dispenser; the FM-36 Feeder will give you the exact number of screws. The Screw Dispenser can speed up your manual screw tightening operation.
- 25mm (1.0") Maximum Screw Length

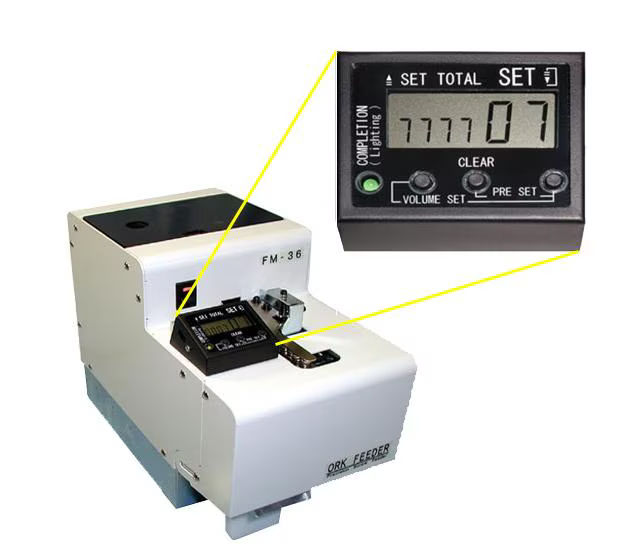

- Settable number of screws: 0 - 99
- Count display: 0 - 9999
- Escape signal terminal
- Memory protection function (in case of power failure, etc.)
- Interchangeable Rails - The Ohtake can handle screws with 5 different diameters simply by changing the rail and disk-type rotary escaper.
- Adaptable to Various Production Lines - The interchangeable rails, compact portable body, and easy installation method makes the FM-36 Feeder adaptable to various production lines.
- Large Screw Storage Capacity - Up to 150 cc of screws can be stored in the FM-36 Feeder.
| Features & Benefits | |
|---|---|
| Batch screw counter supplies precise number of screws | |
| Continuous screw supply form the rail | |
| Compatible with different manufacturing settings |
