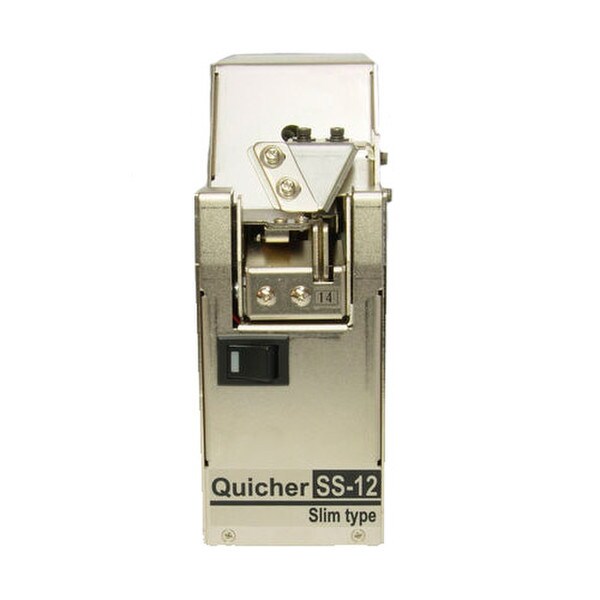

SS Series Screw Presenters
Slim Screw Presenter - Compact size supports a wide range of assembly workflows and fits anywhere
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
8 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Screw Diameter - mm | Price | Qty | |
|---|---|---|---|---|
 SS-1210SS1210 | SS-1210 | 1mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 1 | $1,045.00 | 1 | View details |
| SS-1212SS1212 | SS-1212 | 1.2mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 1.2 | $1,045.00 | 1 | View details |
| SS-1214SS1214 | SS-1214 | 1.4mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 1.4 | $1,045.00 | 1 | View details |
| SS-1217SS1217 | SS-1217 | 1.7mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 1.7 | $1,045.00 | 1 | View details |
| SS-1220SS1220 | SS-1220 | 2mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 2 | $1,045.00 | 1 | View details |
| SS-2323SS2323 | SS-2323 | 2.3mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 2.3 | $1,045.00 | 1 | View details |
| SS-2326SS2326 | SS-2326 | 2.6mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 2.6 | $1,045.00 | 1 | View details |
| SS-2330SS2330 | SS-2330 | 3mm x 16mm Manual Screw Feeder, 40cc$1,045.00 | 3 | $1,045.00 | 1 | View details |
Details
Product information
Overview
An Easy First Step in Adding Automation to Your Assembly Process
This Series Screw Presenters are modular! A simple rail change and readjustment is all that's necessary to change a unit for use with a variety of screw sizes. Change from one fastener to another in less than five minutes
- Presents fastener to operator for easy magnetic or vacuum pickup
- For #0 - #10 screws
- Feed speed of up to 2 screws per second
- Requires use of magnetized bits or a vacuum system
Flexible
- Perfect for contract or dedicated assembly
- Can switch rails in minutes for different screw sizes
- Won't be obsolete when your product changes screw sizes
Productive
- Frees operator's other hand for productive use
- Quick feed rate from oscillating hopper design
- Large hopper holds about 1000 - 1500 fasteners
- Solid design won't move - no tie downs or straps needed
Ergonomic
- Eliminates manual handling of fasteners and shavings
- Keeps workspace clear of dripped fasteners
Reliable
- Modular design for simple repairs
- Less inventory due to interchangeable rails
| Features & Benefits | |
|---|---|
| Compact size suitable for cell-production lines | |
| Compatible for extra-thin screw head dimension | |
| Speed adjustment available | |
| Compatible with different manufacturing settings |
