FANUCP-250iB
6 Axis, 15 kg Paint Robot, 2800 mm reach
This paint robot is the industry's best solution for large and mid-size painting jobs.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
P-250iB | 6 Axis, 15 kg Paint Robot, 2800 mm reachP-250iB
Price on request
Details
Product information
Overview

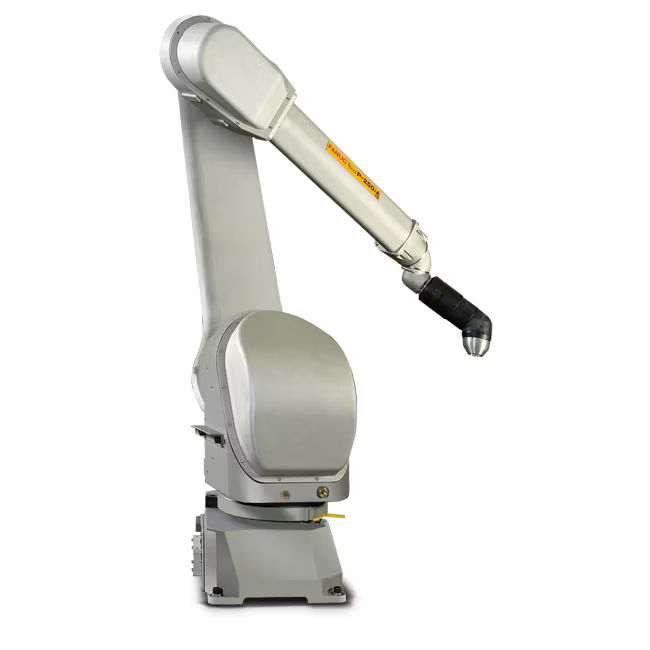

FANUC P-250iB
6 Axis, 15 kg Paint Robot, 2800 mm reach
The FANUC P-250iB is the most flexible and advanced six-axis paint robot available. The P-250iB is adaptable in its mounting configuration to accommodate the most demanding of painting applications. The "open architecture" design allows the use of standard FANUC Robotics integrated process equipment or streamlines easy integration of third party application equipment. The optional on-arm pneumatic enclosure provides the ability to mount FANUC Robotics' approved components crucial to overhaul performance and paint quality within the inner arm.
Process Advantages:
- Integral Process Control, 1K closed-loop flow control and Integrated Canister System automatically maintain programmed flow rates, providing consistent material delivery and high finish quality
- Ability to package process components in the inner-arm in close proximity to the applicator for rapid, accurate and consistent application performance
- Single or dual-arm controller configurations available
- Standard integrated diagnostic and reporting capabilities
- "Flip-Over" capability provides the industry's largest work envelope
Features:
- Floor, wall, ceiling and shelf mount configurations
- Easily configured left hand or right hand arm to maintain symmetry across the booth
- Standard process hose routing and management
- Options for single or dual integrated process axis motors on the outer arm
- Flexible and customizable mounting structures for optimal spraybooth integration
| Technical Specifications | |
|---|---|
| Application | Painting/Coating, Material Removal, Spot Welding, Dispensing |
| Model | P-250iB |
| Manufacturer | FANUC |
| SKU | P-250iB |
| Reach | 2800 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.2 mm |
| Payload | 15 kg |
| Weight (kg) | 530 |
| MPN | P-250iB |
| Features & Benefits | |
| Suitable for a wide range of painting and coating applications, it has a large handling capacity and generous work envelope. | |
| Wide range of features and easy to integrate equipment designed to add flexibility and cover a wide spectrum of painting and coating applications | |
| Production proven hollow wrist and though-arm hose routing support a clean application environment and help to achieve top product quality. | |
| 2800 mm envelope, providing flexibility to maintain precise target distances and gun orientations over the largest of parts and maximise quality | |
| Wide range of features and easy to integrate equipment designed to add flexibility and cover a wide spectrum of painting and coating applications,Production proven hollow wrist and though-arm hose routing support a clean application environment and help to achieve top product quality. | |
| 2800 mm envelope | |
| providing flexibility to maintain precise target distances and gun orientations over the largest of parts and maximise quality | |
