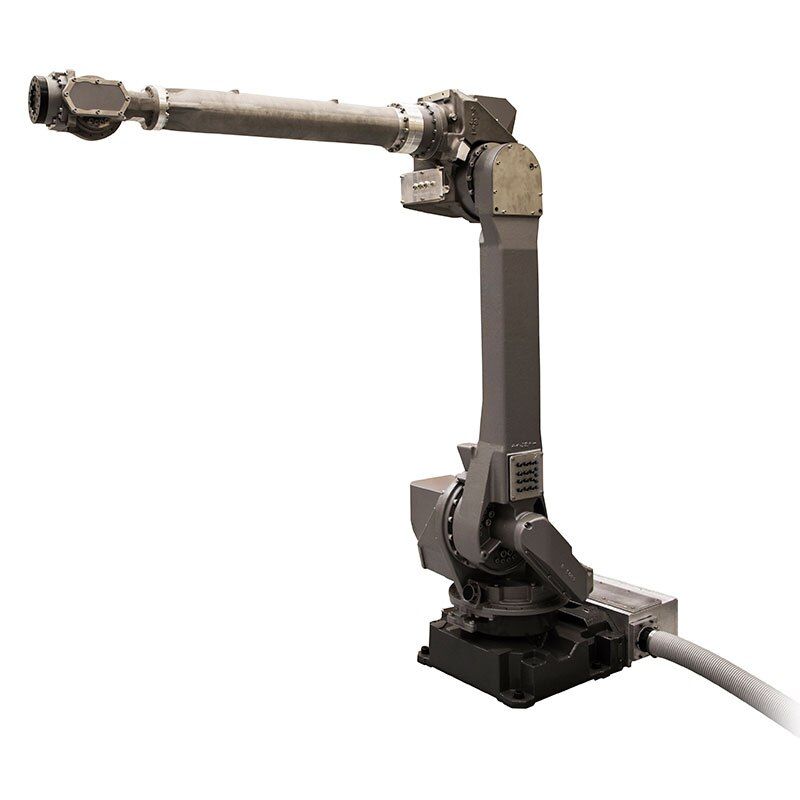

FANUCP-350iA/45
6 Axis, 45 kg Paint Robot, 2606 mm reach
Designed to be flexible and to fulfill a wide range of applications, the P-350iA/45 is a large payload paint robot with a 45 kg wrist capacity.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
P-350iA/45 | 6 Axis, 45 kg Paint Robot, 2606 mm reachP-350iA/45
Price on request
Details
Product information
Overview
FANUC P-350iA/45
6 Axis, 45 kg Paint Robot, 2606 mm reach
The P-350iA/45 is a heavy payload robot Class 1/Division 1 rated robot with a wrist payload of 45 kg.
The P-350iA/45 is designed for flexibility for use in a wide variety of hazaroud applications:
- Paint
- Sealer
- Surface Cleaning and Prep
- Material Handling
- Material Removal
- Inspection
Features:
- Industry's largest payload capacity for a Class 1/Division 1 approved robot
- IP67 Rating for severe dust and liquid protection
- Ability to support EOAT tool changes packages
- Highest Accuracy Class 1/Division 1 rated robot in the industry
- Multi-Axis capability with purged Auxiliary motor boxes
| Technical Specifications | |
|---|---|
| Application | Painting/Coating, Material Removal, Spot Welding, Dispensing |
| Model | P-350iA/45 |
| Manufacturer | FANUC |
| SKU | P-350iA/45 |
| Reach | 2606 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.1 mm |
| Payload | 45 kg |
| Weight (kg) | 590 |
| MPN | P-350iA/45 |
| Features & Benefits | |
| Ideal for aerospace applications, the P-350iA boasts the largest payload capacity. | |
| Designed for maximum accuracy across a wide range of painting and dispensing applications and come with numerous features that enable high throughput, optimal quality, and low operating costs | |
| Designed for maximum accuracy across a wide range of painting and dispensing applications and come with numerous features that enable high throughput | |
| optimal quality | |
| and low operating costs | |
