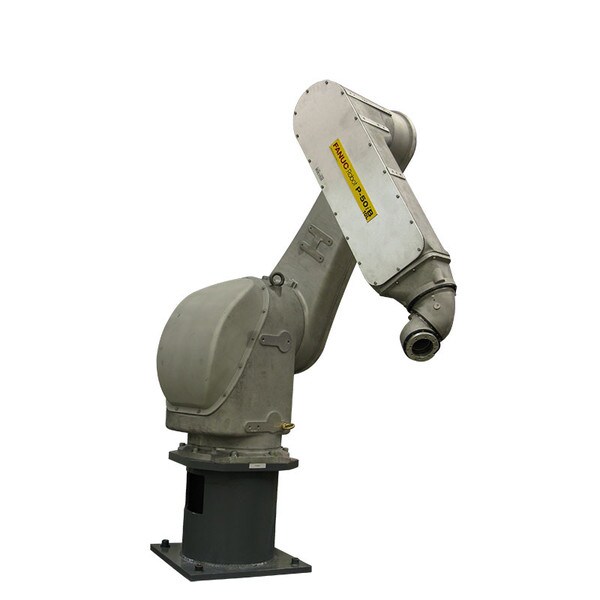

FANUCP-50iB
6 Axis, 15 kg Paint Robot, 1800 mm reach
Ultra compact, this high reach paint robot provides a reliable and precise painting and coating solution for a huge range of industries.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.

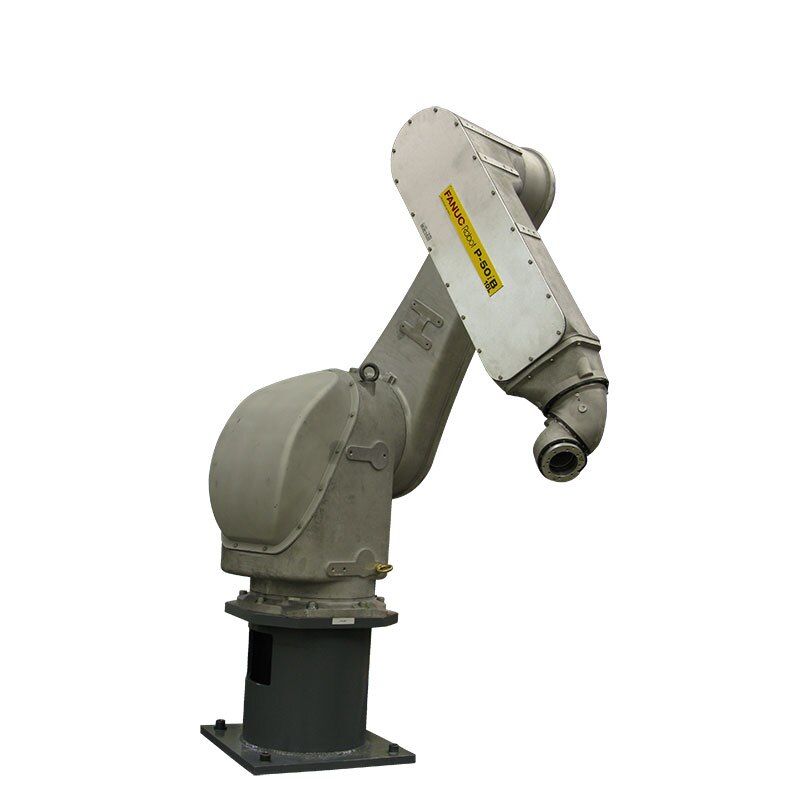

P-50iB | 6 Axis, 15 kg Paint Robot, 1800 mm reachP-50iB
Price on request
Details
Product information
Overview
FANUC P-50iB
6 Axis, 15 kg Paint Robot, 1800 mm reach
Features:
- Easily configured left or right hand arm to maintain symmetry across the booth
- Designed for ease of maintenance and easy access to all critical components
- High arm and wrist payload design supports a variety of applications including rotary atomizers, conventional and electrostatic spray guns and multi-gun configurations
- Ability to package process components in the outer arm in close proximity to the applicator for rapid, accurate and consistent application performance
- 140° hollow wrist to allow for tight process demands
| Technical Specifications | |
|---|---|
| Application | Painting/Coating, Material Removal, Spot Welding, Dispensing |
| Model | P-50iB |
| Manufacturer | FANUC |
| SKU | P-50iB |
| Reach | 1800 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.2 mm |
| Payload | 10 kg |
| Weight (kg) | 364 |
| MPN | P-50iB |
| Features & Benefits | |
| Ideal painting and coating solution for almost any industry | |
| Inner diameter of 68 mm from J4 to J6 arm to achieve top product quality by eliminating contamination from debris falling from exposed paint hoses. | |
| Dedicated and powerful applications software PAINT TOOL available | |
| Ideal painting and coating solution for almost any industry,Inner diameter of 68 mm from J4 to J6 arm to achieve top product quality by eliminating contamination from debris falling from exposed paint hoses. | |
