6 Axis, 5 kg Paint Robot, 704 mm reach

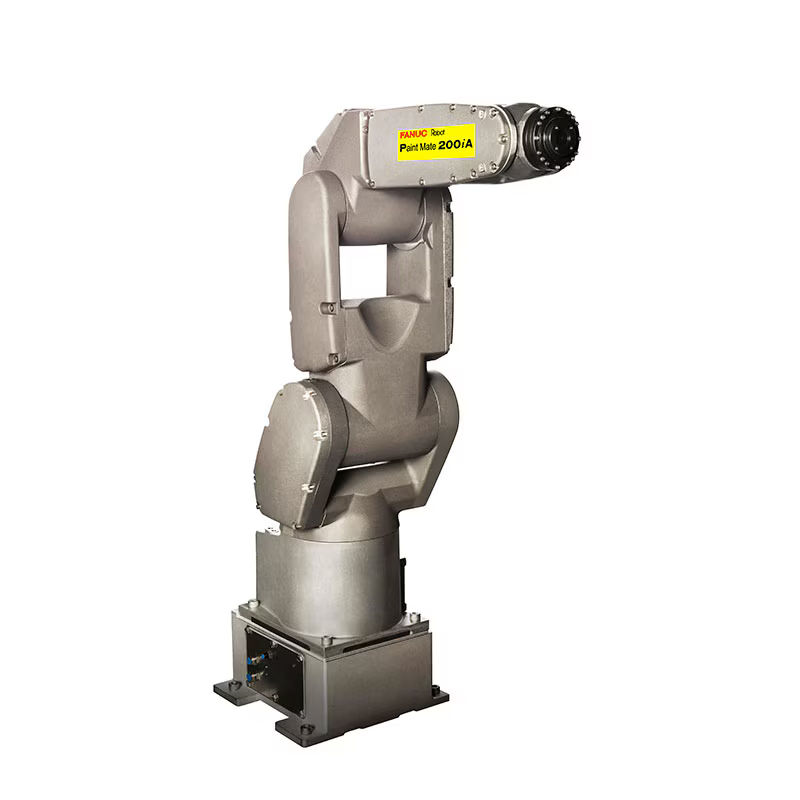

FANUC Paint Mate 200iA

6 Axis, 5 kg Paint Robot, 704 mm reach

FANUC Robotics' Paint Mate robot is a compact, electric servo-driven paint robot with "best in class" performance designed for operation in a hazardous environment. Based on the LR Mate Series, the Paint Mate's speed and dexerity are a perfect fit for hazardous duty applications. The Paint Mate can be used for small parts painting or a material saving alternative to multiple fixed guns.

Applications:

• Painting
• Coating
• Assembly and handling in hazardous environments
• Material removal where hazardous cooling chemicals are present
• Dispensing

Features:

• iPendant™ - a color, internet-ready teach pendant for even easier programmiong and custom cell user interface design
• Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability
• Floor, invert, angle and wall mounting permits versatility for robot location and allows for minimal spray booth size
• Absolute seriel encoders elimiate the need for calibration at power-up
• Standard FANUC purge control
