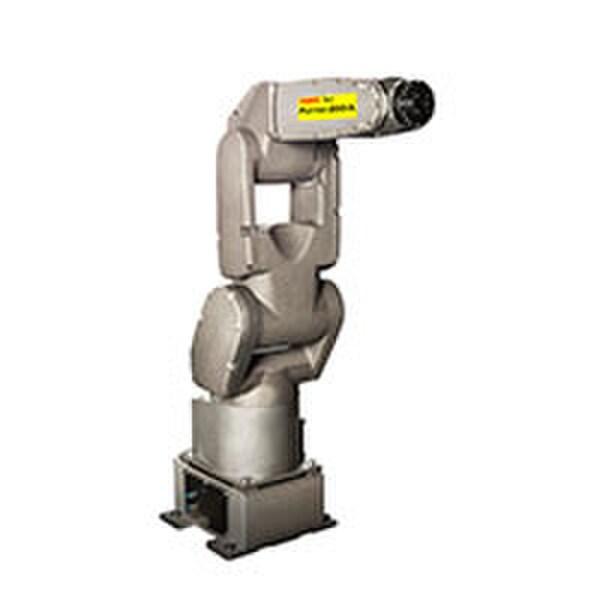

FANUCPaint Mate 200iA/5L
6 Axis, 5 kg Paint Robot, 892 mm reach
The long arm Paint Mate 200iA/5L is a versatile, compact paint robot with an increased maximum reach and 5 kg payload capacity.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Paint Mate 200iA/5L | 6 Axis, 5 kg Paint Robot, 892 mm reachPaint Mate 200iA/5L
Price on request
Details
Product information
Overview

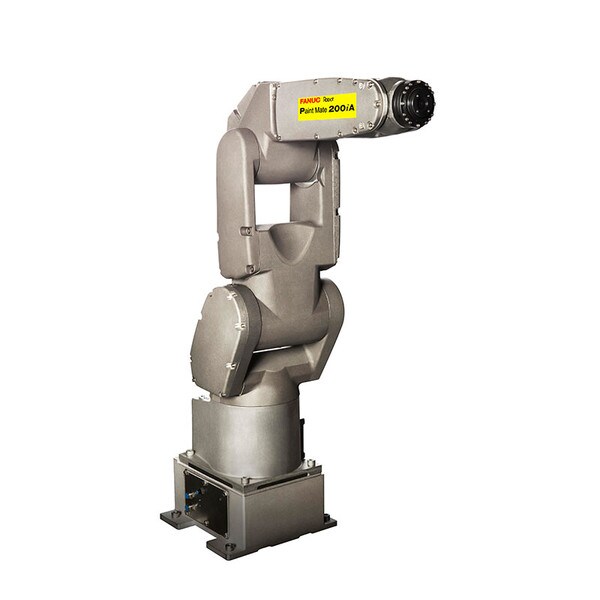

FANUC Paint Mate 200iA/5L
6 Axis, 5 kg Paint Robot, 892 mm reach
FANUC Robotics' Paint Mate robot is a compact, electric servo-driven paint robot with "best in class" performance designed for operation in a hazardous environment. Based on the LR Mate Series, the Paint Mate's speed and dexerity are a perfect fit for hazardous duty applications. The Paint Mate can be used for small parts painting or a material saving alternative to multiple fixed guns.
Applications:
- Painting
- Coating
- Assembly and handling in hazardous environments
- Material removal where hazardous cooling chemicals are present
- Dispensing
Features:
- iPendant™ - a color, internet-ready teach pendant for even easier programmiong and custom cell user interface design
- Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability
- Floor, invert, angle and wall mounting permits versatility for robot location and allows for minimal spray booth size
- Absolute seriel encoders elimiate the need for calibration at power-up
- Standard FANUC purge control
| Technical Specifications | |
|---|---|
| Application | Painting/Coating, Material Removal, Spot Welding, Dispensing |
| Model | Paint Mate 200iA/5L |
| Manufacturer | FANUC |
| SKU | Paint Mate 200iA/5L |
| Reach | 892 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.03 mm |
| Payload | 5 kg |
| Weight (kg) | 37 |
| MPN | Paint Mate 200iA/5L |
| Features & Benefits | |
| Ideal for painting applications, assembly and handling operations requiring increased reach even in hazardous environments. | |
| Optional one or four pneumatic three-way solenoid valves located in the purge cavity for gun triggering capability. | |
| Handling and PaintTool software options available for easy setup and adjusting | |
