11000 Lb Quantum Series Electric Hoist
Quantum QCH Series hoists meet or exceed H3 duty-cycle standards for world-class performance. They are also the only hoist family UL and C-UL listed, with third-party evaluation limiting liability.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Ingersoll Rand QCH500-2ND/D11279

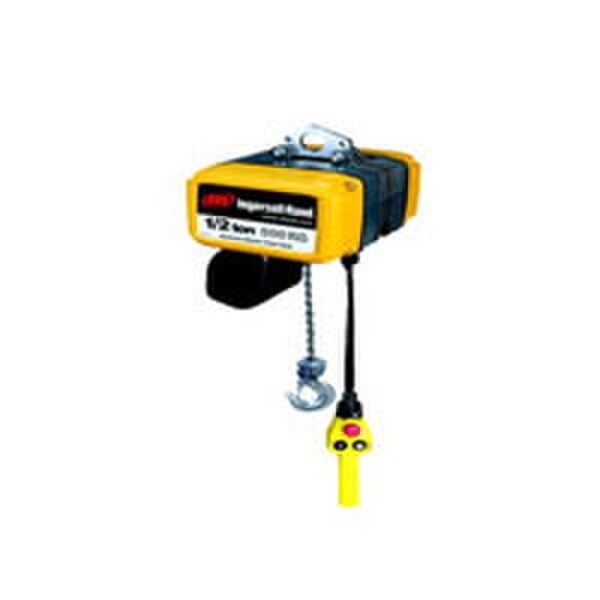

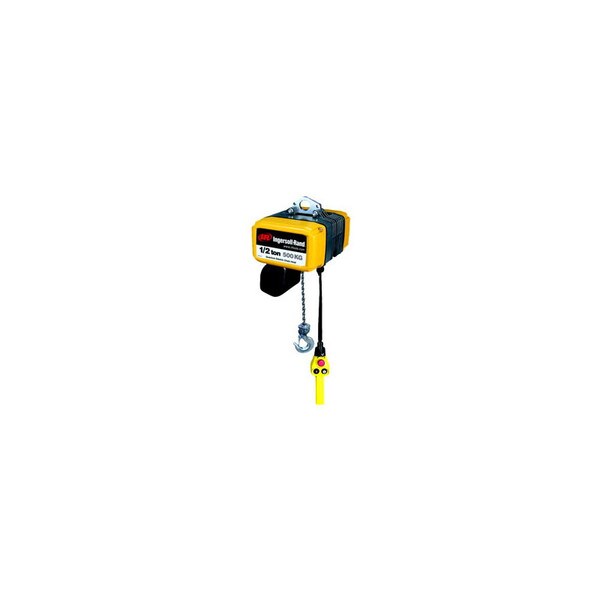

11000 Lb Quantum Series Electric Hoist
Pull Capacity of between 275-11,000 lbs!
The Ingersoll Rand QCH Quantum Series Electric Chain Hoist has bragging rights for being one of the most impressive designs ever manufactured. The QCH series is designed to be focused on safety, reliability, and performance.
Design Features of the QCH Series
- Meets I-R's interpretation of ASME B30.16 specifications and pertinent European FEM standards.
- Universal tread trolley wheels fit tapered or flat flange beams.
- Anti-tip lugs on motorized trolleys.
- Hook, eyebolt, push trolley or motorized trolley suspensions.
Other Features
- New Style Overload Clutch: The overload clutch is factory set to limit Quantum from lifting loads in excess of 150% of rated hoisting capacity.
- Eyebolt suspension: the eyebolt suspension allows the hoist to pivot and align itself to the direction of load pull, reducing stress and wear.
- Chain guide and wheel: This system insures smooth, jam resistant operation, and extends load chain, and chain wheel life.
Why to Buy a Quantum Series Electric Hoist by Ingersoll Rand
- The QCH Series Brake System eliminates the breakage common with fiber discs and the heavier steel springs and DC solenoids they require.
- Adjustable geared limit switches (standard on all models)
Ordering is simple, before calling; download the Quantum Series Technical Document (PDF). Once you have the file downloaded, please review the file to determine what specifications you want your hoist to have. Once ready, call us at (800) 696-7614, and we'll assist you with ordering your Quantum Series Hoist.
| Technical Specifications | |
|---|---|
| Model | QCH500-2ND/D11279 |
| Type | Electric Chain Hoist |
| Manufacturer | Ingersoll Rand |
| Capacity | Lb |
| SKU | QCH500-2ND/D11279 |
| Stock Code | 2 |
| Weight Capacity (Lb) | 11000 |
| Series | QCH |
| Capacity (lbs) | 11000 |
| Chain Falls | 2 |
| Capacity (tons) | 5.5 |
| MPN | QCH500-2ND/D11279 |
| Features & Benefits | |
| Helical / spur gear combination provides smooth movement and quiet, reliable operation | |
| Quantum load chains are precision-formed from alloy steel, case hardened and zinc-plated. | |
| State-of-the-art AC motor brakes with all-steel discs. | |
| totally enclosed non-ventilated (TENV) squirrel cage design | |
| Helical / spur gear combination provides smooth movement and quiet, reliable operation,Quantum load chains are precision-formed from alloy steel, case hardened and zinc-plated. | |
