Ingersoll RandQE8AT065FA5S08

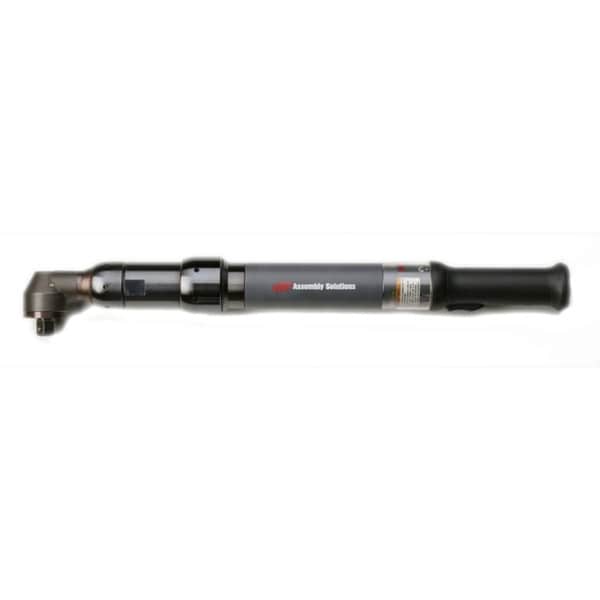

Angle Electric Nutrunner, 65 Nm, 1/2'' Square, Size 5

Durable and with a torque range up to to 65 Nm, QE8 Angle Series wrenches packs a punch in a small, easy-to-use package.

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Documents1 file

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

ProductWeight (lbs)PriceQty
GEA40-C0RD-3M-90GEA40-C0RD-3M-90 | 3 Meter Tool Cable51View details
GEA40-C0RD-3MGEA40-C0RD-3M | 3 Meter Tool Cable21View details

Details

Product information

Overview

Ingersoll Rand Angle Head DC Electric Nutrunner, 65 Nm, 1/2 in. square drive

Angle Head DC Electric Nutrunner, 65 Nm, 1/2 in. square drive, model# QE8AT065FA5S08. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!

QE8AT065FA5S08 by Ingersoll Rand

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

Features

  • ESD-Safe & RoHS compliant
  • Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
  • Highly Configurable Platform - You can select output torque, body style, actuation and spindle type, so you can create the perfect tool for each application.
  • Reliability - Non-contact switches, Heavy Duty gear train and a brushless DC motor are all used to ensure your tools stay in top condition and perform perfectly every time.
  • User Efficiency - Featuring TactAlert, preventative maintenance alarms, LED highlights, a multi-colored light ring, and a push button reverse & indicator light, these wrenches were made with you in mind.

Note: IC12D1A1AWS Controller required

Technical Specifications
ModelQE8AT065FA5S08
TypeElectric Nutrunner
Drive size1/2'' Square
ManufacturerIngersoll Rand
Motor TypeType 8
Length (In)20.28
Min Torque (Ft Lb)4.8
Free Speed (RPM)1200
SKUQE8AT065FA5S08
Start TypeTrigger Start
StyleAngle Head
Max Torque (Ft Lb)47.8
Min Torque (Nm)6.5
Max Torque (Nm)65
ESD CompliantYes
MountingFlanged Gearcase
Square Drive1/2
OutputSize 5
Weight (lbs)6.39
SeriesQE8
Drive Type1/2'' square
MPNQE8AT065FA5S08
Features & Benefits
Closed loop transducerized control provides accuracy and traceability for advanced torque control strategies.
Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
ESD-Safe & RoHS compliant
Built with a brushless DC motor
non-contacting switches and a heavy duty gear train
