6 Axis, 150 kg Multi-Role Intelligent Robot, 2655 mm reach
R-2000iB/150U | 6 Axis, 150 kg Multi-Role Intelligent Robot, 2655 mm reach
A specialist replies within one business day.
Details
Product information
Overview

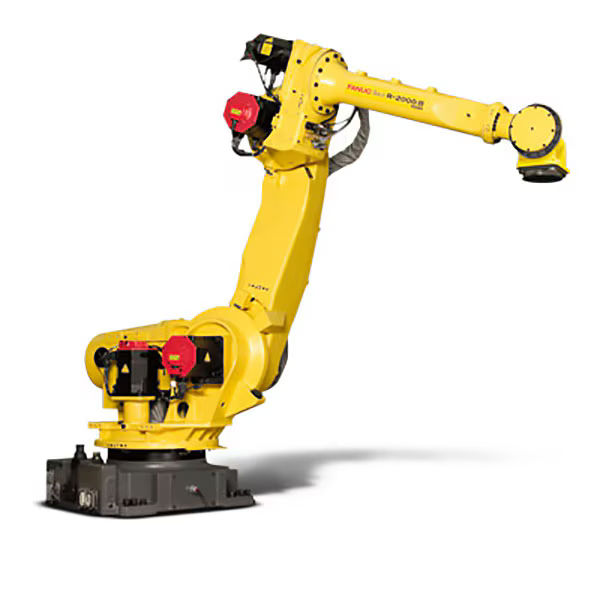

FANUC R-2000iB/150U
6 Axis, 150 kg Multi-Role Intelligent Robot, 2655 mm reach
The FANUC R-2000iB is an intelligent robot for versatile applications. This highly reliable robot with intelligence and network collaboration provides the best cost performance and ease of use for applications with integrated versatile process solutions such as spot welding, material handling and assembly.
The R-2000iB provides a slim and compact body with a simplified, vertical articulated arm, while maintaining the largest motion area and the heaviest payload in its class.
- Compact wrist unit
- Minimuim interference at rear side
- Dense installation of multi-robot
The newly developed robot controller provides enhanced CPU performance. This includes the latest software function and the most up-to-date intelligence and networking features.
- Higher motion performance
- integrated vision
- Bin picking function
- Diagnostics function
| Technical Specifications | |
|---|---|
| Application | Assembly, Machining/Loading, Material Removal, Dispensing, Part Transfer |
| Model | R-2000iB/150U |
| Manufacturer | FANUC |
| SKU | R-2000iB/150U |
| Reach | 2655 mm |
| Installation | Inverted |
| No. of Axis | 6 |
| Repeatability | 0.2 mm |
| Payload | 150 kg |
| Weight (kg) | 1070 |
| MPN | R-2000iB/150U |
