8 Inch Aluminum Runway

Knight Industries RAD7510

8 Inch Aluminum Runway

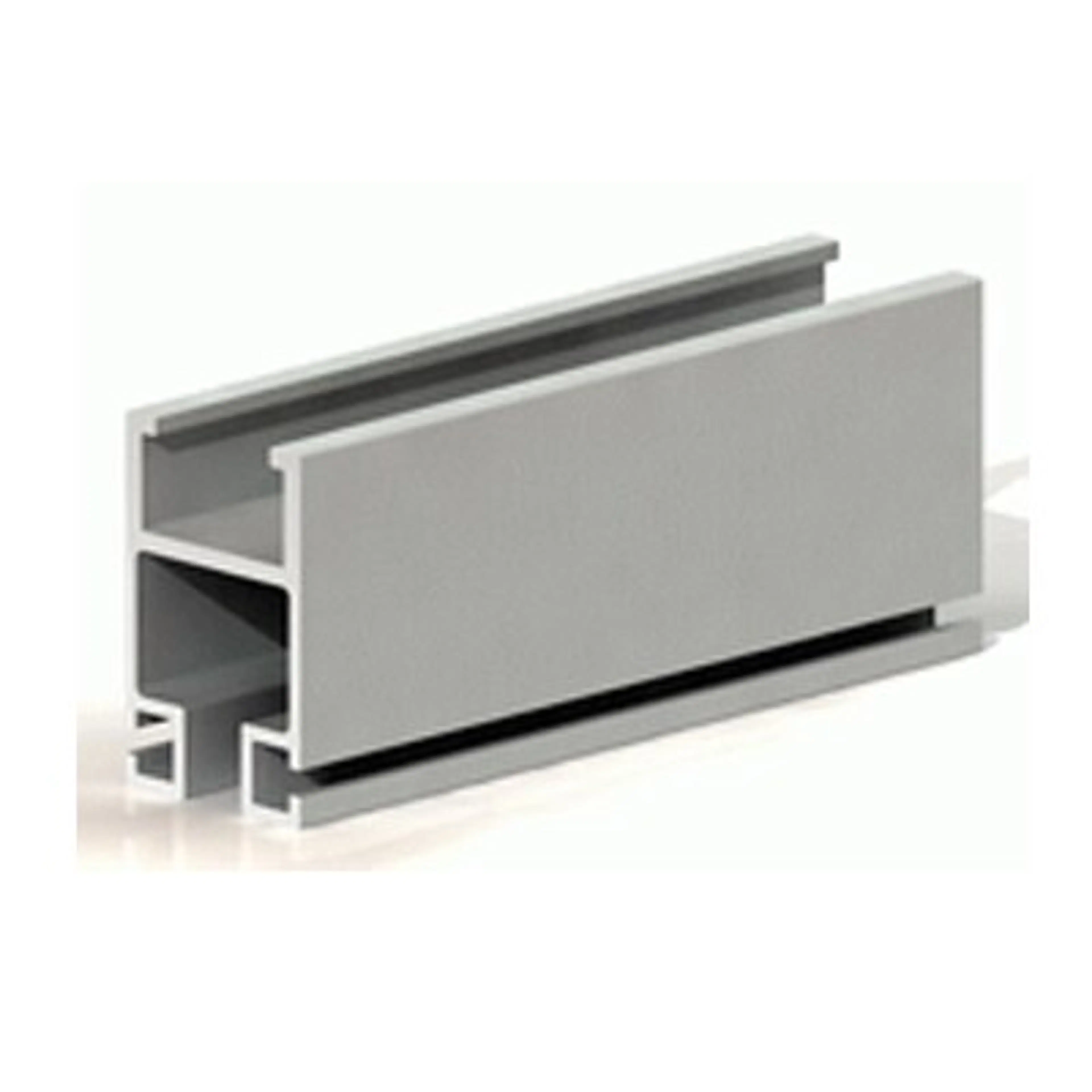

Enclosed aluminum rail combined with nylon trolley wheels provides the lowest friction available in the industry.

• Overhead or floor mounted configurations.
• Supports all RAD7510 Series load trolleys, end trucks, and load hangers.
• Used to transfer loads in the X and Y directions.
• Up to 5,500 lbs [2,495 kg] Maximum Capacity
• Versatile tool rail channel is designed to support load hangers and mount various plant accessories.
• Accessories can be positioned along the rail, no welding required.
• Product Weight: 8.3 lbs / ft. [12.02 kg / m]
• Mechanical Properties: ASTM B221 6005-T5 Aluminum
• Weld Free Splice
• Available rail lengths up to 30 ft. [9.1 m] without splices.
• Available Integrated or Add-On Access Gates
• Pre-Assembled Accessories
• Certifications and Drawings Available
• Load trolleys and end trucks are designed for cantilevered and direct load applications.
• All load hangers and end trucks are designed to prevent binding of bridges and runways.
• Various load hanger types
