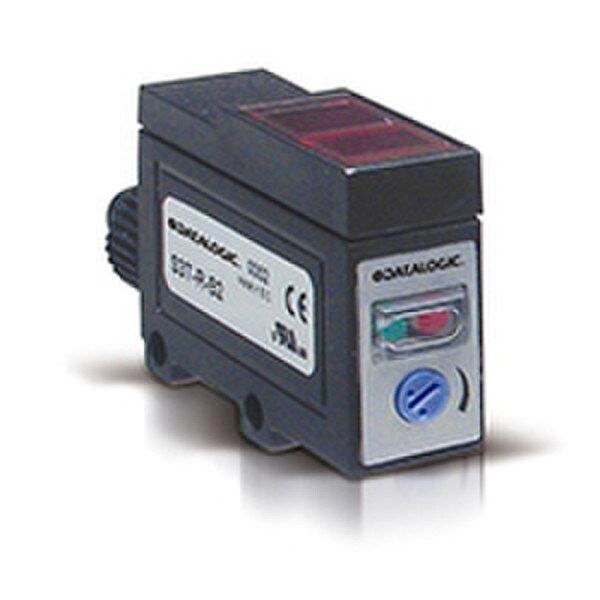

DatalogicS936620001
S3-R-D12 | S3 Mini Square Photoelectric Sensor, Fixed Focus Plastic Radial Npn/Pnp Out Cable
The miniature S3 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available in radial or axial version with trimmer adjustment, M8 4-pole or 2m cable connection.
$112.97List $125.52
Save $12.55Total$112.97Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
S936620001 | S3-R-D12 | S3 Mini Square Photoelectric Sensor, Fixed Focus Plastic Radial Npn/Pnp Out CableS3-R-D12
Total$112.97
1
Details
Product information
Overview
Datalogic S3-R-D12 / S936620001
S3 Mini Square Photoelectric Sensor, Fixed Focus Plastic Radial Npn/Pnp Out Cable
The miniature S3 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available in radial or axial version with trimmer adjustment, M8 4-pole or 2m cable connection.
Features:
- Basic line: suitable for the main industrial applications
- Radial or axial optic: adaptability to the mechanical part of the plant
- Cable or M8 4-pole connection: flexible connection system to meet customer applications
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Operating Modes | DARK-LIGHT configurable |
| Model | S3-R-D12 |
| Optic Function | Fixed Focus |
| Emission | LED |
| Type | Photoelectric Sensor |
| Manufacturer | Datalogic |
| Power consumption (W) | 0.03 |
| SKU | S936620001 |
| Power supply | 10 - 30 VDC |
| Connection | Pigtail |
| Output | NPN-PNP |
| Operating Distance | 15 mm |
| Optics | lateral |
| Series | S3 |
| Housing | Plastic |
| Wavelength | 660 nm |
| MPN | S3-R-D12 |
