S300-PA-1-B01-RX | Maxi Polarized Retroreflective Advanced Multivoltage Photoelectric Sensor, Relay, Sensitivity trimmer and D/L dip-switch
The S300 PA series of advanced MAXI photoelectric sensors represents the most suitable solution for standard applications thanks to it’s excellent cost/performance ratio. The new series offers a wide range of models and functions in order to guarantee easy use and installation.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

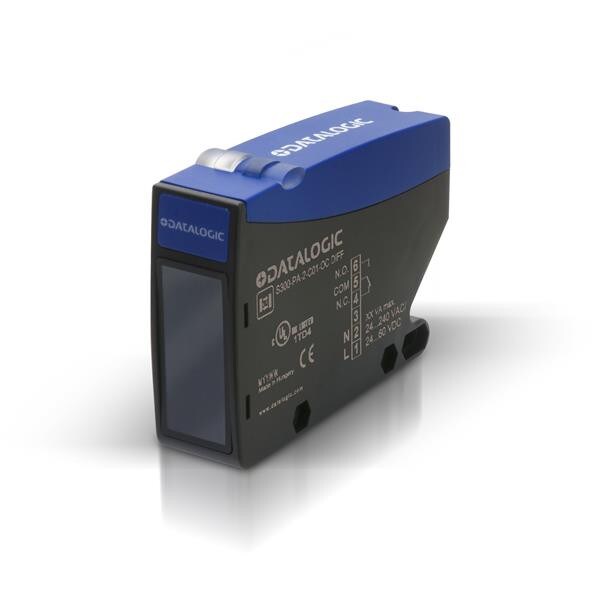

Datalogic S300-PA-1-B01-RX / 951451520
S300 Maxi Photoelectric Sensor, Reflex Polarized Plastic Axial Ac Relay Out No/Nc Terminal Block
The S300 PA series of advanced MAXI photoelectric sensors represents the most suitable solution for standard applications thanks to it?Æs excellent cost/performance ratio. The new series offers a wide range of models and functions in order to guarantee easy use and installation.
The new series presents 5 different models with through beam optical function up to 50m, retroreflex up to 15m, polarized retroreflex up to 10m, diffused proximity at 2m and background suppression at 2m. All the models are available both Vdc from 12 to 30V and Vac/Vdc free-voltage from 24 to 240V versions.
Features:
- Excellent optical performances
- Sturdy plastic housing with IP67 mechanical protection
- Wide range of operating temperatures ranging from -25 to 55??C
- Timing function from 0.6-16 s ON-delay, OFF delay ONE SHOT
- Terminal block for both Vdc and Vac/Vdc free voltage versions
- Distance trimmer clutch for mechanical background suppression models
Applications:
- Automatic machines
- Transportation lines
- Wood working machines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Sensing Principle | Polarized Retroreflective |
| Nominal Sensing Distance | 10 m |
| Sensitivity Adjustment | Trimmer |
| Light Emission | Red LED (660 nm) |
| Optic Position | Axial |
| Output Type | Relay SPDT |
| Load Current | 3A |
| Switching Frequency | 20 Hz |
| Response Time | 25 ms |
| Operating Voltage | 24...240 VAC/VDC |
| No-Load Supply Current | 3VA |
| Output Voltage Drop | 2.4 V |
| Timing Function | 0.6-16 s (ON delay, OFF delay, ONE SHOT) |
| LED Indicators | Yellow (Output State), Green (Stability) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| External Light Immunity | According to EN 60947-5-2 : 2020 |
| Housing Style | Cubic |
| Dimensions | 25 x 70 x 100 mm |
| Housing Material | PBT Fiber Glass reinforced |
| Lens Material | PMMA |
| Connection Type | Terminal block |
| Mechanical Protection | IP67 |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Approvals | CE, cULus |
| MPN | S300-PA-1-B01-RX |
