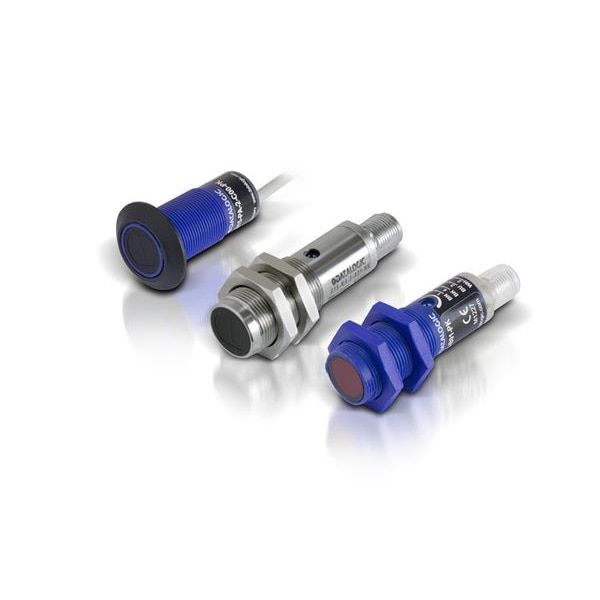

S300-PR-1-G00-EX | Maxi Advanced Multivoltage Photoelectric Sensor, Through beam emitter, Emission power regulation trimmer
The advanced line of S300 maxi photoelectric sensors is the most suitable solution for critical applications thanks to the excellent performances and resistance to the harsh use conditions. The new series offers a wide range of models and optical functions, able to meet the most demanding customer needs.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic S300-PR-1-G00-EX / 951451300
S300 Maxi Photoelectric Sensor, Emitter Plastic Axial Ac
The advanced line of S300 maxi photoelectric sensors is the most suitable solution for critical applications thanks to the excellent performances and resistance to the harsh use conditions. The new series offers a wide range of models and optical functions, able to meet the most demanding customer needs.
The new S300 series is available in 4 different models with through beam optical function up to 60m, polarized retroreflex at 20m, diffused proximity at 3m and background suppression at 2.5m. All models are available with both Vdc from 10 to 30V and Vac/Vdc free-voltage from 24 to 240V versions, also with timing function version and defogging system.
Features:
- Simple and complete User Interface for timing functions: easy and fast setting
- Swiveling connector block: to improve installation capability and to adapt the sensor to the mechanical parts of the machine
- Sensor housing in only one structure with fiber loading: to improve housing toughness and guarantee plant reliability
- Excellent operating distance: to guarantee high application flexibility
- ALARM output and TEST input: to improve both the reliability and process production of the plant avoiding to stop the plant
- Defogging system: to avoid lens condensation and to improve both the reliability and process production of the plant
Applications:
- Automatic machines
- Transportation lines
- Wood working machines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 60m |
| Sensitivity Adjustment | n/a |
| Principle | Through beam emitter |
| Description | Large case vertical mount |
| Optic Position | Radial 90° |
| Functions | Through beam emitter |
| Output Type | n/a |
| Switching Frequency | 25Hz |
| Response Time | n/a |
| Operating Voltage | 24...240 VAC |
| No-Load Supply Current | 3VA |
| Load Current | 3A |
| Output Voltage Drop | 2.4V |
| LED Indicators | Green (PowerON) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | Infrared LED |
| Interference to External Light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | 25x85x70 |
| Housing Material | PBT Fiber Glass reinforced |
| Connection | Terminal block |
| Lens Material | PMMA |
| Storage Temperature | -40°C to +70°C |
| Material | Plastic - PBT / PC |
| Housing Style | Cubic |
| Approvals | CE, cULus |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -40°C to +55°C |
| Mechanical Protection | IP67 |
| MPN | S300-PR-1-G00-EX |
