S300-PR-1-M01-RX | Advanced Multivoltage Photoelectric Sensor with Background suppression, Relay, Sensitivity and D/L trimmers
The advanced line of S300 maxi photoelectric sensors is the most suitable solution for critical applications thanks to the excellent performances and resistance to the harsh use conditions. The new series offers a wide range of models and optical functions, able to meet the most demanding customer needs.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

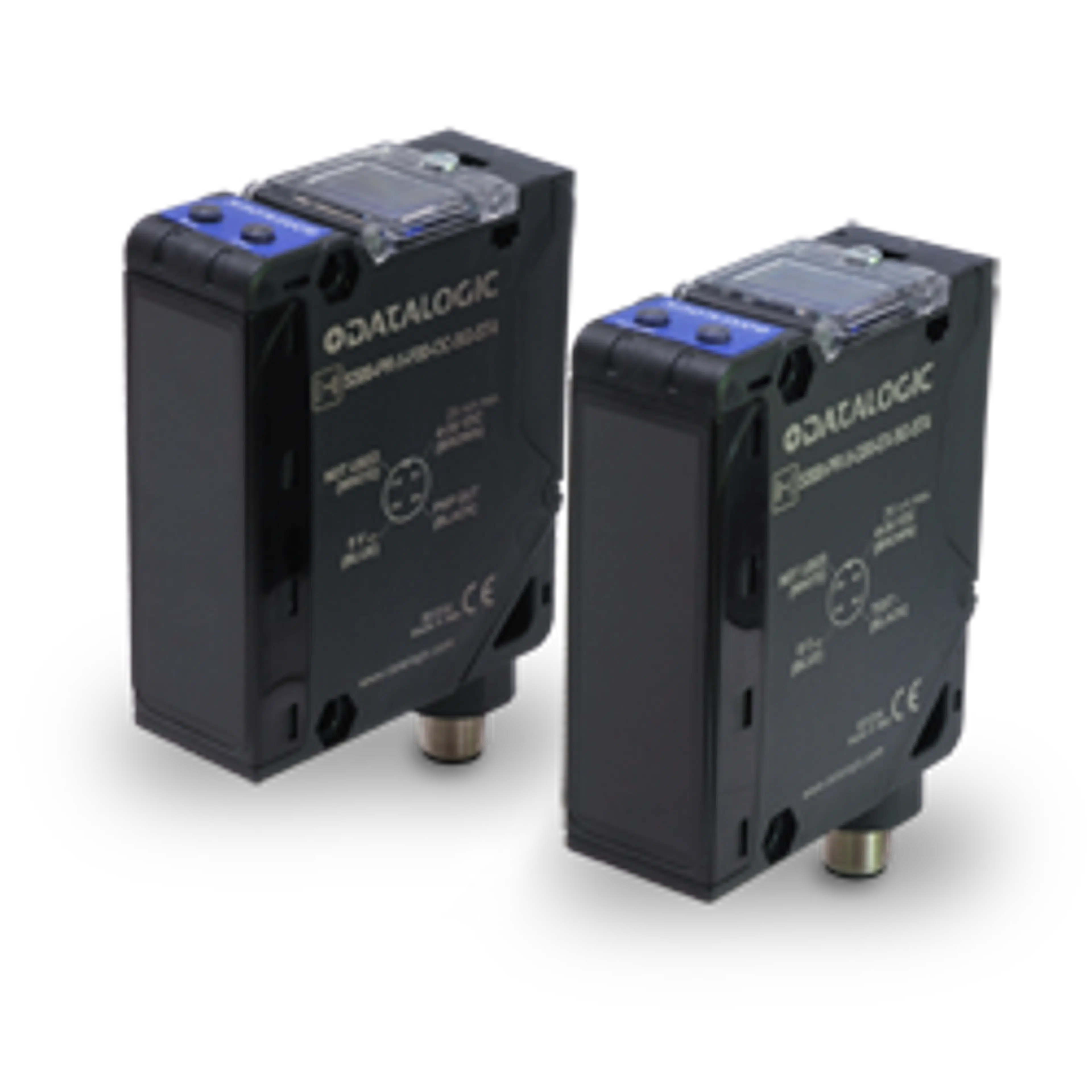

Datalogic S300-PR-1-M01-RX / 951451180
S300 Maxi Photoelectric Sensor, Bgs Plastic Axial Ac Relay Out No/Nc Terminal Block
The advanced line of S300 maxi photoelectric sensors is the most suitable solution for critical applications thanks to the excellent performances and resistance to the harsh use conditions. The new series offers a wide range of models and optical functions, able to meet the most demanding customer needs.
The new S300 series is available in 4 different models with through beam optical function up to 60m, polarized retroreflex at 20m, diffused proximity at 3m and background suppression at 2.5m. All models are available with both Vdc from 10 to 30V and Vac/Vdc free-voltage from 24 to 240V versions, also with timing function version and defogging system.
Features:
- Simple and complete User Interface for timing functions: easy and fast setting
- Swiveling connector block: to improve installation capability and to adapt the sensor to the mechanical parts of the machine
- Sensor housing in only one structure with fiber loading: to improve housing toughness and guarantee plant reliability
- Excellent operating distance: to guarantee high application flexibility
- ALARM output and TEST input: to improve both the reliability and process production of the plant avoiding to stop the plant
- Defogging system: to avoid lens condensation and to improve both the reliability and process production of the plant
Applications:
- Automatic machines
- Transportation lines
- Wood working machines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 2.5 m |
| Sensing Principle | Background suppression |
| Sensitivity Adjustment | Trimmer |
| Optic Position | Radial 90° |
| Special Functions | Defogging system, Double independent timing functions (On-Delay, Off-Delay, ONE SHOT) |
| Output Type | Relay SPDT |
| Switching Frequency | 25 Hz |
| Response Time | 20 ms |
| Operating Voltage | 24 - 240 VAC |
| No-Load Supply Current | 3 VA |
| Load Current | 3 A |
| Output Voltage Drop | 2.4 V |
| LED Indicators | Yellow (Output State), Green (Stability) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Emission | Infrared LED |
| Interference to External Light | According to EN 60947-5-2:2020 |
| Insulation Resistance | >20 MΩ @ 500 VDC, between electronics and housing |
| Dielectric Strength | 500 VAC for 1 min, between electronics and housing |
| Dimensions | 25 x 85 x 70 mm |
| Housing Style | Cubic |
| Housing Material | PBT Fiber Glass reinforced |
| Lens Material | PMMA |
| Connections | Terminal block |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Mechanical Protection | IP67 |
| Approvals | CE, cULus |
| Shocks and Vibrations | 0.5 mm amplitude, 10-55 Hz frequency, for every axis (EN60068-2-6) |
| MPN | S300-PR-1-M01-RX |
