Datalogic950701020

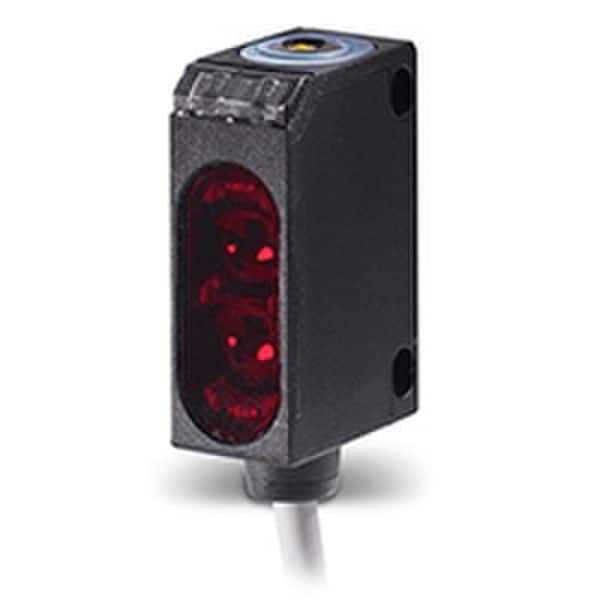

S41-2-D-P | Fixed focus Miniature Basic Photoelectric Sensor, PNP, 2m cable
The miniature S41 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available with or without trimmer adjustment and M8 4-poles or 2m cable connection.
$97.42List $108.24
Save $10.82Total$97.42Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
950701020 | S41-2-D-P | Fixed focus Miniature Basic Photoelectric Sensor, PNP, 2m cableS41-2-D-P
Total$97.42
1
Details
Product information
Overview
Datalogic S41-2-D-P / 950701020
S41 Mini Square Photoelectric Sensor, Fixed Focus Plastic No Trimmer Pnp - 2 Mt Cable
The miniature S41 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available with or without trimmer adjustment and M8 4-poles or 2m cable connection.
Features:
- Performance/price ratio: most cost-effective detection solution
- Basic line: suitable for the main industrial applications
- Cable or M8 4-pole connection: flexible connection system able to meet customer applications
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Operating Modes | LIGHT mode, DARK mode |
| Model | S41-2-D-P |
| Optic Function | Fixed Focus |
| Emission | LED |
| Type | Photoelectric Sensor |
| Manufacturer | Datalogic |
| Power consumption (W) | 0.035 |
| SKU | 950701020 |
| Power supply | 10 - 30 VDC |
| Connection | Pigtail |
| Adjustment Trimmer | Absent |
| Output | PNP |
| Operating Distance | 110 mm |
| Series | S41 |
| Voltage | 2V |
| Housing | Plastic |
| Wavelength | 660 nm |
| MPN | S41-2-D-P |
