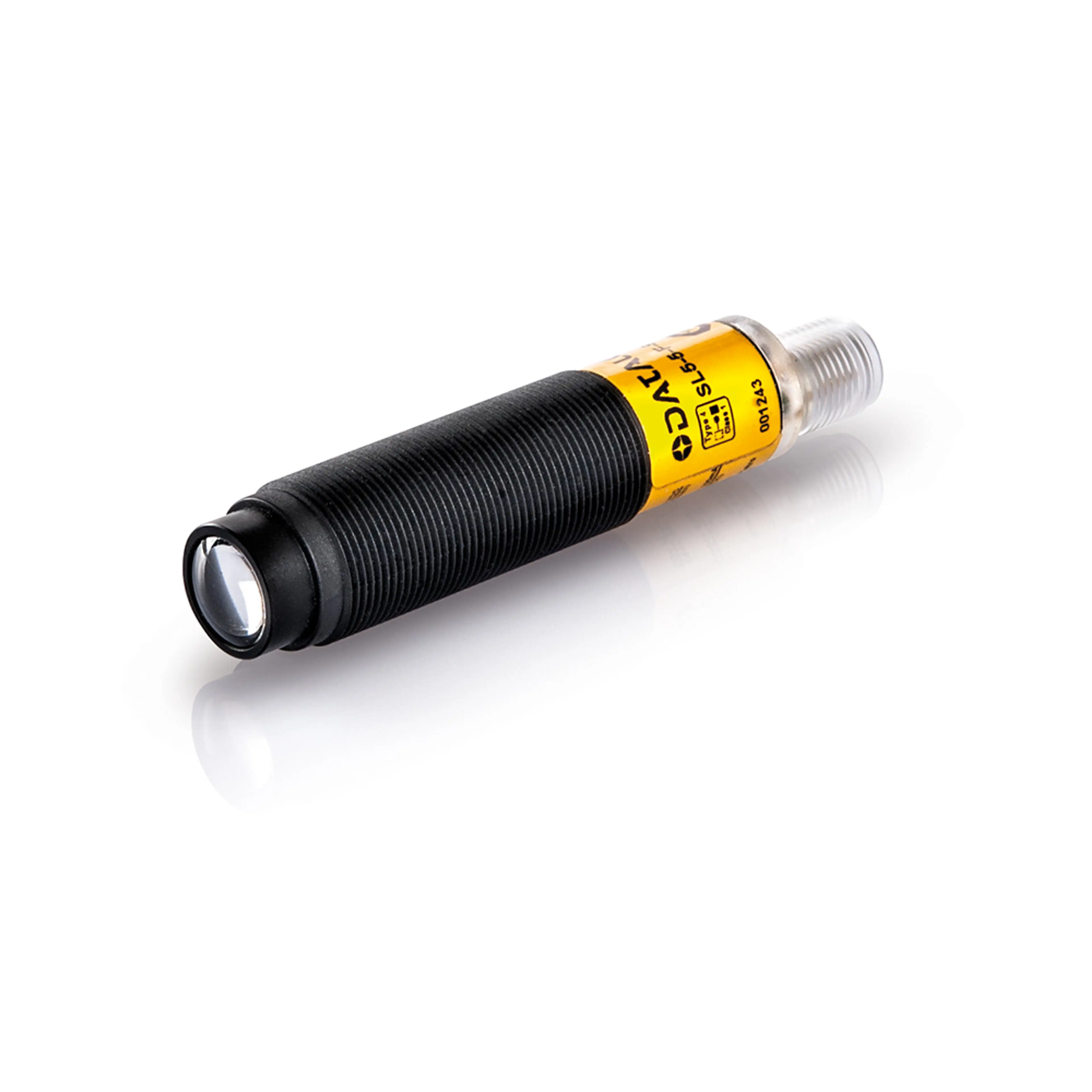

S5-5-F8-92-SG-ST2 | S5 M18 tubular infrared single beam safety sensor type 2 receiver
S300-SG-ST safety sensors have been certified for integration with SG-BWS-T4 units, a Type 2 or Type 4 safety system (depending on the model used).
$52.52List $89.52
Save $37.00Total$52.52Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
952051890 | S5-5-F8-92-SG-ST2 | S5 M18 tubular infrared single beam safety sensor type 2 receiverS5-5-F8-92-SG-ST2
Total$52.52
1
Details
Product information
Overview
Datalogic S5-5-F8-92-SG-ST2 / 952051890
S5 M18 tubular infrared single beam safety sensor type 2 receiver
S300-SG-ST safety sensors have been certified for integration with SG-BWS-T4 units, a Type 2 or Type 4 safety system (depending on the model used).
DEFOGGING models, with heated front glass, are ideal for applications where sudden changes of the temperature can cause condensation. When placed appropriately, they can be used in substitution of body protection safety light curtains, or to guard small size openings.
Features:
- Emitter-receiver photocells with test input on emitter
- Maximum operating range : 8 m for S300-SG-ST2; 50m for S300-SG-ST4
- Rectangular shape ( 25 mm x 85 mm x 70 mm) in plastic
- Effective aperture angle : ??2.5° for Type 4 models, ??5° for Type 2 models (IEC 61496-2)
- Emission: infrared LED
- M12 4-poles connectors
- Operating temperature: -40° - 55°C
Applications:
- Automatic machines
- Robots
- Automatic assembling lines
- Palletizers and Depalletizers
- Protecting perimeter areas
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 0 to 8 m |
| Resolution | Single-beam |
| Controlled Height | Single-beam |
| Sensitivity Adjustment | Trimmer |
| Effective Aperture Angle | 5° |
| Principle | Receiver |
| Required Control Unit | SG-BWS-T4 Series |
| Description | M18 Type 4 Safety Photocell Receiver |
| Functions | Receiver for SG-BWS-T4 |
| Safety Type | Type 2 safety photocell |
| Performance Level (PL) | n/a |
| Probability of Dangerous Failure per Hour (PFHd) | n/a |
| Output Type | PNP |
| Output Function | To be connectred to SG-BWS-T4 Safety Control Unit Series |
| Response Time | 1 ms |
| Operating Voltage | 24 Vdc 15% |
| No-Load Supply Current | 30mA |
| Load Current | 100mA |
| LED Indicators | Yellow (RED) - Green (STABILITY) |
| Short-Circuit Protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | n/a |
| External Light Interference | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | Ø18x77 |
| Housing Material | Plastic - PBT / PMMA |
| Connection | M12 plug |
| Lens Material | PMMA |
| Storage Temperature | -25 to +70°C |
| Vibration Resistance | Width 0.35 mm, frequency 10 to 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shock Resistance | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Approvals | CE, cULus |
| Supplied Accessories | 2 x nuts |
| Housing Style | M18 |
| Operating Temperature | - 25 to +55°C (Without freeze) |
| Mechanical Protection | IP67 |
| MPN | S5-5-F8-92-SG-ST2 |
