Datasensing952021831
S5N-ML-2-C01-NN | Long Distance Photoelectric Sensor, LASER, Axial optic, NPN, 2m cable
952021831 | S5N-ML-2-C01-NN | Long Distance Photoelectric Sensor, LASER, Axial optic, NPN, 2m cable
$108.87List $185.56
Save $76.69Total$108.87Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
952021831 | S5N-ML-2-C01-NN | Long Distance Photoelectric Sensor, LASER, Axial optic, NPN, 2m cableS5N-ML-2-C01-NN
Total$108.87
1
Details
Product information
Overview
Datalogic S5N-ML-2-C01-NN
S5N Tubular Photoelectric Sensor, Proximity Axial Laser Npn No/Nc - 2 Mt Cable

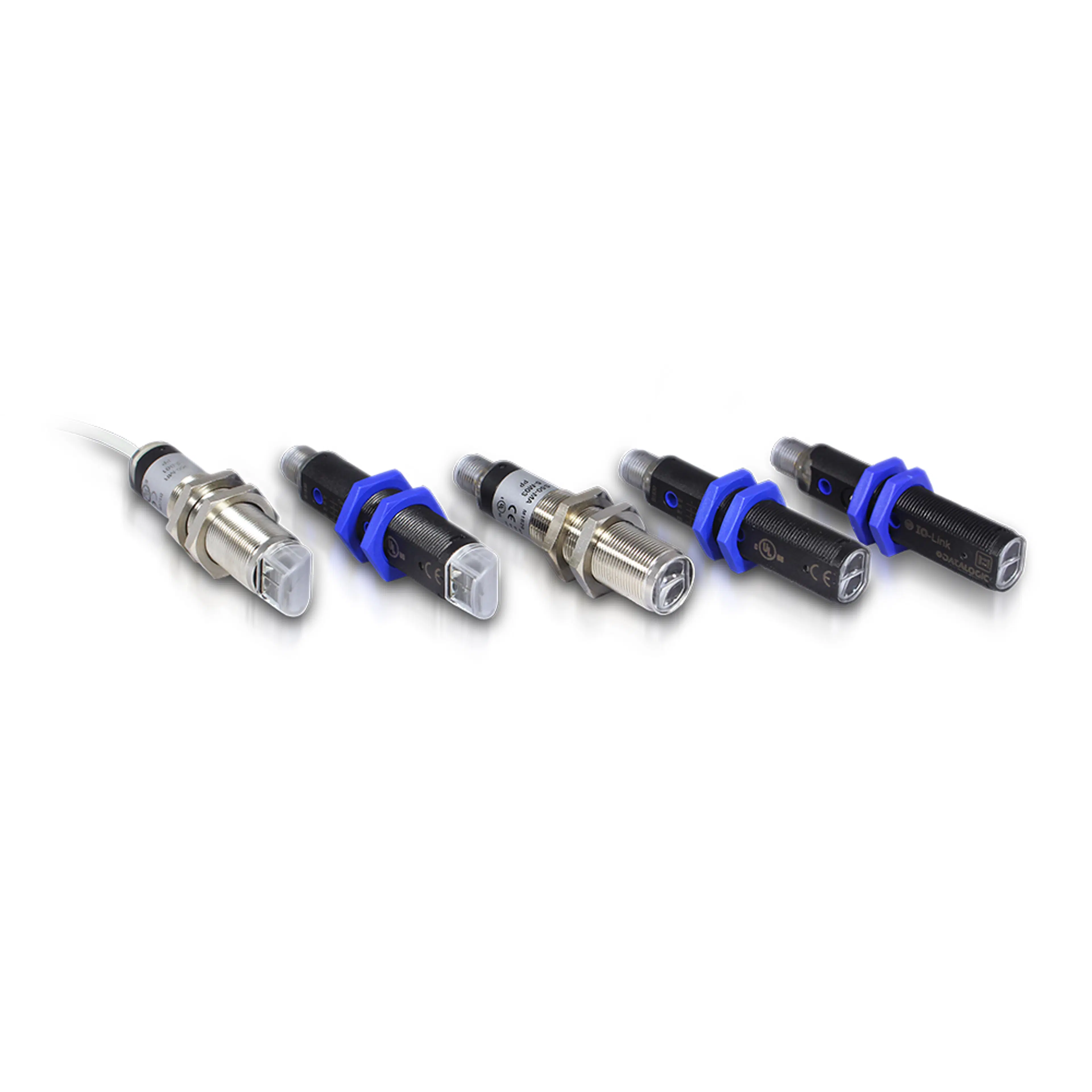

The tubular S5N series is a wide photoelectric sensor line offering through beam, proximity and retroreflex polarized optic functions, available with both LED and laser emission models, radial and axial optics, 2m cable or M12 4-pole connection in plastic housing. Available in DC version offering excellent solutions for all industrial applications, presenting a flat plastic housing with 2 fixing holes to guarantee excellent mounting flexibility.
Features:
- Wide range: suitable for all the industrial applications
- Laser models: high detection repeatability for a precise reading
- Cable or M12 4-pole connection: flexible connection to meet customer applications
- Axial or radial optics: adaptability to the mechanical part of the plant
| Technical Specifications | |
|---|---|
| Sensing Distance | 350mm |
| Sensitivity Adjustment | Trimmer |
| Sensing Principle | Diffuse beam |
| Sensing Notes | white target Kodak 90% 100 x 100mm |
| Description | Tubular M18 - axial optic |
| Optic Position | axial |
| Operating Mode | Diffuse beam |
| Output Type | NPN NO+NC |
| Output Function | NO+NC |
| Switching Frequency | 1.5 kHz |
| Response Time | 333µs |
| Operating Voltage | 10 to 30VDC |
| No-Load Supply Current | 35 mA |
| Maximum Load Current | 100mA |
| Leakage Current | 10μA |
| Output Voltage Drop | 2V@Iload=100mA |
| LED Indicators | yellow OUTPUT LED, green STABILITY LED |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Type | LASER Red |
| Ambient Light Immunity | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Withstand Voltage | 500 Vac 1 min., between electronics and housing |
| Dimensions | M18x67 |
| Housing Material | Metal - Nickel plated brass |
| Connection | 2m cable |
| Lens Material | PMMA |
| Storage Temperature | -25°C to +70°C |
| Housing Diameter | M18 |
| Approvals | CE cULus |
| EMC Compatibility | EN 60947-5-2 |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Supplied Accessories | nuts M18 x 1 |
| Operating Temperature | -10°C to +50°C (Without freeze) |
| IP Rating | IP67 |
| MPN | S5N-ML-2-C01-NN |
