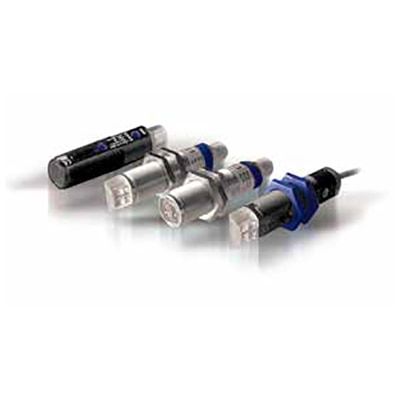

S5N-PA-5-E01-PP | Fiber optic Photoelectric Sensor, LED, Axial optic, PNP, M12 Connector
952001141 | S5N-PA-5-E01-PP | Fiber optic Photoelectric Sensor, LED, Axial optic, PNP, M12 Connector
$49.28List $84.01
Save $34.73Total$49.28Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
952001141 | S5N-PA-5-E01-PP | Fiber optic Photoelectric Sensor, LED, Axial optic, PNP, M12 ConnectorS5N-PA-5-E01-PP
Total$49.28
1
Details
Product information
Overview
Datalolgic 952001141 | S5N-PA-5-E01-PP opt-fibr pnp no-nc M12
| Technical Specifications | |
|---|---|
| Sensing Distance | 30/100mm |
| Sensitivity Adjustment | Trimmer |
| Principle | Optic fiber amplifier |
| Sensing Notes | white target Kodak 90% 100 x 100mm |
| Description | Tubular M18 - axial optic |
| Optic Position | Axial |
| Functions | Optic fiber amplifier |
| Output Type | PNP NO+NC |
| Output Function | NO+NC |
| Switching Frequency | 1kHz |
| Response Time | 500µs |
| Operating Voltage | 10 to 30VDC |
| No-Load Supply Current | 35 mA |
| Load Current | 100mA |
| Leakage Current | 10μA |
| Output Voltage Drop | 2V@Iload=100mA |
| LED Indicators | yellow OUTPUT LED, green STABILITY LED |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red |
| External Light Immunity | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | Ø18x73 mm |
| Housing Material | Plastic - PBT / PMMA |
| Connection | M12 plug |
| Lens Material | PMMA |
| Storage Temperature | -25°C to +70°C |
| Diameter | M18 |
| Approvals | CE cULus |
| EMC Compatibility | EN 60947-5-2 |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Supplied Accessories | nuts M18 x 1 |
| Operating Temperature | -25°C to +55°C (Without freeze) |
| IP Rating | IP67 |
| MPN | S5N-PA-5-E01-PP |
