S5N-PR-5-C01-PP | Long Distance Photoelectric Sensor, LED, Radial optic, PNP, M12 Connector
952001081 | S5N-PR-5-C01-PP | Long Distance Photoelectric Sensor, LED, Radial optic, PNP, M12 Connector
$54.07List $92.17
Save $38.10Total$54.07Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
952001081 | S5N-PR-5-C01-PP | Long Distance Photoelectric Sensor, LED, Radial optic, PNP, M12 ConnectorS5N-PR-5-C01-PP
Total$54.07
1
Details
Product information
Overview
Datalogic S5N-PR-5-C01-PP
S5N Tubular Photoelectric Sensor, Proximity Plastic Radial Pnp No/Nc - M12

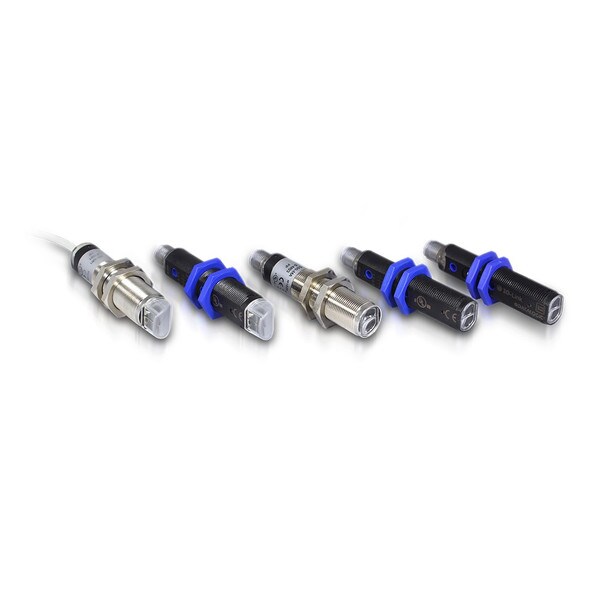

The tubular S5N series is a wide photoelectric sensor line offering through beam, proximity and retroreflex polarized optic functions, available with both LED and laser emission models, radial and axial optics, 2m cable or M12 4-pole connection in plastic housing. Available in DC version offering excellent solutions for all industrial applications, presenting a flat plastic housing with 2 fixing holes to guarantee excellent mounting flexibility.
Features:
- Wide range: suitable for all the industrial applications
- Laser models: high detection repeatability for a precise reading
- Cable or M12 4-pole connection: flexible connection to meet customer applications
- Axial or radial optics: adaptability to the mechanical part of the plant
| Technical Specifications | |
|---|---|
| Sensing Distance | 400 mm |
| Sensing Distance Note | On 100x100mm white target with 90% reflectivity |
| Sensitivity Adjustment | Trimmer |
| Sensing Principle | Diffuse beam |
| Description | Tubular M18 - radial optic |
| Optic Position | Radial 90° |
| Output Type | PNP |
| Output Configuration | NO+NC |
| Switching Frequency | 1 kHz |
| Response Time | 500 µs |
| Supply Voltage | 10-30 VDC |
| No-Load Current | 35 mA |
| Maximum Load Current | 100 mA |
| Leakage Current | 10 µA |
| Output Voltage Drop | 2V @ 100mA |
| Indicators | Yellow (Output), Green (Stability) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Overvoltage Protection | Yes |
| Light Source | Infrared LED |
| Ambient Light Immunity | According to EN 60947-5-2:2020 |
| Insulation Resistance | >20 MΩ @ 500 VDC |
| Dielectric Strength | 500 VAC for 1 min |
| Dimensions | Ø18 x 79 mm |
| Diameter | M18 |
| Housing Material | PBT / PMMA Plastic |
| Lens Material | PMMA |
| Connection | M12 plug |
| Operating Temperature | -25°C to +55°C (non-freezing) |
| Storage Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| Approvals | CE, cULus |
| EMC Compatibility | EN 60947-5-2 |
| Vibration and Shock Resistance | 0.5 mm amplitude, 10-55 Hz frequency, for every axis (EN60068-2-6) |
| Included Accessories | M18 nuts |
| MPN | S5N-PR-5-C01-PP |
