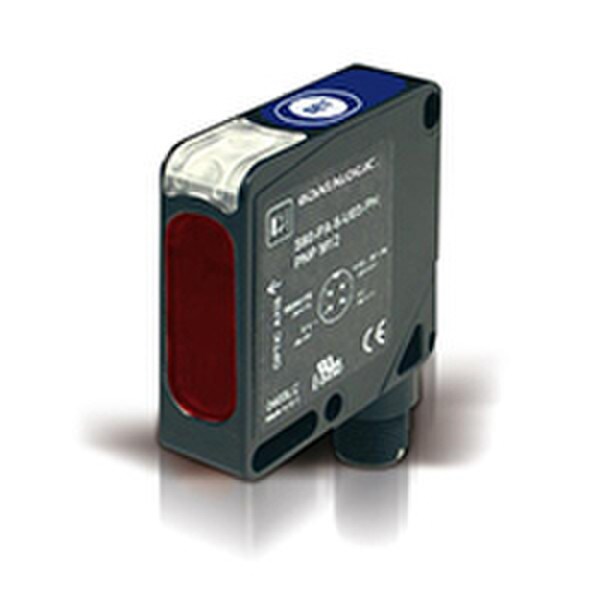

S60-PA-5-T51-PP | Compact Retroreflective Extended Range Photoelectric Sensor, PNP, M12 Connector
The S60 photoelectric sensor series offers all the most advanced optic functions in a standard 50x50x15mm compact housing.
$87.51List $149.17
Save $61.66Total$87.51Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
956201100 | S60-PA-5-T51-PP | Compact Retroreflective Extended Range Photoelectric Sensor, PNP, M12 ConnectorS60-PA-5-T51-PP
Total$87.51
1
Details
Product information
Overview
Datalogic S60-PA-5-T51-PP / 956201100
S60 Midi Square Photoelectric Sensor, Reflex Transparent Plastic Axial Pnp No/Nc - M12
The S60 photoelectric sensor series offers all the most advanced optic functions in a standard 50x50x15mm compact housing.
It presents a complete range of models, including retroreflex with coaxial optics and polarization, background suppression, contrast sensors with white light emission and luminescence sensor with UV emission.
The S60 series offers versions with cable or M12 connection. The latter can be rotated for either straight or right-angle positions. All versions have NPN or PNP output.
Features:
- Wide range: suitable for all the industrial applications
- Laser models: high detection repeatability for a precise reading
- Cable or M12 4-pole connection: flexible connection system to meet customer applications
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 1.5 m |
| Sensitivity Adjustment | Trimmer |
| Sensing Principle | Polarized retroreflective for clear object |
| Housing Style | Compact square case |
| Optic Position | Axial |
| Output Type | PNP NO+NC |
| Output Function | NO+NC |
| Response Time | 500 µs |
| Operating Voltage | 10-30 VDC |
| No-Load Supply Current | 40mA |
| Load Current | 100mA |
| Output Voltage Drop | 2V @ Iload=100mA |
| Maximum Ripple Content | 2 Vpp |
| LED Indicators | Yellow (status output), Green (stability) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Type | Red LED |
| External Light Immunity | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | 15 x 50 x 50 mm |
| Housing Material | ABS/PMMA |
| Connection | M12 plug |
| Lens Material | PMMA |
| Storage Temperature | -25°C to +70°C |
| Housing Shape | Cubic |
| Approvals | CE, cULus |
| Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -25°C to +55°C (Without freeze) |
| IP Rating | IP67 |
| MPN | S60-PA-5-T51-PP |
