S65-PA-5-V09-PPP | Color Sensor, 335us response, PNP, M12 8-pole Connector
The S65-V color sensors offer the best performances for color detection in a compact housing. The S65-V, thanks to a good response time of only 340μs, results to be particularly suitable for automatic packaging applications, quality control and part checking in the process production.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

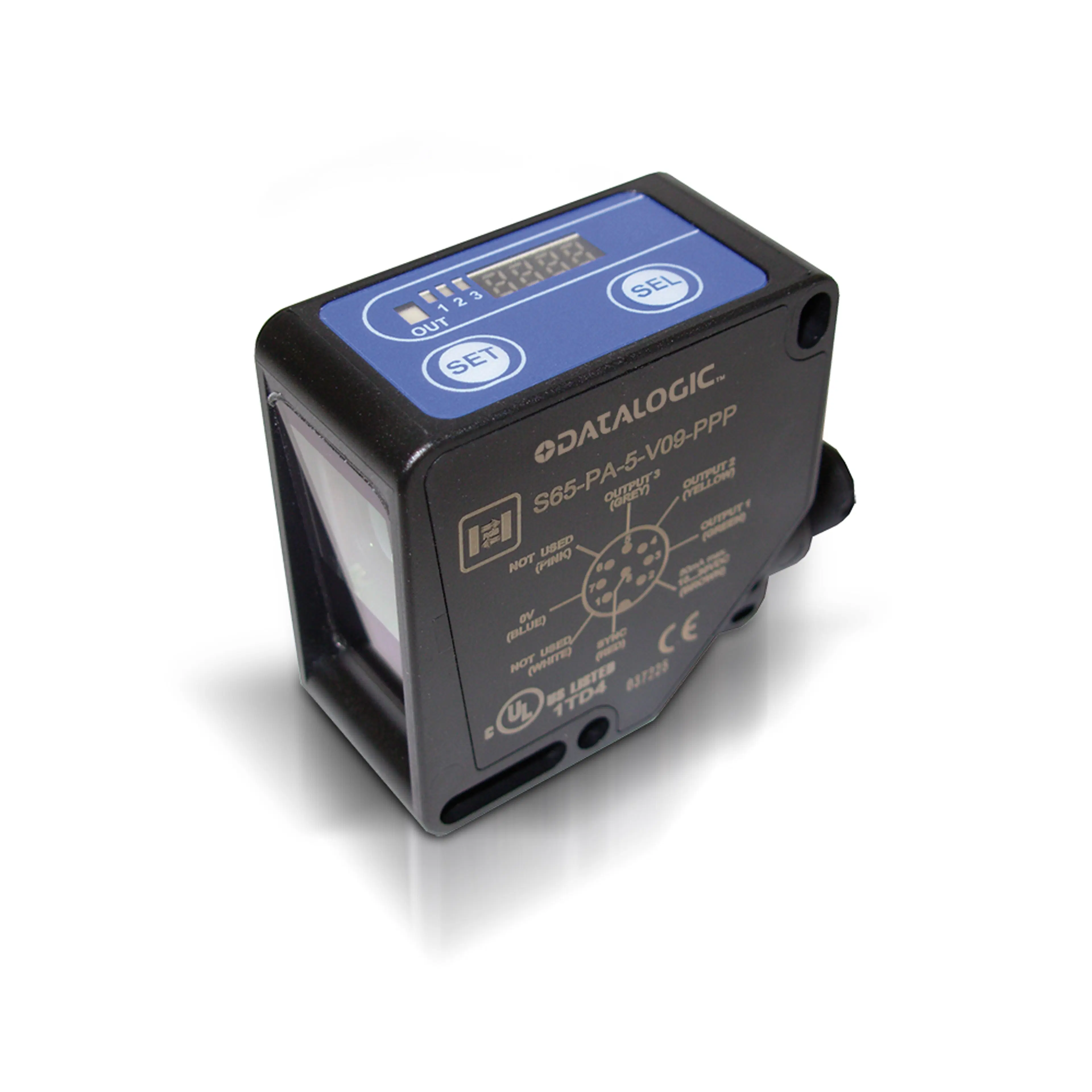

Datalogic S65-PA-5-V09-PPP, 956251020
S65 Special Sensor, Color Sensor Plastic Axial 3 Outputs Pnp - M12
The S65-V color sensors offer the best performances for color detection in a compact housing. The S65-V, thanks to a good response time of only 340??s, results to be particularly suitable for automatic packaging applications, quality control and part checking in the process production.
The sensors can memorize and recognize 3 colors on 3 independent channels. The auxiliary functions include keylock and synchronization with external events through a specific input. The control panel presents two setting push-buttons, outputs LEDs and a 4-digit display for functioning messages and sensor configuration. Complete remote control is possible for the version with the RS485 serial interface.
Features:
- White emission: good performance/price ratio
- C or C+I selectable functioning mode: high detection reliability and resolution
- Teach-in push-button and display 4 digits indicator: fast and easy setting
- 1.5KHz switching frequency: precise and repeatability reading
- RS485 serial interface: data transmission and remote setting
Applications:
- Packaging lines
- Sorting
- Wood working machines
- Glass working machines
- Automotive
| Technical Specifications | |
|---|---|
| Sensing Distance | 45 mm |
| Spot Dimension | Ø 4 mm |
| Sensitivity Adjustment | Teach-in |
| Principle | Color detection |
| Description | Compact square case |
| Optic Position | Axial |
| Functions | Color detection |
| Output Type | 3x PNP L/D selectable |
| Communication Interface | RS485 |
| Output Function | Light/Dark selectable |
| Switching Frequency | 1.5 kHz |
| Response Time | 0.33 ms |
| Supply Voltage | 10-30 VDC |
| No-Load Current | 60mA |
| Load Current | 100mA |
| Output Voltage Drop | 2 VDC |
| LED Indicators | Yellow (output state), Green 4-digit display, 3 Output Status LEDs |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Emission | White LED |
| External Light Immunity | According to EN 60947-5-2:2020 |
| Insulation Resistance | >20 MΩ @ 500 VDC (between electronics and housing) |
| Dielectric Strength | 500 VAC for 1 min (between electronics and housing) |
| Dimensions | 25 x 50 x 50 mm |
| Housing Material | ABS / PMMA Plastic |
| Lens Material | PMMA |
| Connection | M12 plug |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| IP Rating | IP67 |
| Approvals | CE, cULus |
| Vibration Resistance | 0.5 mm amplitude, 10-55 Hz (EN60068-2-6) |
| Color Channels | 3 |
| Tolerance Levels | 10 |
| MPN | S65-PA-5-V09-PPP |
