S65-PA-5-W09-NHZ | Contrast Sensor, 16us response, NPN, RS485, M12 8-pole Connector
The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67 mechanical protection, an advanced contrast sensor for the detection of register marks and other neutral or colored targets. The state-of-the-art technology with wide-spectrum white LED emission guarantees the detection of all contrasts.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic S65-PA-5-W09-NHZ, 954201010

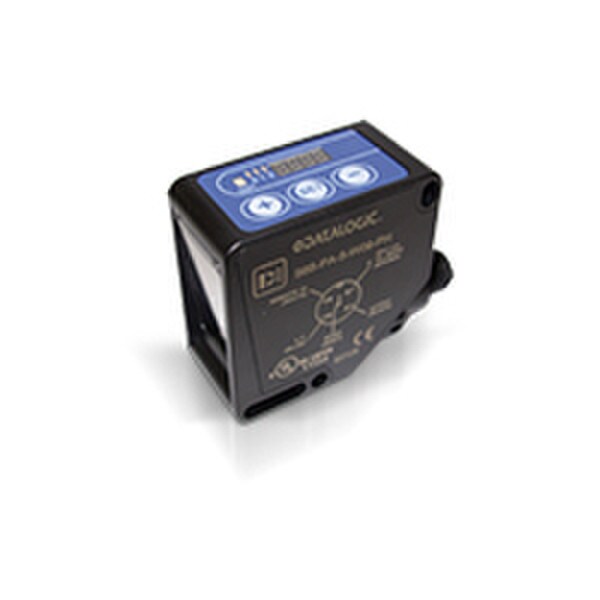

S65 Special Sensor, Contrast Sensor Plastic Axial Npn Ext Teach Rs485 - M12
The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67 mechanical protection, an advanced contrast sensor for the detection of register marks and other neutral or colored targets. The state-of-the-art technology with wide-spectrum white LED emission guarantees the detection of all contrasts.
The control panel presents three push-buttons for easy and immediate setting and a 4-digit display that indicates the configuration parameters and the level of received signal without the need of connecting external devices. Models with only one NPN or PNP switching output are available, or with RS485 serial interface for data transmission as well as an analog monitoring output proportional to the received light intensity.
Features:
- White emission: high detection reliability and resolution
- Teach-in push-button and display 4 digits indicator: fast and easy setting
- 30KHz switching frequency: precise and repeatability reading
- RS485 serial interface: data transmission and remote setting
Applications:
- Packaging lines
- Paper and Printing machines
- Automatic filling machines
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 15mm |
| Spot Dimension | 3x1 mm at 19 mm |
| Sensitivity Adjustment | Teach-in |
| Application Function Principle | Contrast mark detection |
| Description | Compact square case |
| Optic Position | Radial 90° |
| Functions | Contrast mark detection |
| Output Type | NPN, RS485 |
| Switching Frequency | 30 kHz |
| Response Time | 0.017 ms (30kHz) |
| Operating Voltage | 10-30VDC |
| No-Load Supply Current | 50mA |
| Load Current | 100mA |
| Output Voltage Drop | 2VDC |
| LED Indicators | Yellow (output state) STABILITY and 2 OUTPUT DELAY LEDs |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED white |
| External Light Interference | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact Resistance | 500 Vac 1 min., between electronics and housing |
| Dimensions | 25x50x50 mm |
| Housing Material | Plastic - ABS / PMMA |
| Connection | M12 plug |
| Active Head Material | PMMA |
| Storage Temperature | -20°C to +70°C |
| Housing Shape | Cubic |
| Approvals | CE, cULus |
| Shocks and Vibrations | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -10°C to +55°C |
| IP Rating | IP67 |
| MPN | S65-PA-5-W09-NHZ |
