S6R-5-M50-P | Multivoltage Photoelectric Sensor with Background suppression, PNP N.O./N.C., 100 - 500 mm
The compact S6 photoelectric sensor series, thanks to the excellent detection performances and the variety of power supply and connection possibilities, offers the most complete universal sensor range in the compact 50x50 mm housing.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

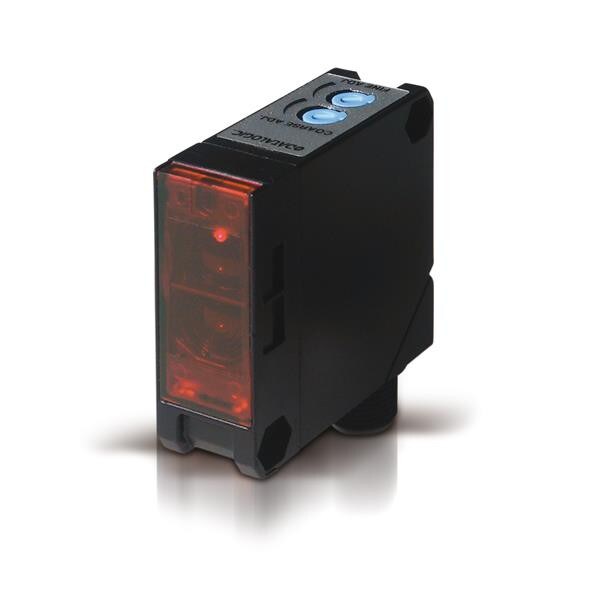

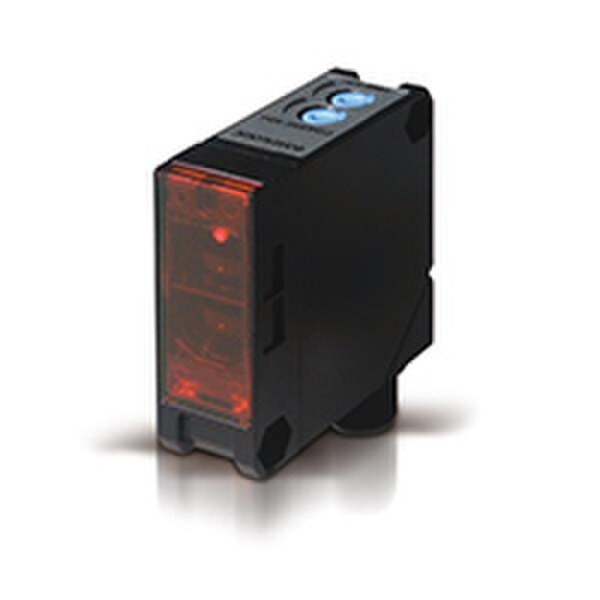

Datalogic S6R-5-M50-P / 950201250
S6 Midi Square Photoelectric Sensor, Bgs Plastic Radial Dc Pnp No/Nc - M12
The compact S6 photoelectric sensor series, thanks to the excellent detection performances and the variety of power supply and connection possibilities, offers the most complete universal sensor range in the compact 50x50 mm housing.
The operating distance can be set to the optimal value in each model: 2m diffuse proximity, 25 or 50cm background suppression, 5m polarized retroreflex, 1m retroreflex versions for transparent objects and 20m through beam.
The free voltage versions have a relay output and cable connection, the versions with 10-30Vdc power supply present cable or M12 4-pole connection.
Features:
- Wide range: suitable for all the industrial applications
- AC or DC versions: application adaptability
- M12 4-pole or cable connection: flexible connection system to meet customer applications
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Detection Principle | Background suppression |
| Sensing Distance | 500mm |
| Sensitivity Adjustment | Trimmer |
| Description | Compact square case |
| Output Type | PNP - Light mode L/D selectable by cable/connector |
| Output Function | L/D selectable by cable/connector |
| Switching Frequency | 500Hz |
| Response Time | 1ms |
| Operating Voltage | 10 to 30VDC |
| No-Load Supply Current | 30mA |
| Load Current | 100mA |
| LED Indicators | Red OUTPUT |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission Type | LED Infrared |
| External Light Immunity | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions (mm) | 18x50x50 |
| Housing Material | ABS |
| Connection | M12 plug |
| Lens Material | PMMA |
| Storage Temperature | -25°C to +70°C |
| Housing Style | Cubic |
| Approvals | CE cULus |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -25°C to +55°C (Without freeze) |
| IP Rating | IP65 |
| MPN | S6R-5-M50-P |
