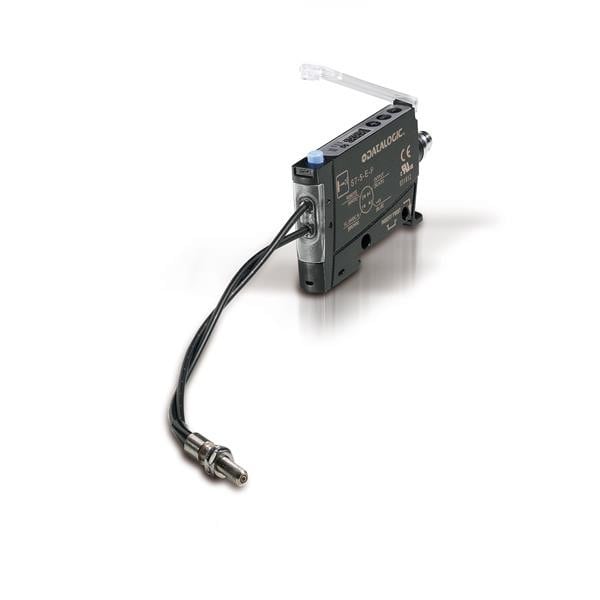

S7-7-E-P | Red LED Fiber Optic Sensor, PNP, 2m Cable with trimmer
The S7 series offers optic amplifiers with slim 10mm body, representing the ideal solution for all applications requiring high-accurate sensing combined with very compact dimensions. The high resolution 12 bit amplifier has a response time of 50µs with a switching frequency of 10Khz, making the S7 series perfect for ultra-high precision detection.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic S7-7-E-P / 950551120
S7 Fiber Optic Sensor, Fiber Optic Amplifier With Trimmer - 2 Mt Cable Pnp
The S7 series offers optic amplifiers with slim 10mm body, representing the ideal solution for all applications requiring high-accurate sensing combined with very compact dimensions. The high resolution 12 bit amplifier has a response time of 50µs with a switching frequency of 10Khz, making the S7 series perfect for ultra-high precision detection.
Installation and setting is easy and rapid. Sensor presents an adjustment system offering remote setting, keylock and activation of the output OFF delay function. S7 series are also available with multiturn trimmer models for applications where cost reduction is important.
Features:
- Teach-in setting or multiturns trimmer models: suitable for all the industrial applications
- 12 bit resolution: high detection repeatability for a precise reading
- Display version: easy and fast setting
- M8 4-pole or cable version: flexible connection system to meet customer applications
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 100mm |
| Sensitivity Adjustment | Trimmer |
| Sensing Principle | Optic fiber amplifier |
| Description | Compact case without display |
| Optic Position | axial |
| Functions | Optic fiber amplifier |
| Output Type | PNP L/D selectable |
| Output Function | L/D selectable |
| Switching Frequency | 1Khz (low speed) |
| Response Time | 500µs (low speed) |
| Operating Voltage | 12...24VDC 10% |
| No-Load Supply Current | 30mA |
| Maximum Load Current | 100mA |
| Output Voltage Drop | 1,2V@Iload=100mA |
| LED Indicators | yellow (output state) green (stability, delay) green/red (Read/error) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (670 nm) |
| External Light Interference Standard | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | 10x40x65 |
| Housing Material | ABS(Housing), PMMA (Optics) |
| Connection | 2m cable |
| Optics Material | PMMA |
| Storage Temperature | -25°C to +70°C |
| Material | Plastic ABS / PC |
| Form Factor | Cubic |
| Approvals | CE cULus |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -25°C to + 55°C (Without freeze) |
| Mechanical Protection | IP67 with cover |
| MPN | S7-7-E-P |
