S70-2-E1-P | Fiber Optic Sensor, 200μs - 5ms, PNP, 2m Cable
The S70 is a high performance fiber optic amplifier with advanced design and features. The S70 is a compact, DIN rail mountable fiber optic amplifier with best-in-class response time and repeatability. Two models with different response times are available: S70-E1 and S70-E2.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

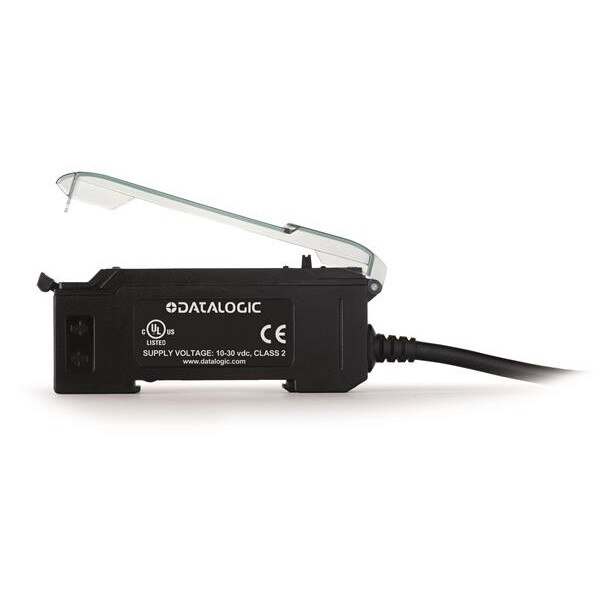

Datalogic S70-2-E1-P / 950561010
S70 Fiber Optic Sensor, Fiber Optic Amplifier Double Display Long Distance Pnp
The S70 is a high performance fiber optic amplifier with advanced design and features. The S70 is a compact, DIN rail mountable fiber optic amplifier with best-in-class response time and repeatability. Two models with different response times are available: S70-E1 and S70-E2.
The S70 has dual digital displays, showing both signal level and threshold simultaneously, and a bright output LED for easy programming and operational status monitoring.
All S70 amplifiers work with any Datalogic 2.2 mm fiber optic cable, which allows for several operating distances according to their design and application. The S70 features a single discrete output, either NPN or PNP, as well as a model with IO-Link interface.
Features:
- High Speed models: 200 ?s (High Speed), 500 ?s (Standard), 2 ms (Long Range) and 5 ms (Extra Long Range)
- Super High Speed models: 10 ?s (Super High Speed), 15 ?s (High Speed), 50 ?s (Fast), 250 ?s (Standard), 500 ?s (Medium Range) and 1 ms (Long Range)
- Dual digital displays (red/green), switches, push-button & remote input: quick and easy setting
- DIN rain mount format: detection in reduced spaces
- 2 m cable or M8 4-pole: standard and flexible connection system
- PNP or NPN outputs
- IO-Link interface: easy and standardized communication with your industrial network
Applications:
- Processing and Packaging machinery
- Electronics assembling
- Pharmaceutical industry
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 250 - 1000mm |
| Sensitivity Adjustment | Teach-in |
| Application Function Principle | Optic fiber amplifier |
| Description | Slim case with display |
| Optic Position | Axial |
| Functions | Optic fiber amplifier |
| Output Type | PNP L/D selectable |
| Output Function | L/D selectable |
| Switching Frequency | 2.5 kHz (HIGH SPEED), 1 kHz (Standard), 250 Hz (Long Range), 100 Hz (Extra long Range) |
| Response Time | 0.2 ms |
| Operating Voltage | 10-30VDC |
| No-Load Supply Current | 40mA (standard display mode), 30mA (ECO display mode) |
| Load Current | 100mA |
| Output Voltage Drop | 2V@Iload=100mA |
| LED Indicators | Yellow (output state), Red (Signal level - 4 digits), Green (Threshold - 4 digits) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (660nm) |
| Interference to External Light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact Resistance | 500 Vac 1 min., between electronics and housing |
| Dimensions | 10x32x80 |
| Housing Material | ABS(Housing), PMMA (Optics) |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage Temperature | -25°C to +85°C |
| Material | Plastic ABS / PC |
| Diameter/Dimension | Cubic |
| Approvals | CE, cULus |
| Shocks and Vibrations | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -10°C to +55°C |
| Mechanical Protection | IP67 with cover |
| MPN | S70-2-E1-P |
