S8-MR-5-U03-PP | Stainless Steel Luminescence High Performance Photoelectric Sensor, PNP, M8 connector
The S8 photoelectric series offer the most advanced functions for; background suppression, detection of transparent objects, contrast sensors for color mark, in addition to the traditional functions for the detection of opaque objects and for small object detection thanks to the high resolution obtained through the models with LASER emission. A new patented technology is now available for the detection of transparent objects or highly polished objects that may be moving or in a reflective environment.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

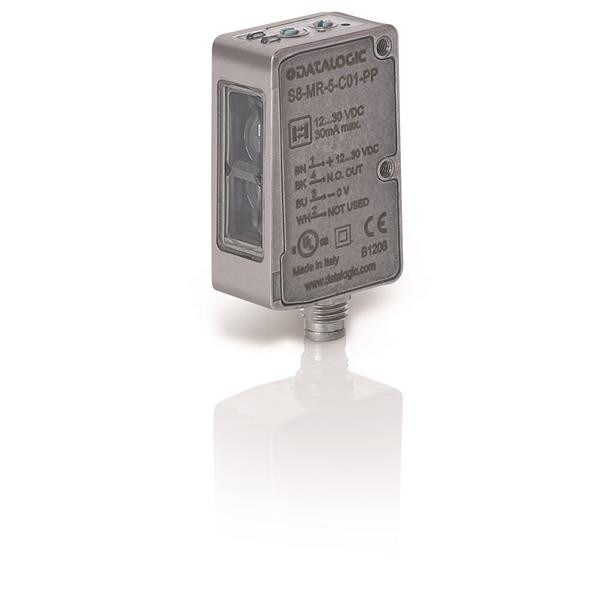

Datalogic S8-MR-5-U03-PP / 950801630
S8 Mini Square Photoelectric Sensor, Luminescence Metal Radial Pnp No/Nc - M8
The S8 photoelectric series offer the most advanced functions for; background suppression, detection of transparent objects, contrast sensors for color mark, in addition to the traditional functions for the detection of opaque objects and for small object detection thanks to the high resolution obtained through the models with LASER emission. A new patented technology is now available for the detection of transparent objects or highly polished objects that may be moving or in a reflective environment.
The series also offers a full range of high efficiency contrast sensors, that allow to work with fast response times, up to 25 kHz switching frequency, as well as a luminescence sensor with high depth of field. IP69K requirements are met using a sturdy metal housing made of stainless steel and carry IP69K protection and certifications for use with most industrial detergents and can be used on automatic machines for the processing of food and beverage packaging and the pharmaceutical industries.
Features:
- Compact size (14x42x25 mm)
- Standard optic functions for objects detection
- Detection of clear objects on reflective backgrounds up to 300mm
- Contrast sensor with switching frequency up to 25 kHz
- High depth of field luminescence sensor
- Degree of protection IP69K with stainless 316L,resistant to the effects of detergents, disinfectants, high temperatures and high-pressure washing
Applications:
- Food & Pharma
- Beverage & Bottling
- Packaging lines
| Technical Specifications | |
|---|---|
| Sensing Principle | Luminescent mark detection |
| Sensing Distance | 30 mm |
| Sensitivity Adjustment | Teach-in |
| Optic Position | Radial 90° |
| Emission | LED UV |
| Output Type | PNP L/D selectable |
| Response Time | 0.25 ms |
| Supply Voltage | 12-30 VDC |
| No-Load Current | 30mA |
| Output Voltage Drop | 2V @ 100mA |
| Protection | Short-circuit, Reverse Polarity, Impulsive Overvoltage |
| LED Indicators | Yellow (Output Status/Alarm), Green (Power ON) |
| IP Rating | IP67, IP69K |
| Operating Temperature | -25°C to +55°C (Without freeze) |
| Storage Temperature | -25°C to +70°C |
| Housing Material | Metal - Stainless steel |
| Lens Material | PMMA |
| Dimensions | 14 x 43 x 25 mm |
| Connection | M8 plug 4-pin |
| Approvals | CE, cULus |
| Light Immunity | According to EN 60947-5-2 : 2020 |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10-55 Hz frequency, for every axis (EN60068-2-6) |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| MPN | S8-MR-5-U03-PP |
