S80-MH-5-Y19-NNIZ | Aluminum Distance Sensor, NPN, Analog 4 - 20 mA, RS485, M12 Connector
The S80 series offers class 2 laser distance sensors with time of flight measurement provides the S80-Y0 and S80-YL0 proximity sensors with respectively a 0.3 - 4 m distance, or from 0.3 to 7 m with scalable range and the S80-Y1 and S80-Y2 retroflex sensors, with operating distances reaching 20 or 100 m, that measure the distance from a reflector mounted on the object. Models with two digital outputs, both the NPN and PNP, are available together with 4-20 mA analogue output and RS485 serial interface
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

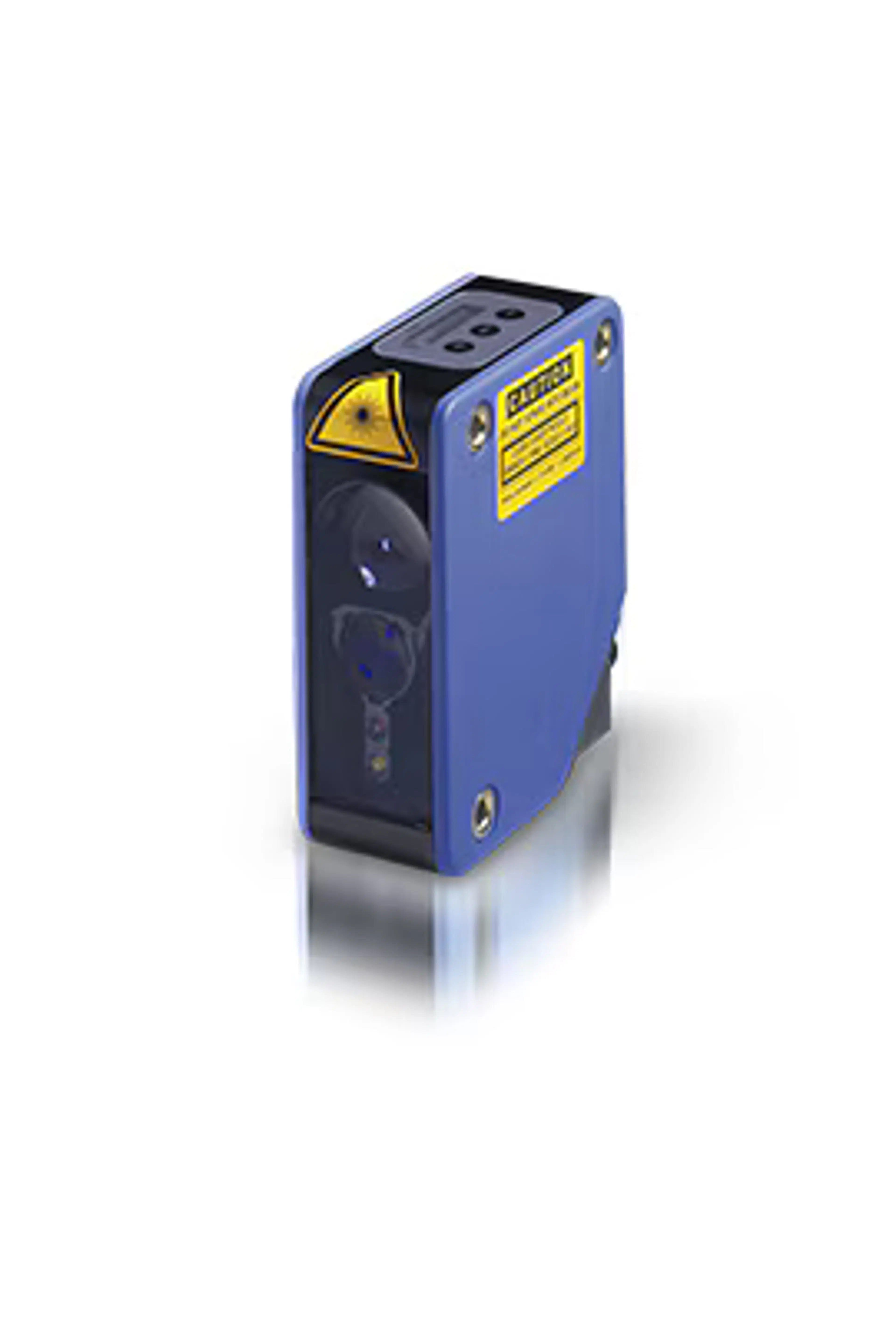

Datalogic S80-MH-5-Y19-NNIZ / 951501030
Proximity 7M - Analogue/Rs485/2 Pnp - Display - M12 8P
The S80 series offers class 2 laser distance sensors with time of flight measurement provides the S80-Y0 and S80-YL0 proximity sensors with respectively a 0.3 - 4 m distance, or from 0.3 to 7 m with scalable range and the S80-Y1 and S80-Y2 retroflex sensors, with operating distances reaching 20 or 100 m, that measure the distance from a reflector mounted on the object. Models with two digital outputs, both the NPN and PNP, are available together with 4-20 mA analogue output and RS485 serial interface
Applications:
- Level Control
- Pallet presence on stocker cranes
- Unwinding coils
- Pallet positioning
- Distance measurement of a moving pallet
- Correct length detection of wood with or without bark
| Technical Specifications | |
|---|---|
| Model | S80-MH-5-Y19-NNIZ |
| Optic Function | Distance |
| Emission | Laser |
| Material | Aluminum |
| Type | Distance Sensor |
| Manufacturer | Datalogic |
| Power consumption (W) | 0.17 |
| SKU | 951501030 |
| Communication | M12 Connector |
| Power supply | 15 - 30 VDC |
| Connection | M12 Connector |
| Output | NPN |
| Weight (lbs) | 0.73 |
| Operating Distance | 20000 mm |
| Series | S80 |
| Housing | Aluminum |
| Wavelength | 858 nm |
| MPN | S80-MH-5-Y19-NNIZ |
