S81-PL-5-Y03-PPV | Plastic Distance Sensor with Distance - Short Range, PNP, Analog, M12 Connector
S81 series is available in two different versions: S81-...Y for distance measurement with a 0-10 V analogue output, or S81-...M as long distance background suppression proximity with an additional alarm output for received signal problems or dirty lens condition. S81-.. Y version offers the possibility to scale the 0-10V analogue output. The class 2 Laser emission and the time of flight measurement technology assure extreme precision in the distance measurement, with range up to 4 meters.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

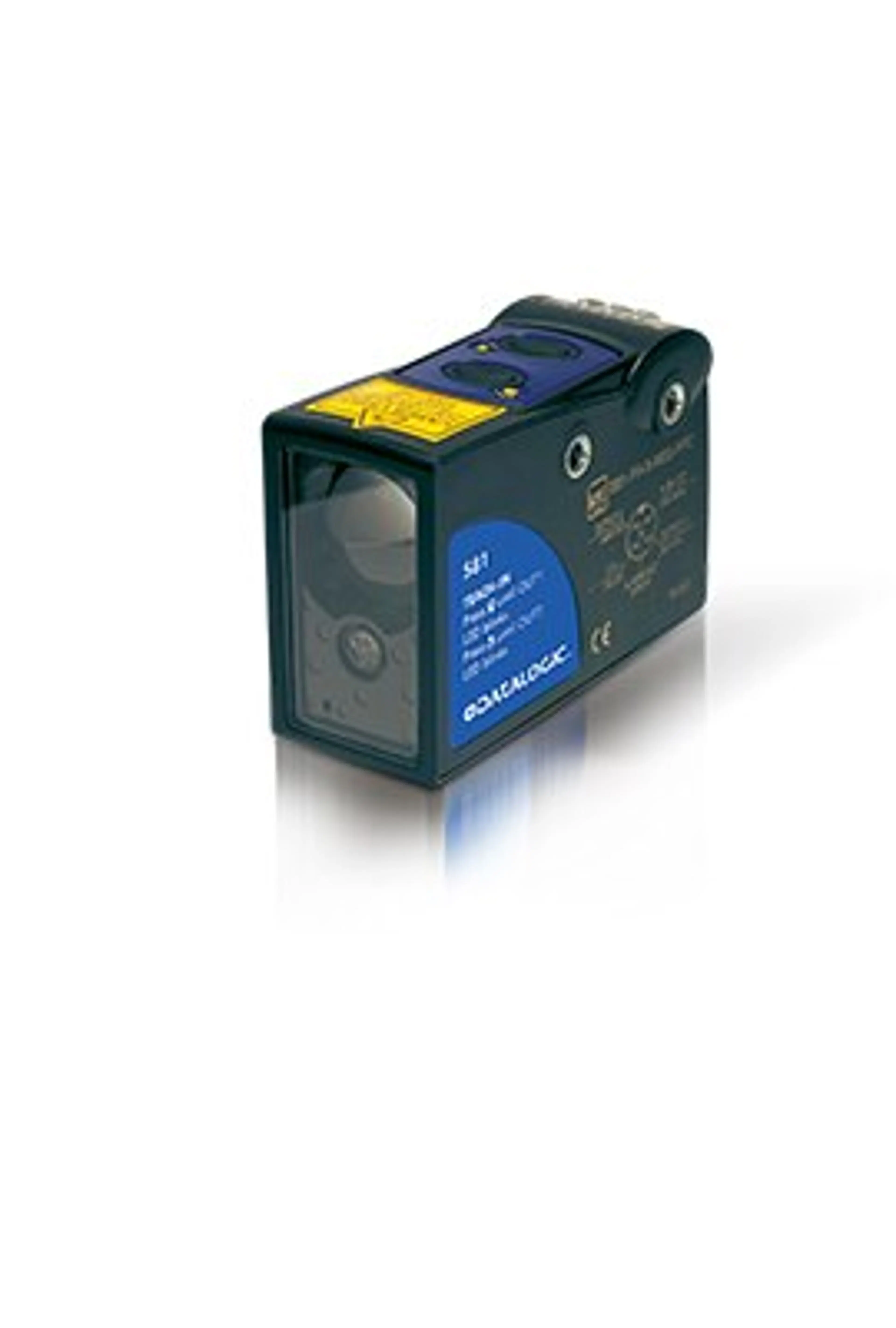

Datalogic S81-PL-5-Y03-PPV / 951551030
Proximity 4M - 0-10V Analogue 2 Pnp - M12 5P
S81 series is available in two different versions: S81-...Y for distance measurement with a 0-10 V analogue output, or S81-...M as long distance background suppression proximity with an additional alarm output for received signal problems or dirty lens condition. S81-.. Y version offers the possibility to scale the 0-10V analogue output. The class 2 Laser emission and the time of flight measurement technology assure extreme precision in the distance measurement, with range up to 4 meters.
Applications:
- Level Control
- Pallet presence on stocker cranes
- Unwinding coils
- Pallet positioning
| Technical Specifications | |
|---|---|
| Model | S81-PL-5-Y03-PPV |
| Optic Function | Distance |
| Emission | Laser |
| Material | ABS |
| Type | Distance Sensor |
| Manufacturer | Datalogic |
| Power consumption (W) | 0.12 |
| SKU | 951551030 |
| Dimensions | 31 x 53 x 80 mm |
| Power supply | 24 VDC |
| Connection | M12 Connector |
| Output | PNP |
| Operating Distance | 4000 mm |
| Series | S81 |
| Housing | Plastic |
| MPN | S81-PL-5-Y03-PPV |
