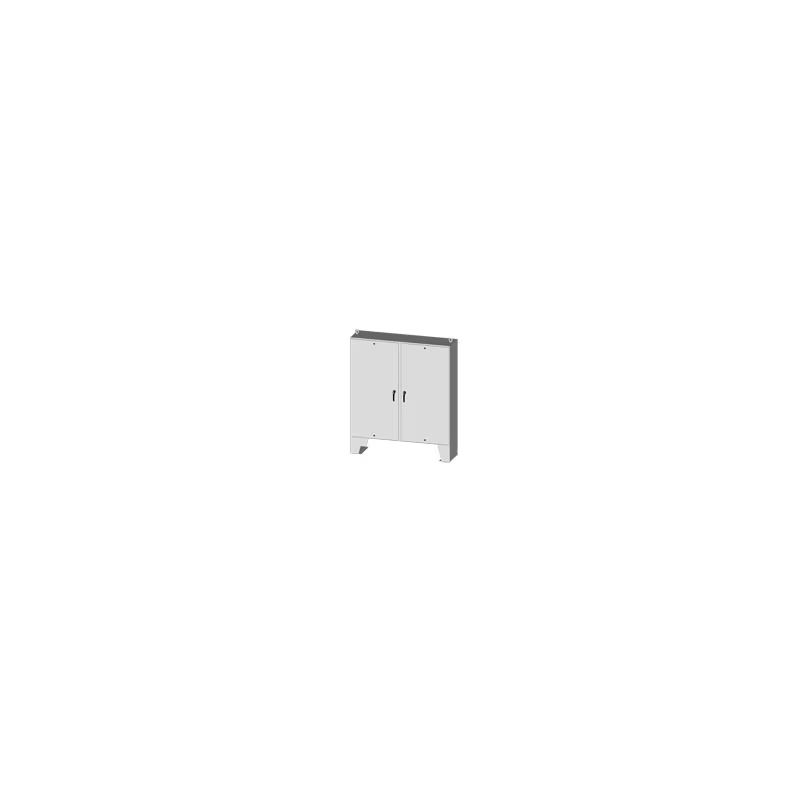

Designed to house electrical and electronic controls, instrumentation and components in indoor & outdoor locations. For outdoor applications a drip shield is recommended.
Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
47 items
Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Designed to house electrical and electronic controls, instrumentation and components in indoor & outdoor locations. For outdoor applications a drip shield is recommended.
Construction -
0.104" Stainless steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Removable centerpost.
Heavy duty lifting eyes anchored into reinforced top.
Body stiffeners.
Concealed hinges.
Black key locking padlocking handles.
3-point latching mechanism.
Removable print pocket on main door.
12" removable floor stands.
Panel Supports.
Provisions for mechanical interlock
Oil & water resistant gasket.
Ground stud on door and body.
Options -
Provisions for mechanical interlock. See Accessory section to order.
Finish -
ANSI-61 gray powder coating inside and out. Optional panels are powder coated white.
Industry Standards - (IS4)
NEMA Type 3R, 4, 12 and Type 13 UL Listed Type 3R, 4 and 12 CSA Type 3R, 4 and 12 IEC 60529 IP 66
Notes -
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Features & Benefits
Made from 0.104" Stainless Steel
Heavy duty lifting eyes anchored into reinforced top.
Flange trough collar around all sides of door opening.
Made from 0.104" Stainless Steel,Heavy duty lifting eyes anchored into reinforced top.
