UNIV. CONTROLLER, ETH
The SC6000 is the ultimate Datalogic Automation industrial bar code controller specifically designed for omni-directional multi-side reading tunnels. It offers all the necessary computational resources for very challenging applications where throughput, reliability and availability are key factors. A large number of communication interfaces are provided to satisfy all the most common demands. Ethernet, always available, can be optionally combined to Profibus and DeviceNet interfaces.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

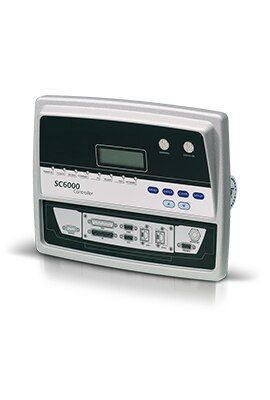

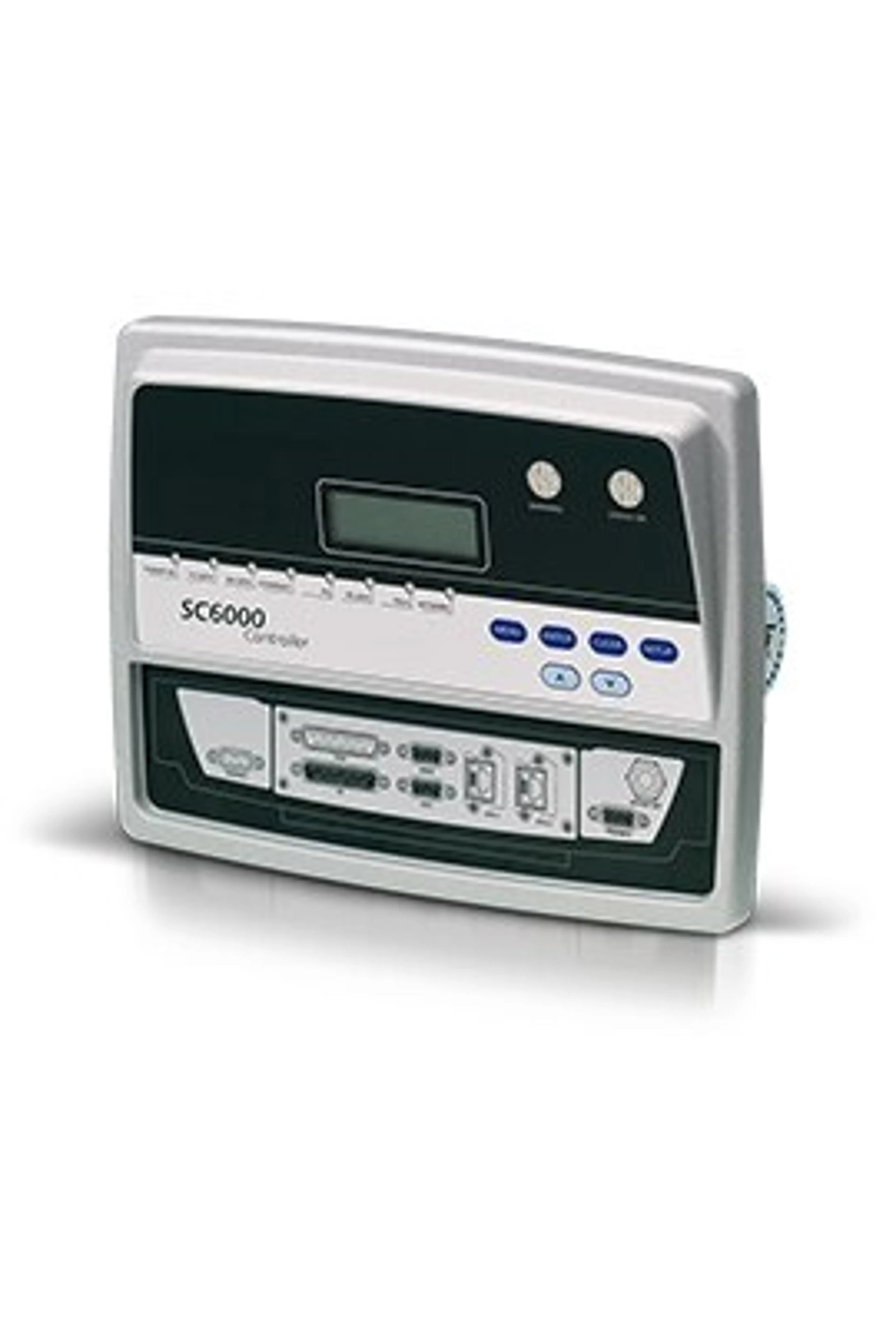

Datalogic SC6000-1200 / 935701000
UNIV. CONTROLLER, ETH
The SC6000 is the ultimate Datalogic Automation industrial bar code controller specifically designed for omni-directional multi-side reading tunnels. It offers all the necessary computational resources for very challenging applications where throughput, reliability and availability are key factors. A large number of communication interfaces are provided to satisfy all the most common demands. Ethernet, always available, can be optionally combined to Profibus and DeviceNet interfaces.
Features:
- Industrial controller for multiside reading stations
- DARP (Datalogic Automatic Procedure) function
- Multilanguage GENIUSTM configuration tool
- Display and 6 keypad for diagnostics/statistics
- Built-in Ethernet profibus and DeviceNet connectivity
| Technical Specifications | |
|---|---|
| RAM | 16 MB |
| Storage | 2MB FLASH; 32 MB Compact FLASH |
| Model | 935701000 |
| Interface | Ethernet, Ethernet and Profibus, Ethernet and DeviceNet, Ethernet and Ethernet |
| Type | Controller |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 50 °C (32 to 122 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 5 |
| SKU | 935701000 |
| Dimensions | 193 x 180 x 71 mm |
| Communication | RS-232 |
| Power supply | 10 - 30 VDC |
| Weight (lbs) | 2.12 |
| Series | SC6000 |
| MPN | 935701000 |
