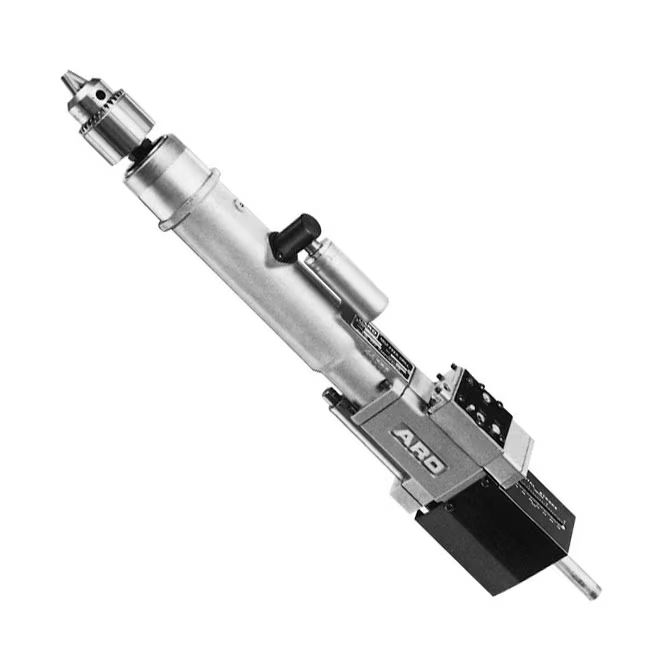

High-Thrust 8670 Series
High Thrust Self Feed Drills feature a dual piston which develops the increased thrust for fast penetration and reduced cycle times.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
11 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|
 8670-13-3AM8670-13-3AM | DRILL$9,063.35 | 0.1 | $9,063.35 | 1 | View details |
| 8670-13-3BM8670-13-3BM | DRILL$9,181.16 | 0.1 | $9,181.16 | 1 | View details |
| 8670-28-3AM8670-28-3AM | DRILL$8,686.76 | 181 | $8,686.76 | 1 | View details |
| 8670-28-3DM8670-28-3DM | DRILL$9,457.98 | 0.1 | $9,457.98 | 1 | View details |
| 8670-4-3AB8670-4-3AB | DRILL$8,871.51 | 0.1 | $8,871.51 | 1 | View details |
| 8670-4-3AM8670-4-3AM | DRILL$8,878.60 | 0.1 | $8,878.60 | 1 | View details |
| 8670-4-3BM8670-4-3BM | DRILL$8,685.48 | 0.1 | $8,685.48 | 1 | View details |
| 8670-4-3DM8670-4-3DM | DRILL$8,848.99 | 0.1 | $8,848.99 | 1 | View details |
| 8670-47-3AM8670-47-3AM | DRILL$8,640.41 | 0.1 | $8,640.41 | 1 | View details |
| 8670-47-3BM8670-47-3BM | DRILL$8,368.75 | 0.1 | $8,368.75 | 1 | View details |
 8670-8-3AM8670-8-3AM | 5/8 in. Self-Feed Drill, 800 rpm, 1.25 hp$9,266.78 | 0.1 | $9,266.78 | 1 | View details |
Details
Product information
Overview
Ingersoll Rand - ARO Hi-Thrust Automatic Feed Drills are designed for increased material removal rates of standard alloys and non-ferrous materials. Their high power and thrust also enable the machining of even the most demanding materials, including titanium and high-nickel alloys.
Ingersoll Rand - ARO Hi-Thrust Drills feature a dual piston which develops the increased thrust for fast penetration and reduced cycle times. The tools are fully automatic, with all cycle and motor functions regulated by a single control module. They are easily installed, requiring only simple pneumatic circuity. Hi-Thrust Drills can also be used in conjunction with other pneumatic and electric ARO Automatic Production tools.
Ingersoll Rand - ARO Hi-Thrust Drills feature a dual piston which develops the increased thrust for fast penetration and reduced cycle times. The tools are fully automatic, with all cycle and motor functions regulated by a single control module. They are easily installed, requiring only simple pneumatic circuity. Hi-Thrust Drills can also be used in conjunction with other pneumatic and electric ARO Automatic Production tools.
- Adjustable hydraulic check provides positive feed rate control for fine adjustment of chip size or breakthrough control.
- "Dead stop" and "dwell" control offer repeatable depth accuracy within .001"
- Heavy-duty cast iron housing for rigid mounting.
- Constant tool length, regardless of spindle speed, allows speed change without repositioning the tool.
- Both coarse and fine stroke length adjustments enables quick, accurate setups.
- Control module ia s complete, replaceable unit and can be easily removed without tool disassembly.
- Modular motor and gearing units enable fast, easy speed changes and servicing.
- Single exterior lubrication point for entire gear train simplifies preventative maintenance.
- Muffled exhaust for a more comfortable work environment.
- Exhaust may be piped away.
| Features & Benefits | |
|---|---|
| Free Speed: 4,700 RPM Max | |
| Max Stroke Length: 3.0" (76mm) | |
| Thrust: Up to 500 Lbs | |
| From $3,500 up to $3,695 | |
| Free Speed: 4 | |
| 700 RPM Max |
