Lead Screw Tappers

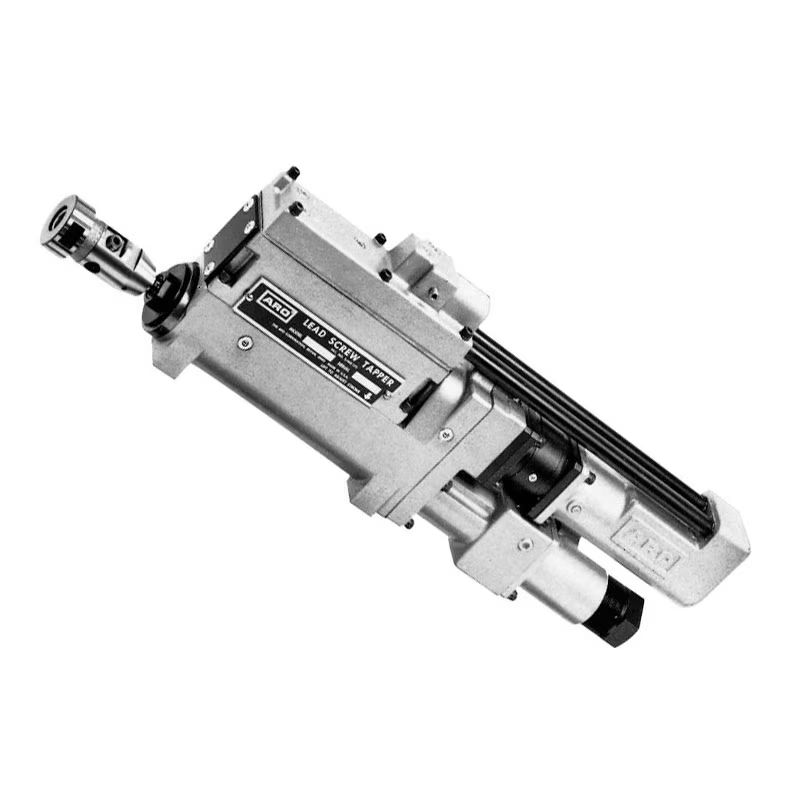

The Ingersoll Rand ARO Lead Screw Tapper is designed for precision hole tapping in medium and high-production machining applications. The tool is air operated and is fully automatic, with a built-in pressure-operated valve, manual controls and remote control ports for starting and retracting. Installation is easy, with only simple pneumatic circuitry required. It can be used individually or in conjunction with other pneumatic and electric self-feed tools and maching components.

• Repeatable tapping depth accuracy of +/-.005" (.127 mm).
• Stroke length is fully adjustable from 3/16" (4.8 mm) minimum to 2.0" (50.8 mm) maximum for use in a wide range of setups.
• A built-in "no-hole" sensing system prolongs tap life by automatically retracting the spindle when a pilot hole is missing or when excessive misalignment exists.
• Modular tool design enables easy servicing of air motor and gearing, and offers convenient, economical speed and lead screw conversions as job requirements change.
• Compact size requires less machine space for increased design flexibility.
• Fixed-position foot mounting requires no additional mounting hardware while providing added rigidity.
• A wide selection of models is available for both American and metric threads.
• Twin and multi-spindle tapping heads are available for close-center machining requirements
