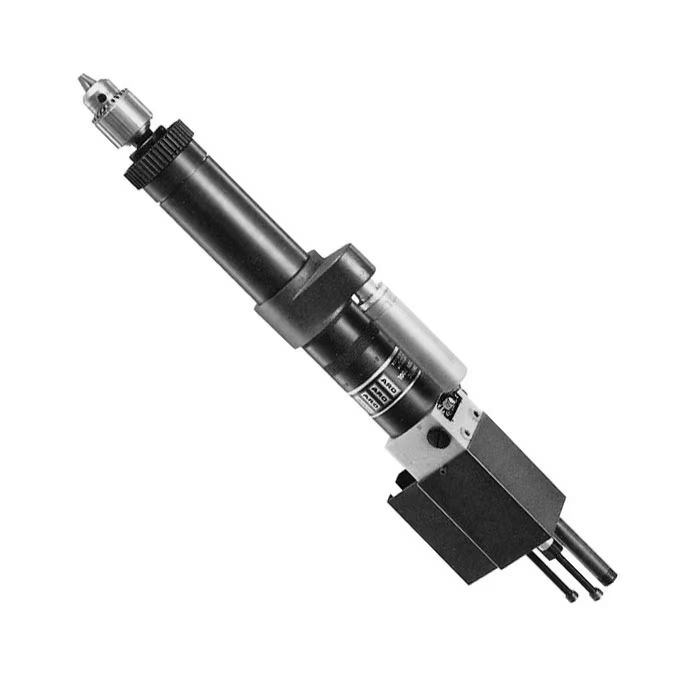

Self Feed Par-A-Matic

Paramatic Self Feed Drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.

Models Available

18 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductModelFree Speed (RPM)Max Free Speed (rpm)PriceQty
8255-101-18255-101-1 | Self Feed Drill, 5/16'' chuck, 10000 rpm$2,685.088255-101-11000010000$2,685.081View details
8255-101-28255-101-2 | Self Feed Drill, 5/16'' chuck, 10000 rpm$2,951.598255-101-21000010000$2,951.591View details
8255-101-38255-101-3 | Self Feed Drill, 5/16'' chuck, 10000 rpm$3,043.658255-101-31000010000$3,043.651View details
8255-172-18255-172-1 | Self Feed Drill, 5/16'' chuck, 17000 rpm$2,643.888255-172-11700017000$2,643.881View details
8255-172-28255-172-2 | Self Feed Drill, 5/16'' chuck, 17000 rpm$2,824.788255-172-21700017000$2,824.781View details
8255-172-38255-172-3 | Self Feed Drill, 5/16'' chuck, 17000 rpm$2,985.068255-172-31700017000$2,985.061View details
8255-A14-18255-A14-1 | Self Feed Drill, 5/16'' chuck, 1450 rpm$2,601.398255-A14-114501450$2,601.391View details
8255-A14-28255-A14-2 | Self Feed Drill, 5/16'' chuck, 1450 rpm$2,859.548255-A14-214501450$2,859.541View details
8255-A14-38255-A14-3 | Self Feed Drill, 5/16'' chuck, 1450 rpm$3,043.658255-A14-314501450$3,043.651View details
8255-A21-18255-A21-1 | Self Feed Drill, 5/16'' chuck, 2100 rpm$2,513.848255-A21-121002100$2,513.841View details
8255-A21-28255-A21-2 | Self Feed Drill, 5/16'' chuck, 2100 rpm$2,692.168255-A21-221002100$2,692.161View details
8255-A21-38255-A21-3 | Self Feed Drill, 5/16'' chuck, 2100 rpm$2,898.168255-A21-321002100$2,898.161View details
8255-A28-18255-A28-1 | Self Feed Drill, 5/16'' chuck, 2800 rpm$2,513.848255-A28-128002800$2,513.841View details
8255-A28-28255-A28-2 | Self Feed Drill, 5/16'' chuck, 2800 rpm$2,717.918255-A28-228002800$2,717.911View details
8255-A28-38255-A28-3 | Self Feed Drill, 5/16'' chuck, 2800 rpm$2,898.168255-A28-328002800$2,898.161View details
8255-A8-18255-A8-1 | Self Feed Drill, 5/16'' chuck, 850 rpm$2,601.398255-A8-1850850$2,601.391View details
8255-A8-28255-A8-2 | Self Feed Drill, 5/16'' chuck, 850 rpm$2,948.388255-A8-2850850$2,948.381View details
8255-A8-38255-A8-3 | Self Feed Drill, 5/16'' chuck, 850 rpm$3,137.648255-A8-3850850$3,137.641View details

Details

Product information

Overview

  • Built-in four-way valve enables both manual and remote operation.
  • Double-acting air piston provides smooth, controlled forward and retract strokes.
  • Needle valve controls allows adjustment of forward and retract strokes.
  • Adjustment screw provides infinite stroke length settings.
  • Ball bearing spindle support offers precision and long service life.
  • Muffled exhaust for a quieter work environment.
Features & Benefits
Free Speed: 17,000 RPM Max
Max Stroke Length: 3.0" (76mm)
Thrust: Up to 170 Lbs
From $1,554 up to $1,884
Free Speed: 17
000 RPM Max
