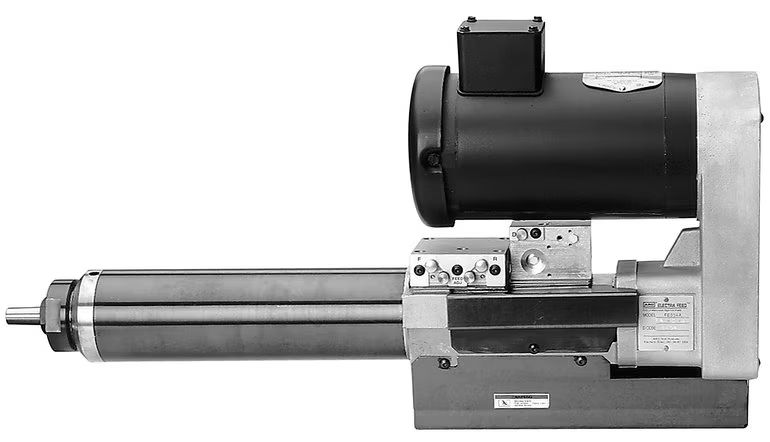

Series 74 Self Feed Drill
Fixtured automatic feed drills provide the solution when accurate and repeatable hole-drilling is required. Choose the configuration you need to deliver results time after time.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
14 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
- A precision spindle with pre-loaded bearing support for accurate targeting, longevity, and .001 t.i.r. runout, or less.
- Built-in dwell control that holds repeatable depth within .002 inches.
- Individually adjustable feed rate control for advance and retract.
- The longest usable tool stroke length (adjustable to 110 mm [4.33 inches]) available in such a compact tool.
- Variable thrust from 150 to 330 lbs. for proper penetration power and rate.
- A heavy duty, ball-bearing supported drive train that is fully sealed and prelubed.
- Air and electric I/Os for control and feedback.
| Features & Benefits | |
|---|---|
| Load Speed Peak: 7,000 RPM Max | |
| Torque, Peak H.P. LB. FT: 0.23 up to 2.14 | |
| From $2,995 up to $3,345 | |
| Load Speed Peak: 7 | |
| 000 RPM Max | |
| Torque | |
| Peak H.P. LB. FT: 0.23 up to 2.14 |
