Series TT03C Digital Cap Torque Gauges
Mark-10 Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system.
Models Available
3 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 MTT03C-100MTT03C-100 | Cap torque gauge, 100 lbFin / 1150 kgFmm / 1150 Ncm$1,686.25 | MTT03C-100 | $1,686.25 | 1 | View details |
| MTT03C-12MTT03C-12 | Cap torque gauge, 12 lbFin / 140 kgFmm / 135 Ncm$1,686.25 | MTT03C-12 | $1,686.25 | 1 | View details |
| MTT03C-50MTT03C-50 | Cap torque gauge, 50 lbFin / 580 kgFmm / 570 Ncm$1,686.25 | MTT03C-50 | $1,686.25 | 1 | View details |
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 08-102608-1026 | Mark-10 08-1026 | Rechargeable Battery$22.80 | $22.80 | 1 | View details |
 09-116509-1165 | Mark-10 09-1165 | Spare USB Cable$34.20 | $34.20 | 1 | View details |
 15-100415-1004 | MESUR™ gauge software$638.40 | $638.40 | 1 | View details |
 AC1030AC1030 | Spare AC adapter, 110V$42.75 | $42.75 | 1 | View details |
 AC1031AC1031 | AC adapter/charger, 220V Europe$42.75 | $42.75 | 1 | View details |
 AC1032AC1032 | AC adapter/charger, 220V UK$42.75 | $42.75 | 1 | View details |
 AC1035AC1035 | AC adapter/charger, 220V Australia$42.75 | $42.75 | 1 | View details |
 CERTCERT | NIST certificate with data$80.75 | $80.75 | 1 | View details |
Details
Product information
Overview

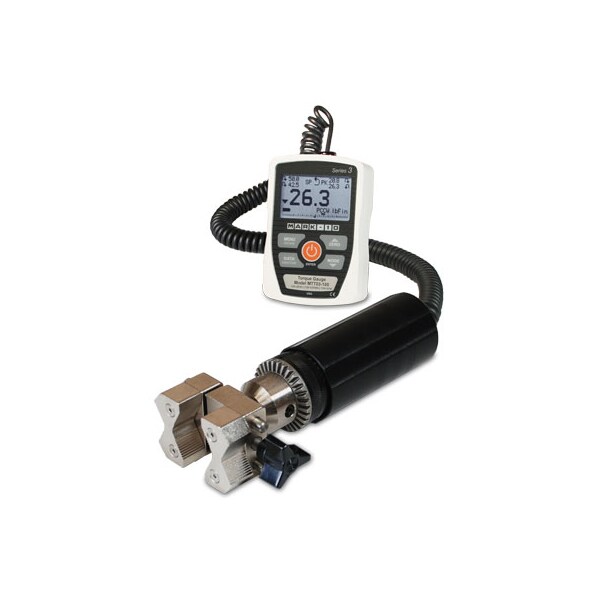

Mark-10 Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.
- Ergonomic torque sensor with Jacobs chuck
- Peak torque values saved and displayed
- High-speed 2,000 Hz sampling rate
- USB data output (for continuous output, see Model 5i indicator with Series R50 torque sensor and suitable grip)
- Programmable set points with pass/fail indicators
- Live load bar graphs with set point markers
- Peak memory for clockwise and counter clockwise readings
- Set points always displayed
- Configurable audio alarms and key tones
- MESUR Lite data collection software included
- Battery or AC operation
- Safe overload: 150% of capacity
- CE mark
| Accuracy: | ±0.5% of full scale ±1 digit |
| Cap dia. range |
0.65 - 1.55 in. [16.5 - 39.4 mm] |
| Sampling rate: | 2,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units: | lbFin, kgFmm, Ncm |
| USB Output: | Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings: | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight: | 2.2 lb [1.0 kg] |
| Included items: | Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge) |
| Environmental requirements: | 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Warranty: | 3 years (see individual statement for further details) |
| Features & Benefits | |
|---|---|
| Accuracy: ±0.5% of full scale ±1 digit | |
| Sampling rate: 2,000 Hz | |
| Cap dia. range: 0.65 - 1.55 in. [16.5 - 39.4 mm] | |
| From $1354 | |
| Sampling rate: 2 | |
| 000 Hz |
