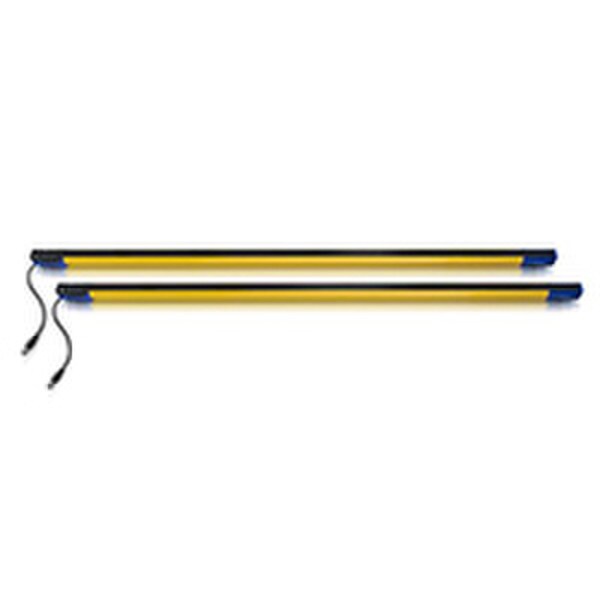

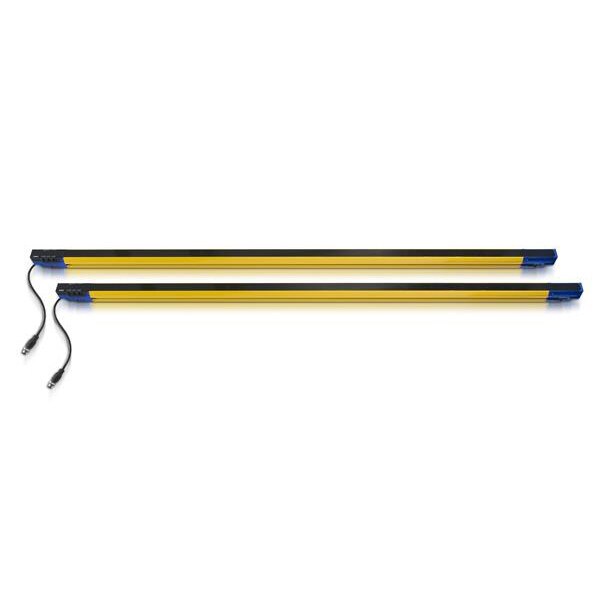

SG4-14-120-OO-P | SG4 EXTENDED safety light curtain type 4 res=14mm h=1200mm edm man/auto coded programmable
SG4 EXTENDED is a Type 4 safety light curtain, with finger and hand resolution, that perfectly combines easy of use with applicative flexibility, reliability and performance.
$2,811.05List $4,791.57
Save $1,980.52Total$2,811.05Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
- PDFDatalogic SG4 Extended Series Light Curtains Manual (PDF)Open
- PDFDatalogic SG4 Extended Series Light Curtains Connection Guide (PDF)Open
- PDFDatalogic SG4 Extended Series Light Curtains DONGLE Instructions (PDF)Open
- PDFDatalogic SG4 Extended Series Light Curtains Brochure (PDF)Open
- PDFDatalogic Safety Systems Catalog (PDF)Open
- PDFDatalogic Safety Systems Product Guide (PDF)Open
957901300 | SG4-14-120-OO-P | SG4 EXTENDED safety light curtain type 4 res=14mm h=1200mm edm man/auto coded programmableSG4-14-120-OO-P
Total$2,811.05
1
Details
Product information
Overview
Datalogic SG4-14-120-OO-P / 957901300
SG4 EXTENDED safety light curtain type 4 res=14mm h=1200mm edm man/auto coded programmable
SG4 EXTENDED is a Type 4 safety light curtain, with finger and hand resolution, that perfectly combines easy of use with applicative flexibility, reliability and performance.
Totally zero dead zone and series connection of up to three units (cascade) are the distinctive characteristic of all models, from 300 mm to 1800 mm of height.
Integrated functions as total and partial muting, fixed and movable blanking guarantee full application coverage.
Configuration of functions and parameters can be set two ways:
- For common applications: Basic Configuration Mode (BCM) easy and fast with pushbuttons
- For more complex applications: Advanced Configuration Mode (ACM), with a Graphical User Interface (GUI) installed on a PC and connected through Ethernet
Features:
- Type 4
- 14 mm (finger) or 30 mm (hand)
- Compact dimensions (35 x 41 mm section)
- Zero dead zone
- Up to 20 m operating distance (7 m for 14 mm resolution)
- 300-1800 mm controlled height
- Basic Configuration Mode (BCM) through push-buttons
- Advanced Configuration Mode (ACM) through graphic user interface
- Cascade up to 3 units
- Integrated muting function
- Integrated fixed and floating blanking function
- Dongle (accessory) for:
- Configuration cloning
- Ethernet (Tcp/Ip connection)
- Remote monitoring
- Remote programming
- Error logging
Applications:
- Automotive
- Packaging
- Metalworking
- Woodworking
- Electronics
| Technical Specifications | |
|---|---|
| Sensing Distance | 0.2 to 7 m |
| Resolution | 14 mm |
| Protected Height | 1200 mm |
| Number of Rays | 128 |
| Sensitivity Adjustment | Teach-in/GUI |
| Effective Aperture Angle | 2.5° |
| Principle | Emitter + Receiver |
| Available Functions | Programmable Muting & Blanking |
| Description | Compact no-dead-zone programmable |
| Functions | Finger protection, 14 mm resolution, programmable |
| Safety Type | Type 4 safety light curtain (A/M) |
| SIL | 3 |
| SILCL | 3 |
| Performance Level (PL) | e |
| PFHd | 8.40E-09 |
| DCavg | 98.80% |
| MTTFd | 131 years |
| Output Type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response Time | 25 ms |
| Cascade Response Time (Master + 1 Slave) | Tmaster + Tslave1 + 7.5 ms |
| Cascade Response Time (Master + 2 Slaves) | Tmaster + Tslave1 + Tslave2 + 7.5 ms |
| Operating Voltage | 24 Vdc 20% |
| Load Current | 500mA per output |
| Emission | Infrared LED (950 nm wavelength) |
| External Light Interference | According to IEC 61496-2 |
| Power Consumption (Receiver) | 5W (no load) |
| Power Consumption (Emitter) | 3W |
| Cable Length (Power/Output) | 50m |
| Cable Length (Master-Slave) | 1m (Master-Slave Cable) |
| Dimensions | 35 x 40.75 x 1206.3 mm |
| Connections | Emitter: M12 5-pole pigtail; Receiver: M12 12-pole + M12 5-pole / M12 12-pole pigtails |
| Storage Temperature | -25 to +70°C |
| Housing Material | Painted aluminum / PMMA / PBT Valox 508 / PC LEXAN |
| Vibration Resistance | Width 0.35 mm, frequency 10 to 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shock Resistance | 10 G for 16 ms, 1,000 shocks per axis (EN 60068-2-29) |
| EMC Compatibility | According to 2014/30/EU Directive |
| Supplied Accessories | Standard ""L"" Mounting Brackets: 6 pcs kit |
| Network Interface | Ethernet TCP/IP |
| Operating Temperature | 0 to +50°C |
| Operating Humidity | 15 to 95 % (no condensation) |
| IP Rating | IP65 |
| MPN | SG4-14-120-OO-P |
