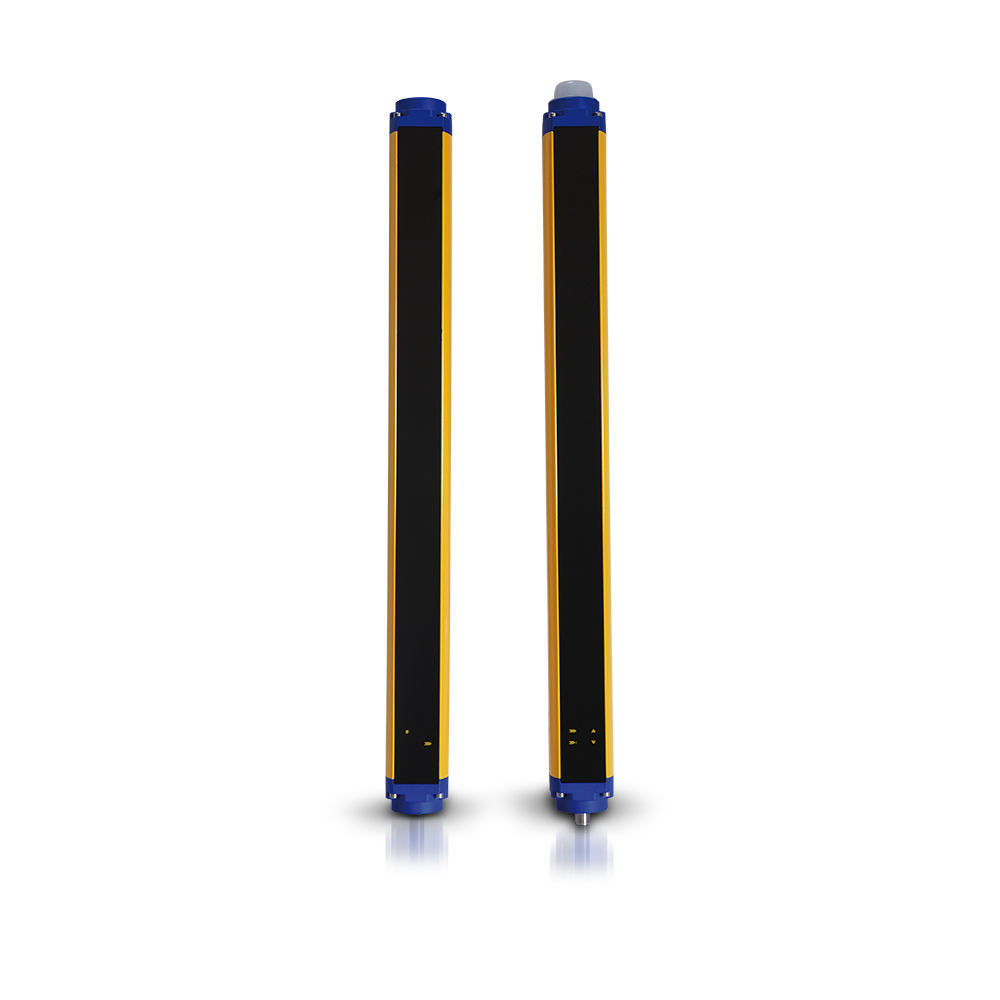

SG4-RB3-080-OO-W | SG BODY REFLECTOR MUTING safety multiple beam type 4 3 beams h=800mm edm man/auto muting active side
SG BODY REFLECTOR (BASE and MUTING) are body protection Type 4 safety light curtains consisting of one active and one passive part, thus reducing installation, wiring time and costs.
$593.08List $1,010.94
Save $417.86Total$593.08Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
- PDFDatalogic SG Body Reflector Base Light Curtain Manual (PDF)Open
- PDFDatalogic SG Body Reflector Muting Light Curtain Manual (PDF)Open
- PDFDatalogic SG Body Reflector Light Curtain Brochure (PDF)Open
- PDFDatalogic SG Body Reflector vs SE4 R Compatibility Guide (PDF)Open
- PDFDatalogic Safety Systems Catalog (PDF)Open
- PDFDatalogic Safety Systems Product Guide (PDF)Open
957951040 | SG4-RB3-080-OO-W | SG BODY REFLECTOR MUTING safety multiple beam type 4 3 beams h=800mm edm man/auto muting active sideSG4-RB3-080-OO-W
Total$593.08
1
Details
Product information
Overview
Datalogic SG4-RB3-080-OO-W / 957951040

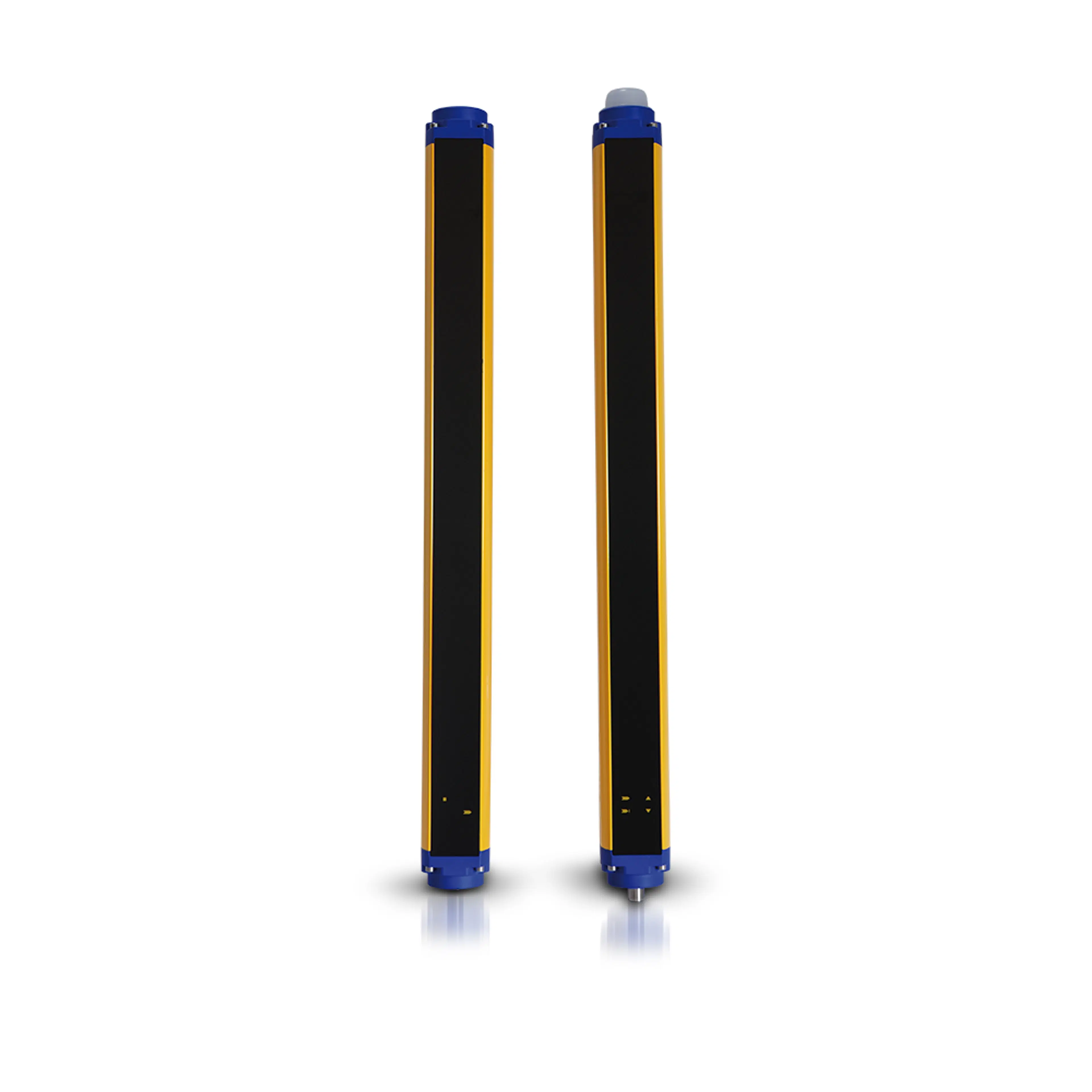

SG BODY REFLECTOR MUTING safety multiple beam type 4 3 beams h=800mm edm man/auto muting active side
SG BODY REFLECTOR (BASE and MUTING) are body protection Type 4 safety light curtains consisting of one active and one passive part, thus reducing installation, wiring time and costs.
The sturdy housing and the optical-electronic characteristics, similar to SG BODY BIG, guarantee their reliability in harsh environments and alignment stability.
SG BODY REFLECTOR MUTING can also have T and L muting sensors, and all advanced features related to muting, like anti-interference coding, edged or triggered override, and external muting enable signal.
Features:
- 2, 3, 4 beams with 500, 800, 900 and 1200mm controlled heights
- One active part (emitter and receiver) and one passive part (mirrors)
- Big sturdy profile: 52 x 56 mm (2.08 x 2.24 in)
- 3 different types of mounting brackets (swivelling side for "thin mounting", top-bottom and rear)
- User interface: 4 or 2 LEDs + 7 segment display
- Operating distance up to 8 m
- Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY REFLECTOR MUTING)
- Models with pre-assembled and pre-cabled retroreflective polarized muting sensors (only SG BODY REFLECTOR MUTING)
- Advanced features: Anti-interference coding, edged or triggered override, external muting enable signal
Applications:
- Automatic machines
- Robots
- Automatic assembling lines
- Palletizers and Depalletizers
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 0.5 - 8 m |
| Resolution | 400 mm |
| Controlled Height | 800 mm |
| Number of Beams | 3 |
| Sensitivity Adjustment | DIP-switch |
| Effective Aperture Angle | 2.5° |
| Principle | Transceiver (Active side) |
| Available Functions | Manual/Automatic Restart, EDM, L/T Muting, Override, Muting Enable, Muting Filter |
| Description | Big RRX active unit |
| Functions | Body protection 3 beams muting |
| Safety Type | Type 4 safety light curtain (A/M) |
| SIL | 3 |
| SILCL | 3 |
| Performance Level (PL) | e |
| PFHd | 8.57E-09 |
| MTTFd | 439 years |
| SFF | 97.50% |
| Output Type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response Time | 11.5 ms |
| Operating Voltage | 24 Vdc 20% |
| Load Current | 500mA per output |
| Emission | Infrared LED (950 nm) |
| External Light Immunity | According to IEC 61496-2 |
| Power Consumption (Active Unit) | 6.5W (no load) |
| Power Consumption (Passive Unit) | n/a |
| Max Cable Length | 70m |
| Dimensions (Overall) | 52 x 56.9 x 909.35 mm |
| Connections | M12 12-pole + M12 5-pole (Active Unit) |
| Storage Temperature | -25 to +70°C |
| Housing Material | Painted aluminum / PMMA / PBT Valox 508 |
| Vibration Resistance | Width 0.35 mm, frequency 10 to 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shock Resistance | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| EMC Compatibility | According to 2014/30/EU Directive |
| Operating Temperature | 0 to +55°C |
| Operating Humidity | 15 - 95 % (no condensation) |
| IP Rating | IP65 |
| MPN | SG4-RB3-080-OO-W |
