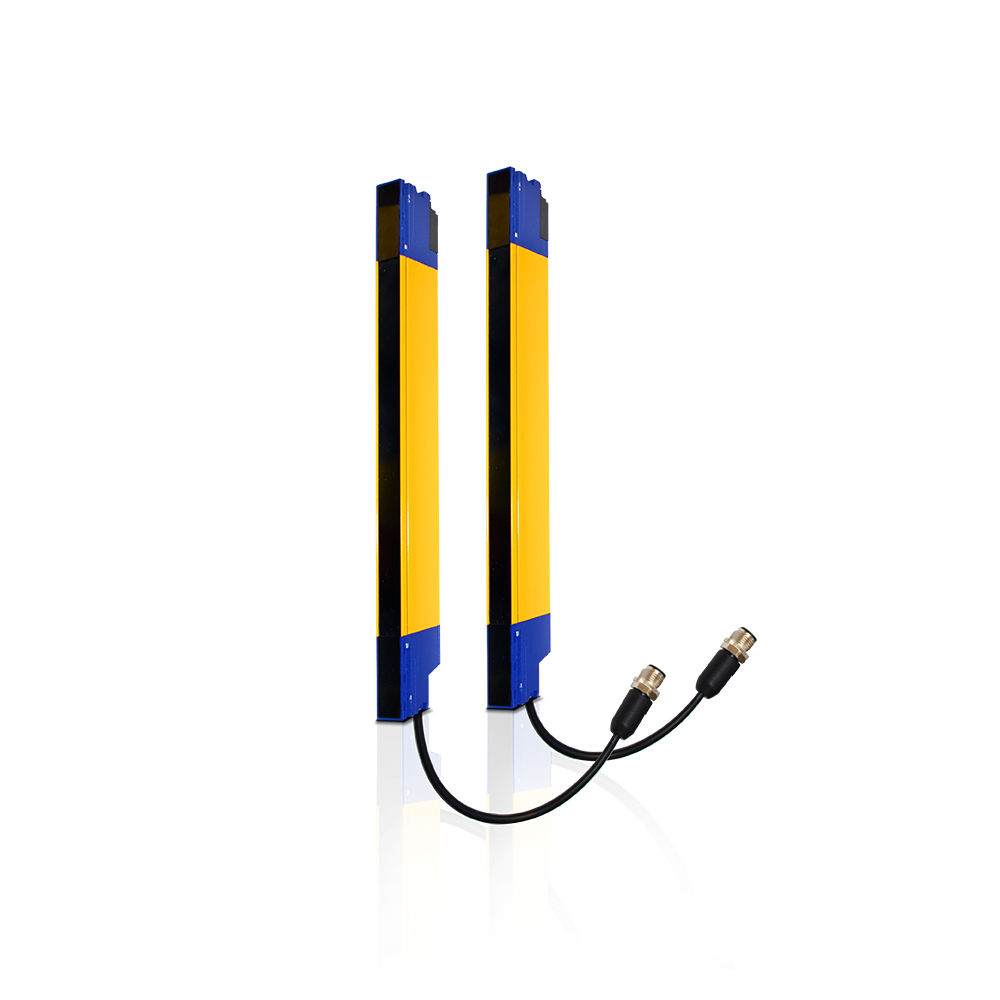

SL2-34-0780-E | SLIM safety light curtain type 2 res=34mm h=780mm edm man/auto
SLIM safety light curtain is the perfect solution to protect machines where space saving and simplicity of use are the main requirements. The large choice of available lengths and resolutions, and the three different type of brackets make its mechanical installation higly versatile.Up to three units can be connected to protect the sides of a single dangerous area without losing resolution in the corners.The configuration of basic functions (automatic or manual restart and external device monitoring) is done by wiring, making its use and maintenance easy and fast.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic SL2-34-0780-E / 957911890
SLIM safety light curtain type 2 res=34mm h=780mm edm man/auto
SLIM safety light curtain is the perfect solution to protect machines where space saving and simplicity of use are the main requirements. The large choice of available lengths and resolutions, and the three different type of brackets make its mechanical installation higly versatile.Up to three units can be connected to protect the sides of a single dangerous area without losing resolution in the corners.The configuration of basic functions (automatic or manual restart and external device monitoring) is done by wiring, making its use and maintenance easy and fast.
Features:
- SLIM profile: 15 x 32 mm
- 34 different protection lengths (from 150 to 1200 mm) with up to 30 mm modularity
- Pigtail cable with 5-poles connectors
- No Dead Zone
- 14, 24 and 34 mm resolutions
- Three different brackets shapes availables
- Cascadability up to three units
- Auto/Manual restart and EDM function configuration by wiring
- LED display messages diagnosis
Applications:
- Food & Beverage, Processing and Packaging
- Electronics and mechanics assembly machinery
- Quality inspection
- Material Handling
| Technical Specifications | |
|---|---|
| Sensing Distance | 0.2 to 6 m |
| Resolution | 34 mm |
| Controlled Height | 780 mm |
| Number of Beams | 27 |
| Sensitivity Adjustment | n/a |
| Effective Aperture Angle | 5° |
| Principle of Operation | Emitter + Receiver |
| Available Functions | Manual/Automatic Restart, EDM |
| Product Description | SLIM no-dead-zone cascadable |
| Primary Function | Hand protection res. 34 mm |
| Safety Category | Type 2 safety light curtain (A/M) |
| SIL | 1 |
| SILCL | 1 |
| Performance Level (PL) | c |
| PFHd | 1.04E-08 |
| MTTFd | 273 years |
| Output Type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response Time | 11.8 ms |
| Response Time (Master + 1 Slave) | 18 ms |
| Response Time (Master + 2 Slaves) | 20 ms |
| Operating Voltage | 24 Vdc 20% |
| Load Current | 500mA each output |
| Light Source | Infrared LED (850 nm) |
| External Light Immunity | According to IEC 61496-2 |
| Power Consumption (Receiver) | 4.2W (no load) |
| Power Consumption (Emitter) | 1.6W |
| Max Cable Length (Power/Output) | 20m |
| Max Cable Length (Master-Slave) | 1m (Master-Slave Cable) |
| Dimensions | 15.4 x 32.6 x 780 mm |
| Housing Dimensions | 15 x 33 x 780 mm |
| Connection | M12 5-pole pigtail (Emitter and Receiver) |
| Storage Temperature | -25 to +70°C |
| Housing Material | Metal - Aluminium / PMMA / Painted Zamak |
| Vibration Resistance | Width 0.35 mm, frequency 10 to 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shock Resistance | 10 G for 16 ms, 1,000 shocks per axis (EN 60068-2-29) |
| EMC Compatibility | According to 2014/30/EU Directive |
| Supplied Accessories | C-shaped Brackets (2 pcs kit), O-shaped Brackets (4 pcs kit) |
| Operating Temperature | -10 to +55°C |
| Operating Humidity | 15 to 95 % (no condensation) |
| IP Rating | IP65 |
| MPN | SL2-34-0780-E |
