Datasensing95B000080

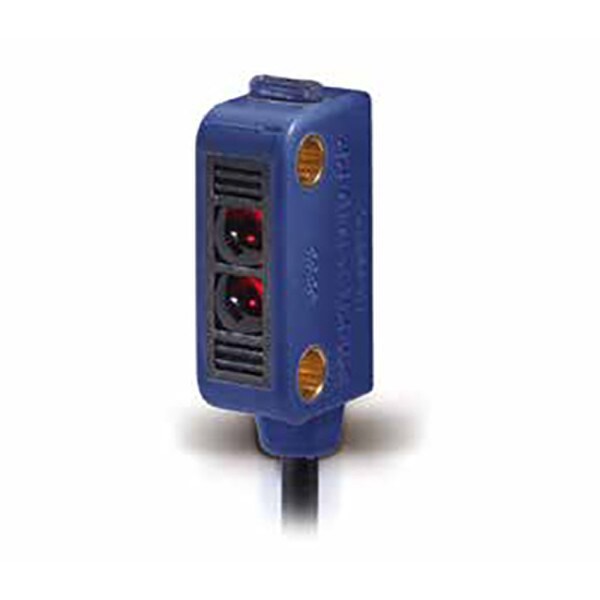

SM-PR-2-B00-PP | Sm Mini Square Photoelectric Sensor, Reflex Polarized Plastic Radial Pnp No/Nc - 2 Mt Cable
The subminiature SMall series is a photoelectric sensor basic line offering through beam, retroreflex polarized and accurate fixed focus proximity models able to guarantee very precise detection, with red LED emission to simplify installation procedures, suitable for applications with reduced spaces.
$93.01List $158.54
Save $65.53Total$93.01Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B000080 | SM-PR-2-B00-PP | Sm Mini Square Photoelectric Sensor, Reflex Polarized Plastic Radial Pnp No/Nc - 2 Mt CableSM-PR-2-B00-PP
Total$93.01
1
Details
Product information
Overview
Datalogic SM-PR-2-B00-PP / 95B000080
Sm Mini Square Photoelectric Sensor, Reflex Polarized Plastic Radial Pnp No/Nc - 2 Mt Cable
The subminiature SMall series is a photoelectric sensor basic line offering through beam, retroreflex polarized and accurate fixed focus proximity models able to guarantee very precise detection, with red LED emission to simplify installation procedures, suitable for applications with reduced spaces.
Features:
- CGood reading performance: high detection repeatability especially for the fixed focus models
- Basic line: suitable for the main industrial applications
- Miniature housing: suitable for applications with reduced space
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
| Technical Specifications | |
|---|---|
| Sensing Distance | 1m |
| Sensitivity Adjustment | n/a |
| Sensing Principle | Polarized retroreflective |
| Description | Subminiature slim case |
| Optic Position | Radial 90° |
| Output Type | PNP NO+NC |
| Output Function | NO+NC |
| Switching Frequency | 590Hz |
| Response Time | 0.7ms |
| Operating Voltage | 10 to 30VDC |
| No-Load Supply Current | 20mA |
| Load Current | 50mA |
| Output Voltage Drop | 1.45V @ Iload=50mA |
| LED Indicators | Yellow (output status) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Light Source | LED Red (640nm) |
| External Light Immunity | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | 8x23x12 mm |
| Housing Material | Plastic PC / Glass |
| Connection | 2m cable |
| Lens Material | PMMA |
| Storage Temperature | -35°C to +75°C |
| Housing Style | Cubic |
| Approvals | CE, cULus |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -20°C to +55°C |
| IP Rating | IP67 |
| MPN | SM-PR-2-B00-PP |
