Ingersoll RandSM2AMC-A

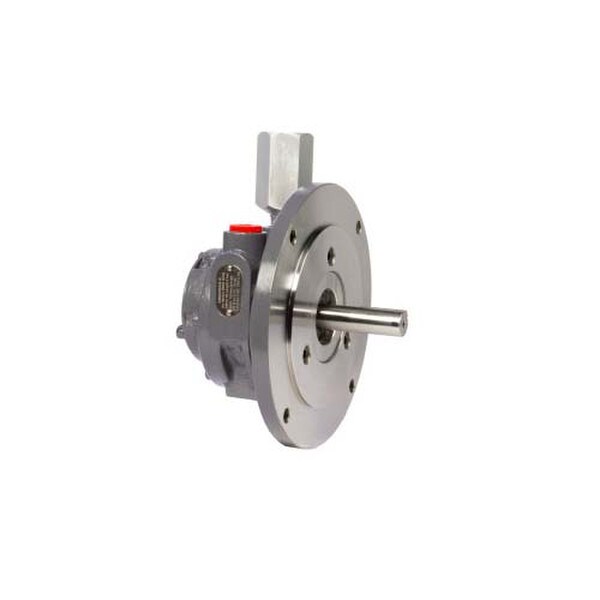

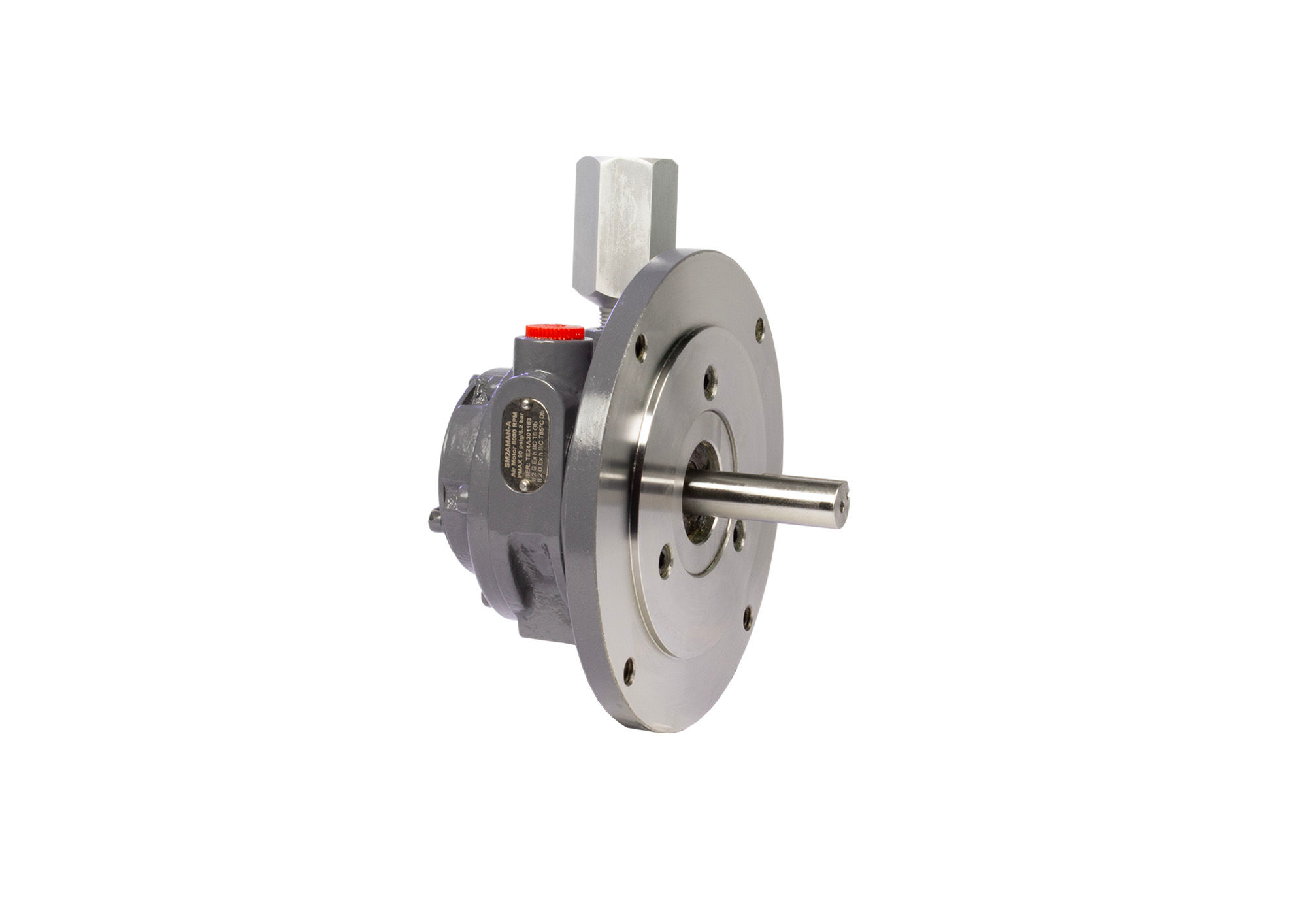

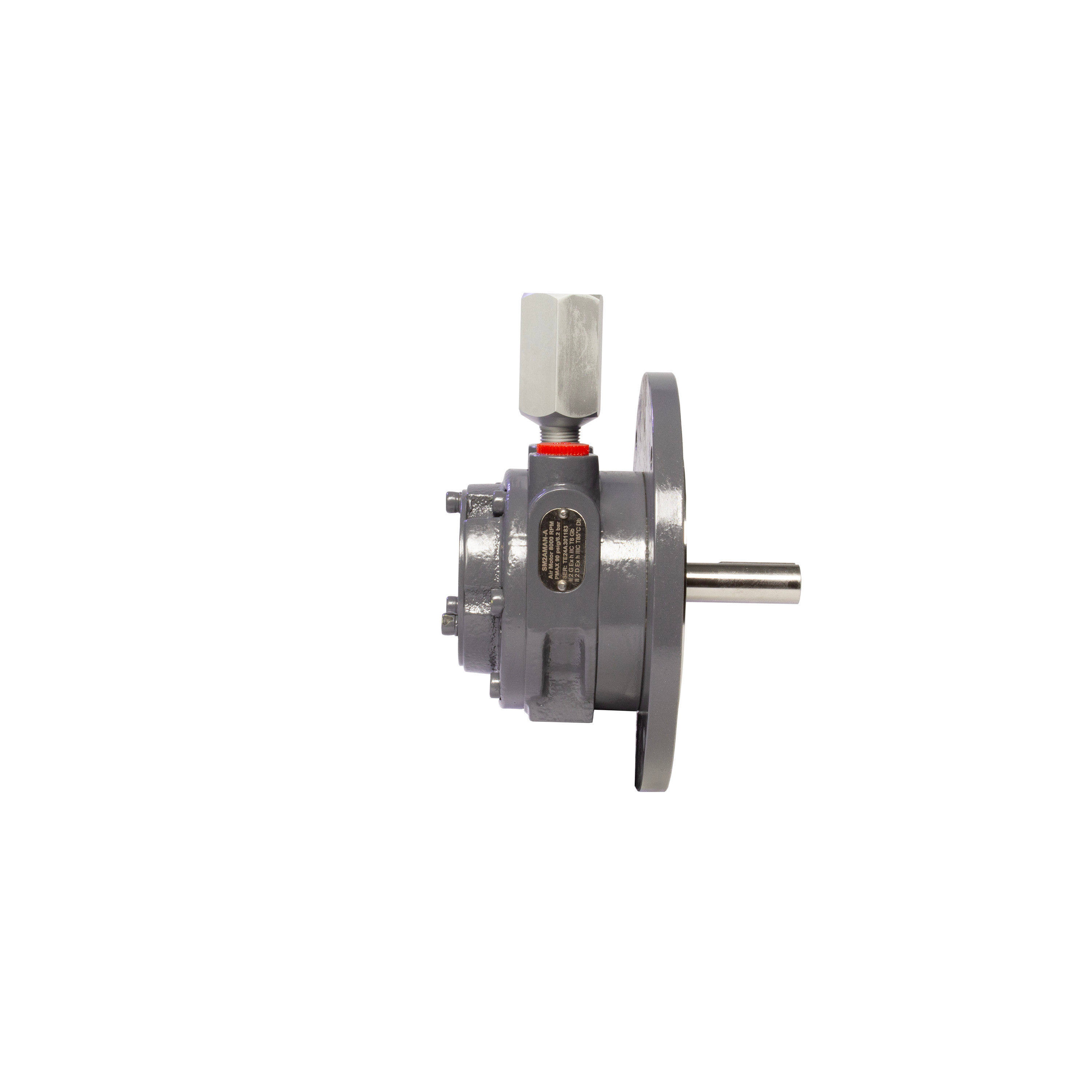

Lube-Free Multi-Vane Air Motor, 1/2 Round Flat on Shaft, 0.9HP, 1.7ft-lb, 8000 RPM, Foot/Face Mount
Ingersoll Rand 's SM2AMC-A Lube Free Air Motor is known for it's reduced maintenance and deliverance of maximum horsepower in a compact size. An ideal choice for applications that require portability and space efficiency.
$345.94List $450.00
Save $104.06Total$345.94Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
SM2AMC-A | Lube-Free Multi-Vane Air Motor, 1/2 Round Flat on Shaft, 0.9HP, 1.7ft-lb, 8000 RPM, Foot/Face MountSM2AMC-A
Total$345.94
1
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|

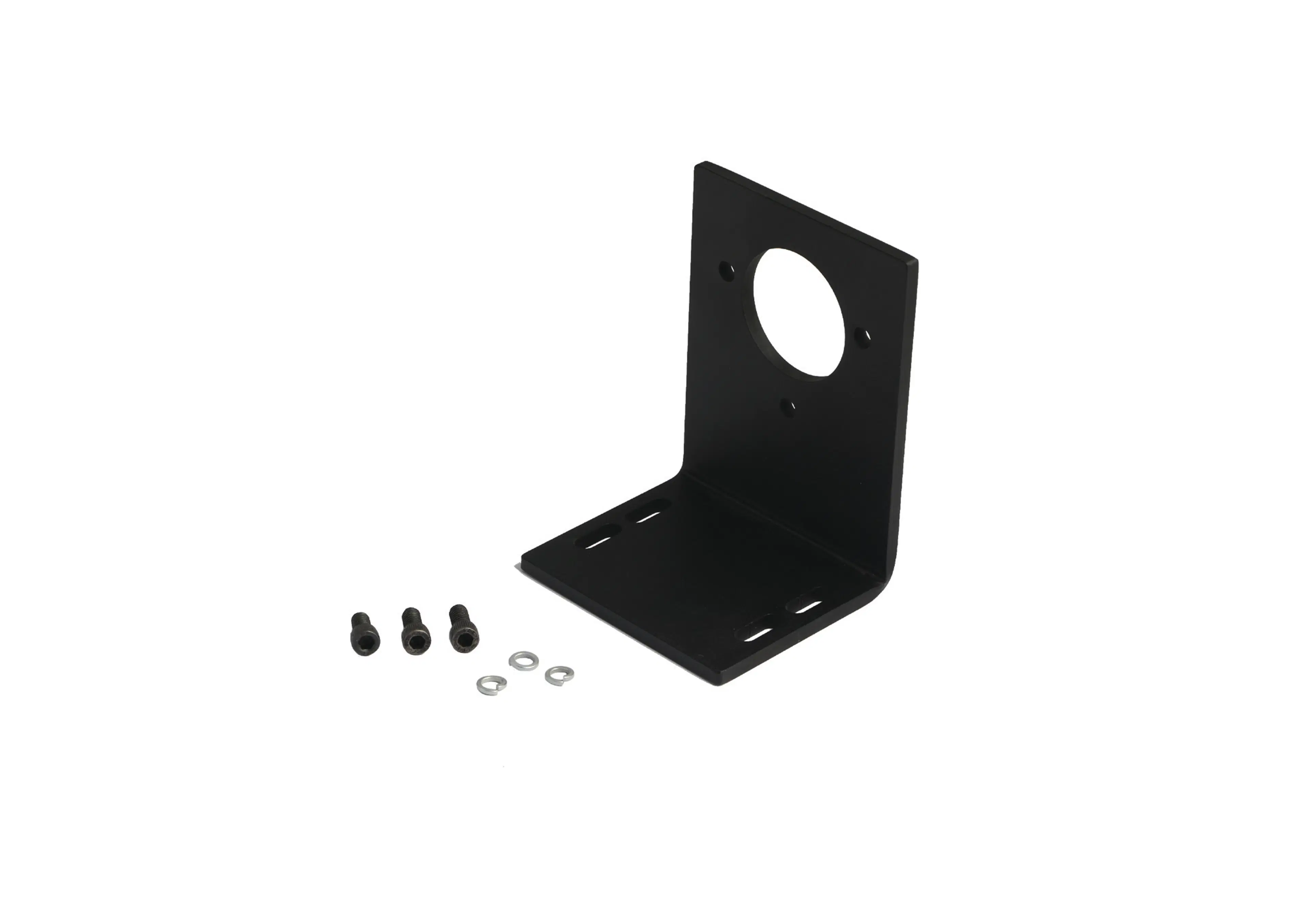

 SM2AM-AH636-ASM2AM-AH636-A | Mounting Foot for SM2AM Air Motors | SM2AM-AH636-A | 1 | View details | |
 SM2AMAN-005-ASM2AMAN-005-A | Vane Kit for SM2AMAN Air Motors | SM2AMAN-005-A | 1 | View details | |

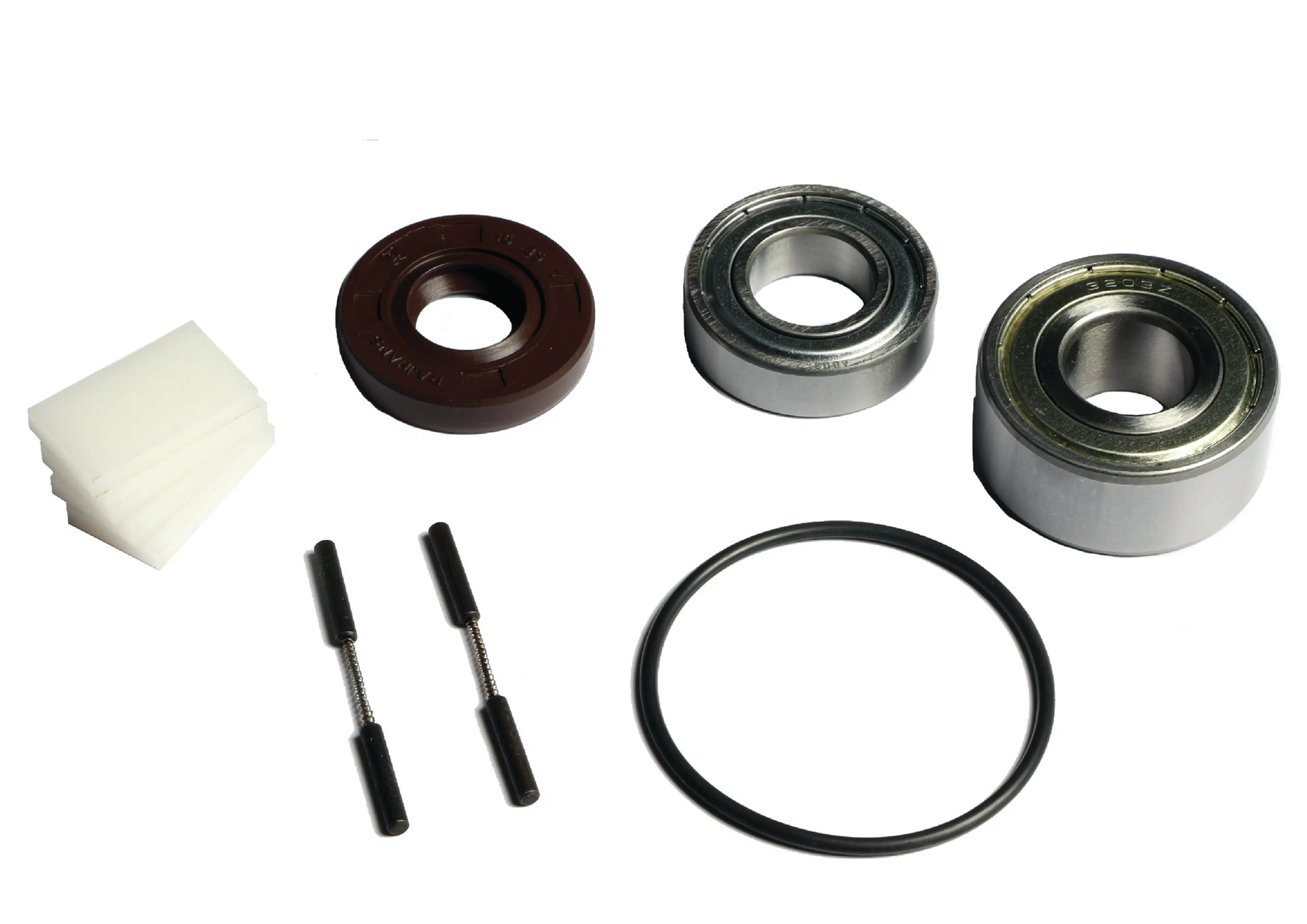

 SM2AMAN-TK1-ASM2AMAN-TK1-A | Tune-Up Kit for SM2AMAN Air Motors | SM2AMAN-TK1-A | 1 | View details |
Details
Product information
Overview
Tackle Harsh Environments with Ingersoll Rand's SM2AMC-A Air Motor which features a self-regulating cooling system for consistent performance and longevity.
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 3/8"-18 NPT |
| Air Pressure (PSI) | 90 |
| Drive Size | 1/2" |
| Max Torque (ft-lb) | 2.3 |
| Max Torque (in-lb) | 27 |
| Max Torque (Nm) | 3.1 |
| Free Speed (RPM) | 8000 |
| Drive Type | Round Flat on Shaft |
| Motor Type | Rotary Vane |
| Power (HP) | 0.9 |
| Weight (lbs) | 9.15 |
| Weight (kg) | 4.15 |
| Length (in) | 4.62 |
| Length (mm) | 117 |
| Width (in) | 3.74 |
| Width (mm) | 95 |
| Height (in) | 6.42 |
| Height (mm) | 163 |
| Housing Material | Steel |
| MPN | SM2AMC-A |
| Features & Benefits | |
| Ideal for Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps | |
| Lube free airline operation provides clean, consistent performance that minimizes downtime | |
| Seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop | |
| Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions | |
| ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components. | |
| Ideal for Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps,Lube free airline operation provides clean, consistent performance that minimizes downtime,Seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop,ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components. | |
