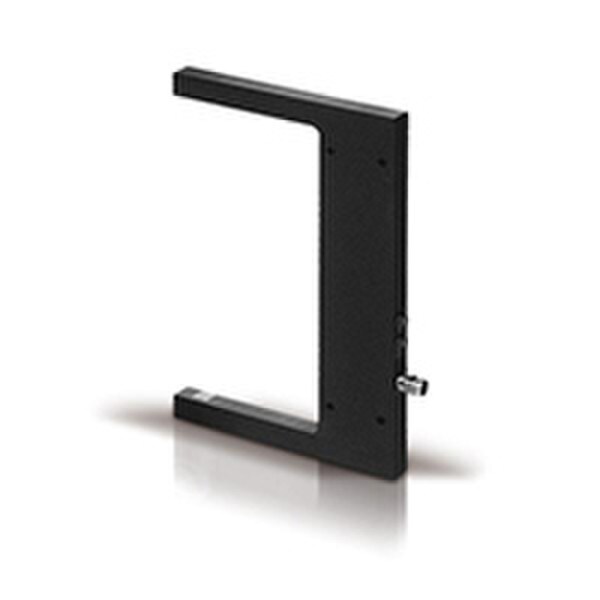

SRF-80-5-N | LED Fork Sensor, NPN, M8 Connector
The slot sensors of the SRF series are photoelectric devices characterized by an excellent precision thanks to the red LED emission which offers resolutions reaching 0.3mm or class II laser emission for resolutions down to 0.03mm. High precision and reading repeatability are obtained thanks to the laser emission combined with high switching frequency. The SRF series presents versions with 30, 50, 80 and 120mm slots guaranting best adaptation to the many different applications. Sensitivity adjustment is easily accomplished thanks to the trimmer positioned on the back side of the sensor. The range offers versions with PNP or NPN output, Light/Dark mode selection.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic SRF-80-5-N, 95B020110
Srf Fork Sensor 80Mm. Slot Npn - M8
The slot sensors of the SRF series are photoelectric devices characterized by an excellent precision thanks to the red LED emission which offers resolutions reaching 0.3mm or class II laser emission for resolutions down to 0.03mm. High precision and reading repeatability are obtained thanks to the laser emission combined with high switching frequency. The SRF series presents versions with 30, 50, 80 and 120mm slots guaranting best adaptation to the many different applications. Sensitivity adjustment is easily accomplished thanks to the trimmer positioned on the back side of the sensor. The range offers versions with PNP or NPN output, Light/Dark mode selection.
Features:
- Trimmer setting: easy and fast setting procedure
- Laser models: high detection repeatability for a precise reading
- Dark/Light mode setting: adaptability to customer applications
- Availability of 30, 50, 80 and 120mm slots: suitable for all the industrial applications
Applications:
- Packaging lines
- Automatic machine
- Automotive
- Elettronic industry
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 80mm |
| Minimum Detectable Object | 0.50mm |
| Sensitivity Adjustment | Trimmer |
| Principle of Operation | Fork for small object detection |
| Description | Slim case - fork slot 80x54 mm |
| Functions | Fork for small object detection |
| Output Type | NPN L/D Selectable |
| Output Function | L/D Selectable |
| Switching Frequency | 1.5kHz |
| Response Time | 0.33ms |
| Operating Voltage | 10 to 30VDC |
| No-Load Supply Current | 35mA |
| Load Current | 200mA |
| Output Voltage Drop | 2.5V |
| LED Indicators | yellow OUTPUT LED, green STABILITY LED |
| Emission Type | LED Red |
| External Light Immunity | according to EN 60947-5-2 : 2020 |
| Dimensions | 10x100x79 mm |
| Housing Material | Metal - Gd-Zn / Glass |
| Connection | M8 plug 4pin |
| Storage Temperature | -20°C to +70°C |
| Operating Temperature | -10°C to +60°C (Without freeze) |
| Protection Rating | IP67 |
| Approvals | CE cULus |
| Shock and Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| MPN | SRF-80-5-N |
