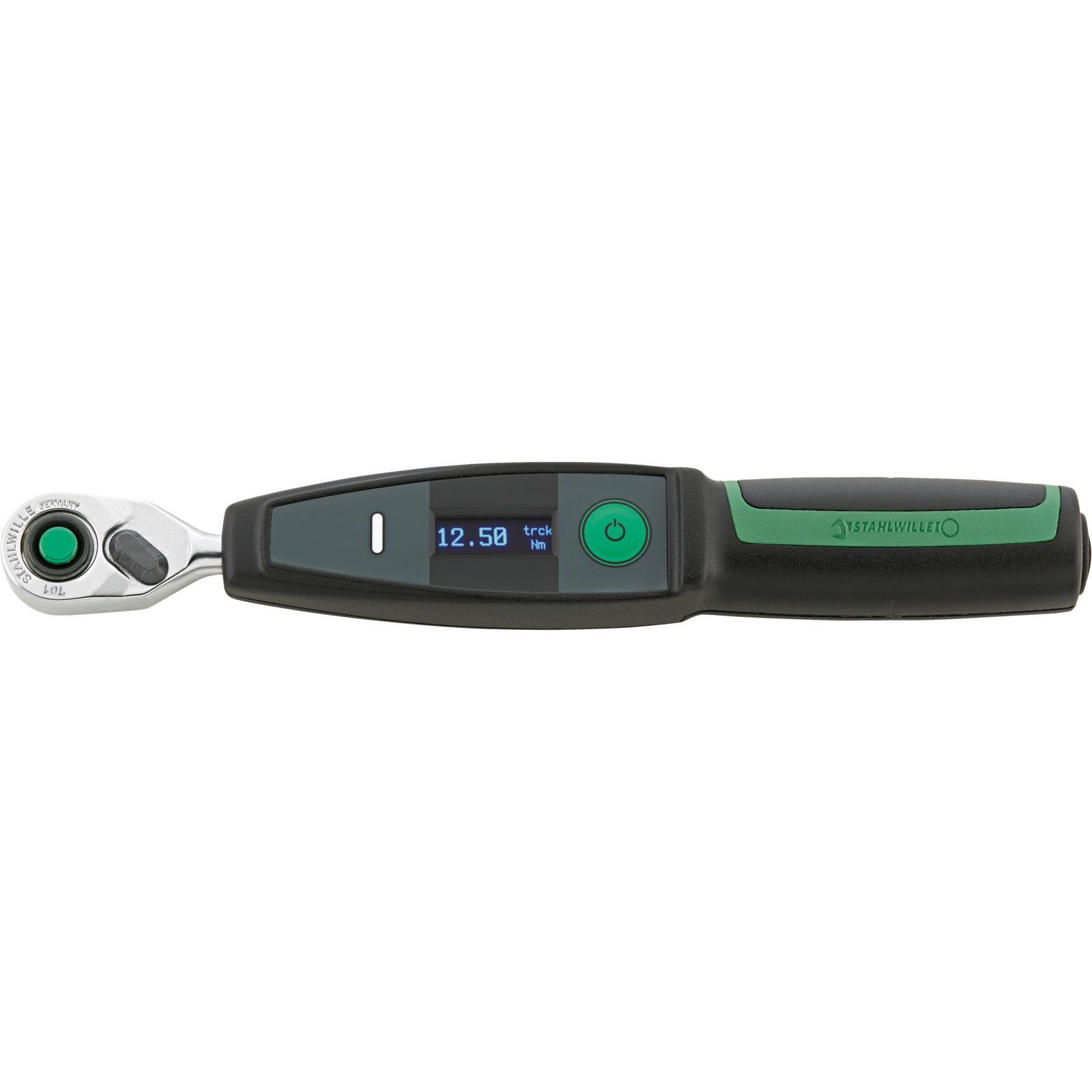

701/2 | Electronic Torque Wrench, no battery, 1/4'' square, in lbs
Overview
The Stahlwille Sensotork 701/2 electronic torque wrench is engineered for precision tightening in low-torque applications, starting from just 1 N·m. With a slim, compact housing, it excels in confined environments, especially where fine control and digital feedback are essential. This model includes a permanently installed fine-tooth ratchet, ensuring smooth operation in tight clearances.
The wrench displays readings in N·m, cN·m, ft·lb, and in·lb, and delivers torque measurements that are independent of hand position, reducing user error. A bright digital display and intuitive control panel offer straightforward operation.
Compatible with Stahlwille’s SENSOMASTER 4 software suite (available as a free download), the 701/2 supports advanced features such as:
- Programmable torque limits
- Visual/audible/vibration alerts via LEDs, buzzer, and haptic feedback
- Data logging and export
- Adjustable calibration intervals
- Custom joint types for application-specific programming
Powered by a 3.6V lithium battery (type 14500) and shipped per UN3091 Class 9 safety regulations, this tool is designed for daily precision work, whether in lab conditions, clean assembly, or aerospace-level QA.
Calibration is performed using the perfectControl® unit No. 7794 or system No. 7706, and the tool complies with DIN EN ISO 6789-2:2017, with a display deviation of ±4%.
Delivered in a durable plastic storage case, ready for immediate integration into your quality assurance workflow.
Features & Benefits
- Slim, compact body ideal for low-torque applications from 1 N·m upward
- Multiple measurement units: N·m, cN·m, ft·lb, in·lb
- Force-point independent accuracy — consistent results regardless of hand position
- Integrated fine-tooth ratchet for tight clearance operations
- Advanced programmable functions via SENSOMASTER 4 software
- Real-time alerts via LED, buzzer, and vibration
- Logging & interval tracking for audit-ready documentation
- ±4% accuracy, DIN EN ISO 6789-2:2017 certified
- Calibration without disassembly via perfectControl® systems
Technical Specifications
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
Does the 701/2 work in tight spaces?
Can I log torque readings for compliance purposes?
Yes. When connected to the free SENSOMASTER 4 software, the wrench supports logging and exporting torque data for audits or QA.
Is the wrench programmable for custom joint types?
Absolutely. SENSOMASTER 4 allows programming of specific joint types and adjustment of calibration intervals.
Does hand placement affect accuracy?
No. Torque measurement is independent of the point of force application, ensuring consistent results.
What kind of battery does it use?
A 3.6V lithium 14500 battery, included and packaged according to UN3091 Class 9 transport regulations.
