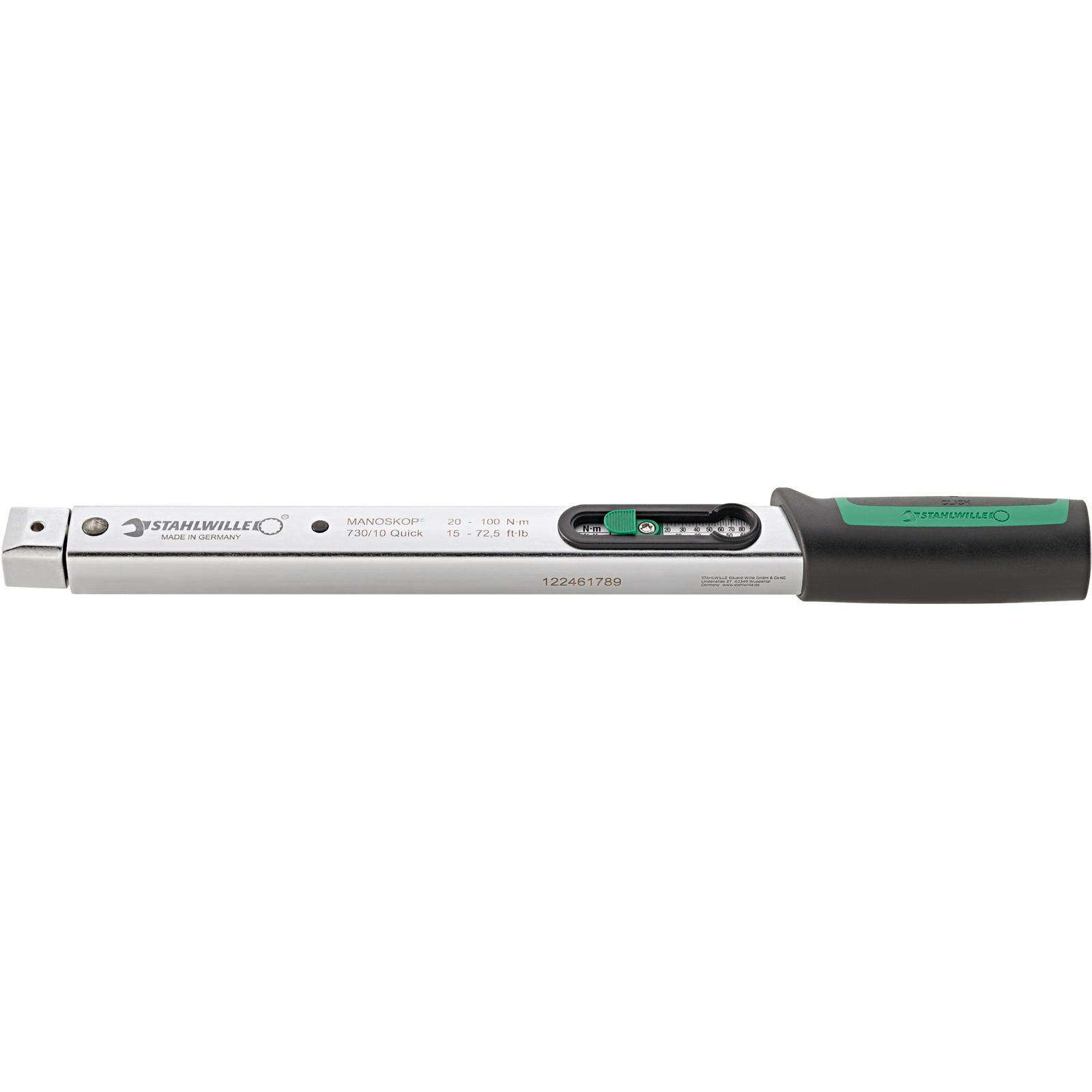

730/10quick | Click-Type Service Torque Wrench,9 x 12mm insert,20–100Nm
Overview
The Stahlwille 730/10quick is a service-oriented click-type torque wrench engineered for high precision, ease of use, and long-term reliability. Designed with a unique mechanism that only applies load while torque is being delivered, the 730 eliminates the need for manual resetting to zero, reducing wear and increasing durability.
Supporting interchangeable insert heads, the Mankoskop 730 is flexible across a wide range of fasteners and applications. The dual-scale display features a built-in magnifier for high readability, and the optimized convex handle promotes strain-free, ergonomic operation—even in extended use.
The Mankoskop 730 is suitable for both clockwise and anticlockwise torque tightening by reversing the insert head. It’s also engineered to resist damage from overload or reverse force beyond the trigger point, protecting the mechanism from misuse. Delivered with full DIN EN ISO 6789-2:2017 certification, this tool can be recalibrated using Stahlwille’s PerfectControl system—without needing disassembly.
Features & Benefits
- Click-type torque mechanism with audible and tactile signal
- Zero Reset-Free – reduces misuse and saves setup time
- Multi-Function Use – adaptable for various fastener types and directions
- Load-bearing only under applied torque—no zero-reset needed
- Interchangeable insert head system for flexible tool use
Technical Specifications
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What makes the 730/10quick different from traditional torque wrenches?
Can it be used for both clockwise and counterclockwise torque applications?
Yes. Simply rotate the interchangeable insert head to switch between directions.
Is the 730/10quick compatible with standard insert tools?
Yes, the 730 supports standard Stahlwille insert tools (interchangeable heads), including open-end, ring, and square drives.
Does the 730/10quick require disassembly for recalibration?
No. The 730/10quick can be recalibrated using the Stahlwille PerfectControl system without disassembly, streamlining maintenance.
