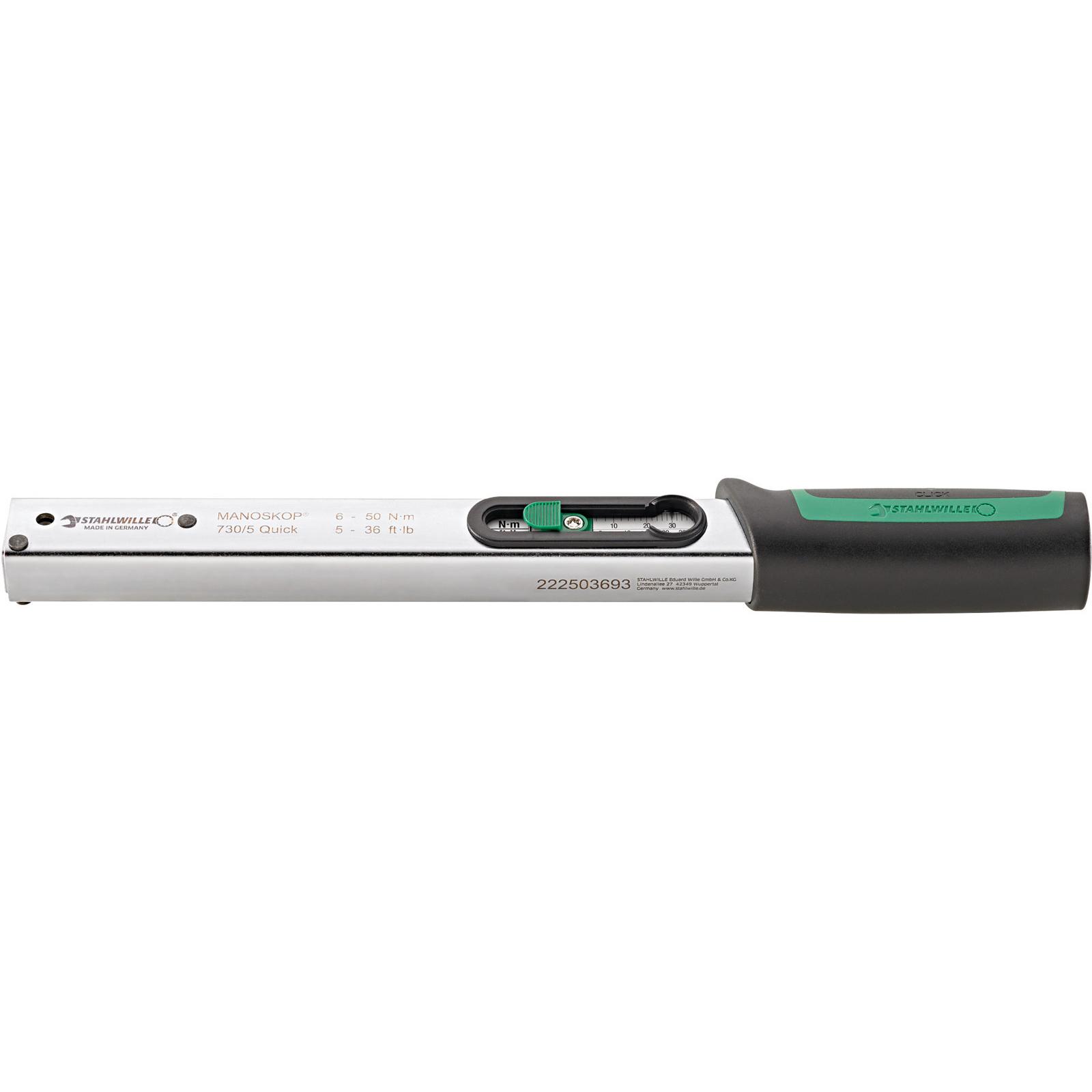

Click-Type Torque Wrench,9 x 12mm insert,6–50Nm
Stahlwille's 730/5quick click-type torque wrenches combine effortless accuracy with advanced ergonomics, built for reliable service and repair work across industries.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
The Stahlwille 730/5quick is a service-oriented click-type torque wrench engineered for high precision, ease of use, and long-term reliability. Designed with a unique mechanism that only applies load while torque is being delivered, the 730 eliminates the need for manual resetting to zero, reducing wear and increasing durability.
Supporting interchangeable insert heads, the Mankoskop 730 is flexible across a wide range of fasteners and applications. The dual-scale display features a built-in magnifier for high readability, and the optimized convex handle promotes strain-free, ergonomic operation—even in extended use.
The Mankoskop 730 is suitable for both clockwise and anticlockwise torque tightening by reversing the insert head. It’s also engineered to resist damage from overload or reverse force beyond the trigger point, protecting the mechanism from misuse. Delivered with full DIN EN ISO 6789-2:2017 certification, this tool can be recalibrated using Stahlwille’s PerfectControl system—without needing disassembly.
| Technical Specifications | |
|---|---|
| Manufacturer | Stahlwille |
| SKU | 50184005 |
| Series | MANOSKOP 730 Quick |
| Model | 730/5 Quick |
| Type | Torque Wrench |
| Style | Click-Type |
| Size | 5 |
| Torque Range (Nm) | 6 - 50 |
| Graduation (Nm) | 2 |
| Torque Range (ft lbs) | 5 - 36 |
| Graduation (Ft lbs) | 1 |
| Head Size (mm) | 9 x 12 |
| Length (mm) | 315 |
| Width (mm) | 28 |
| Height (mm) | 23 |
| Functioning Length (FL) (mm) | 288 |
| Standard Extension (SF) (mm) | 17.5 |
| Weight (lbs) | 1.72 |
| Weight (g) | 780 |
| MPN | 50184005 |
| Features & Benefits | |
| Click-type torque mechanism with audible and tactile signal | |
| Zero Reset-Free – reduces misuse and saves setup time | |
| Load-bearing only under applied torque—no zero-reset needed | |
| Multi-Function Use – adaptable for various fastener types and directions | |
| Interchangeable insert head system for flexible tool use | |
