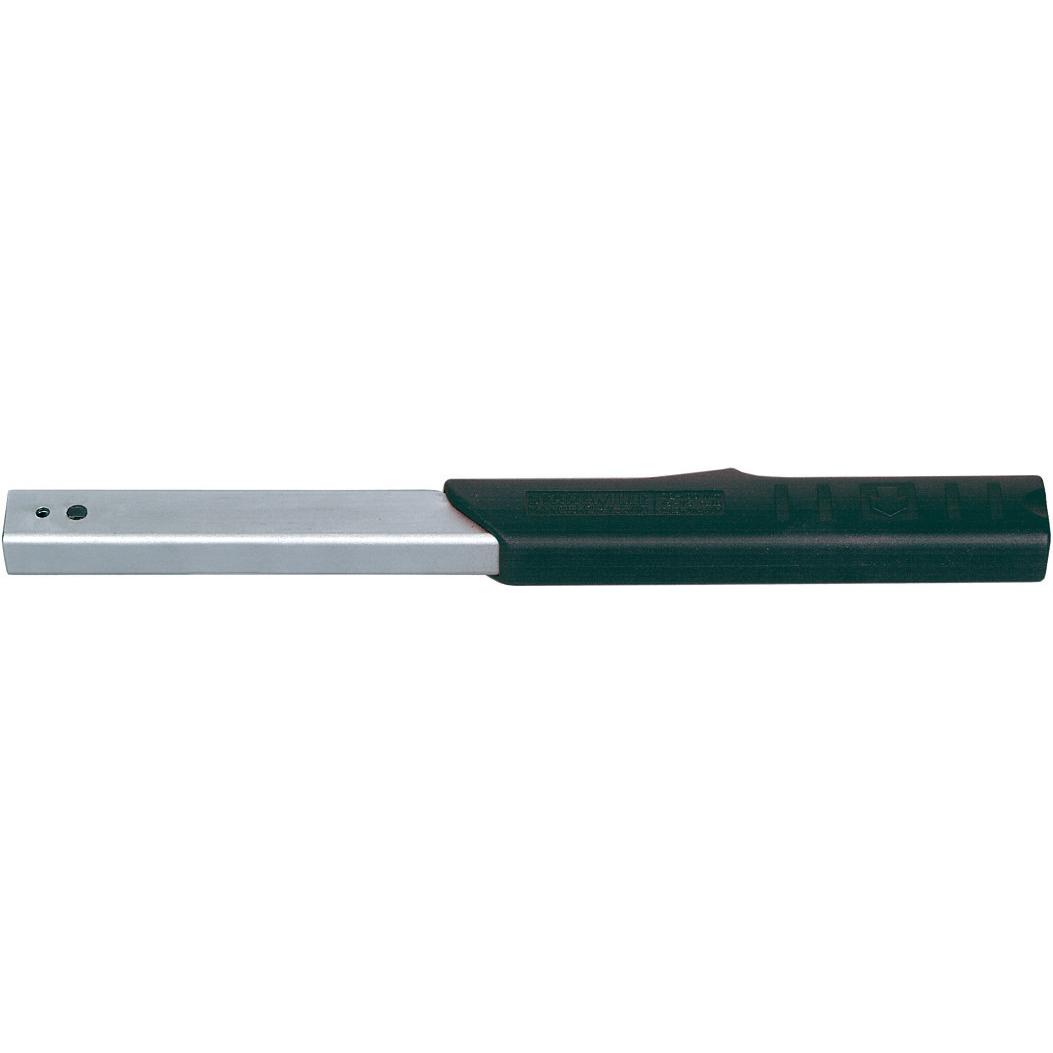

Click-Type Torque Wrench,9 x 12mm insert,20–100Nm
Stahlwille's 755/10 industrial torque wrench offers repeatable, preset torque control with interchangeable heads—engineered for fast-paced production environments and precision assembly lines.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
The Stahlwille 755/10 is a professional-grade, pre-set mechanical torque wrench designed specifically for high-volume industrial use. Ideal for assembly lines and repetitive torque applications, the 755 features a rugged design, ergonomic comfort, and tamper-proof torque settings that guarantee consistency shift after shift.
Equipped with an interchangeable head interface, the 755 allows technicians to use a wide range of insert tools while maintaining precise torque delivery. An internal mechanism delivers an unmistakable tactile and audible "click" when the set torque is reached, ensuring operator confidence and reducing the risk of overtightening.
The 755/10 is compliant with DIN EN ISO 6789-2:2017, supplied with a factory calibration certificate, and built to endure industrial stress without calibration drift or complex maintenance. It's the go-to solution for manufacturers demanding long-lasting accuracy, process security, and efficiency.
| Technical Specifications | |
|---|---|
| Manufacturer | Stahlwille |
| SKU | 50010010 |
| Series | MANOSKOP 755 |
| Model | 755/10 |
| Type | Torque Wrench |
| Style | Click-Type |
| Size | 10 |
| Torque Range (Nm) | 20 - 100 |
| Torque Range (ft lbs) | 15 - 74 |
| Head Size (mm) | 9 x 12 |
| Length (mm) | 318 |
| Width (mm) | 28 |
| Height (mm) | 24 |
| Functioning Length (FL) (mm) | 289 |
| Standard Extension (SF) (mm) | 17.5 |
| Weight (lbs) | 1.4 |
| Weight (g) | 635 |
| MPN | 50010010 |
| Features & Benefits | |
| Pre-set, tamper-proof torque configuration | |
| Audible/tactile click on torque achievement | |
| Suitable for clockwise torque applications | |
| Maintenance-free mechanism with no resetting | |
| Ergonomic handle for fatigue-free operation | |
| Pre-set | |
| tamper-proof torque configuration | |
