Datalogic939501111
TC1200-0100 | SCAN ENGINE CCD READER, USB
TC1200-0100 represents the state-of-the-art-technology in CCD technology setting new standard in Auto-ID market for OEM applications and entry level Factory Automation.
$288.43List $416.00
Save $127.57Total$288.43Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
939501111 | TC1200-0100 | SCAN ENGINE CCD READER, USBTC1200-0100
Total$288.43
1
Details
Product information
Overview

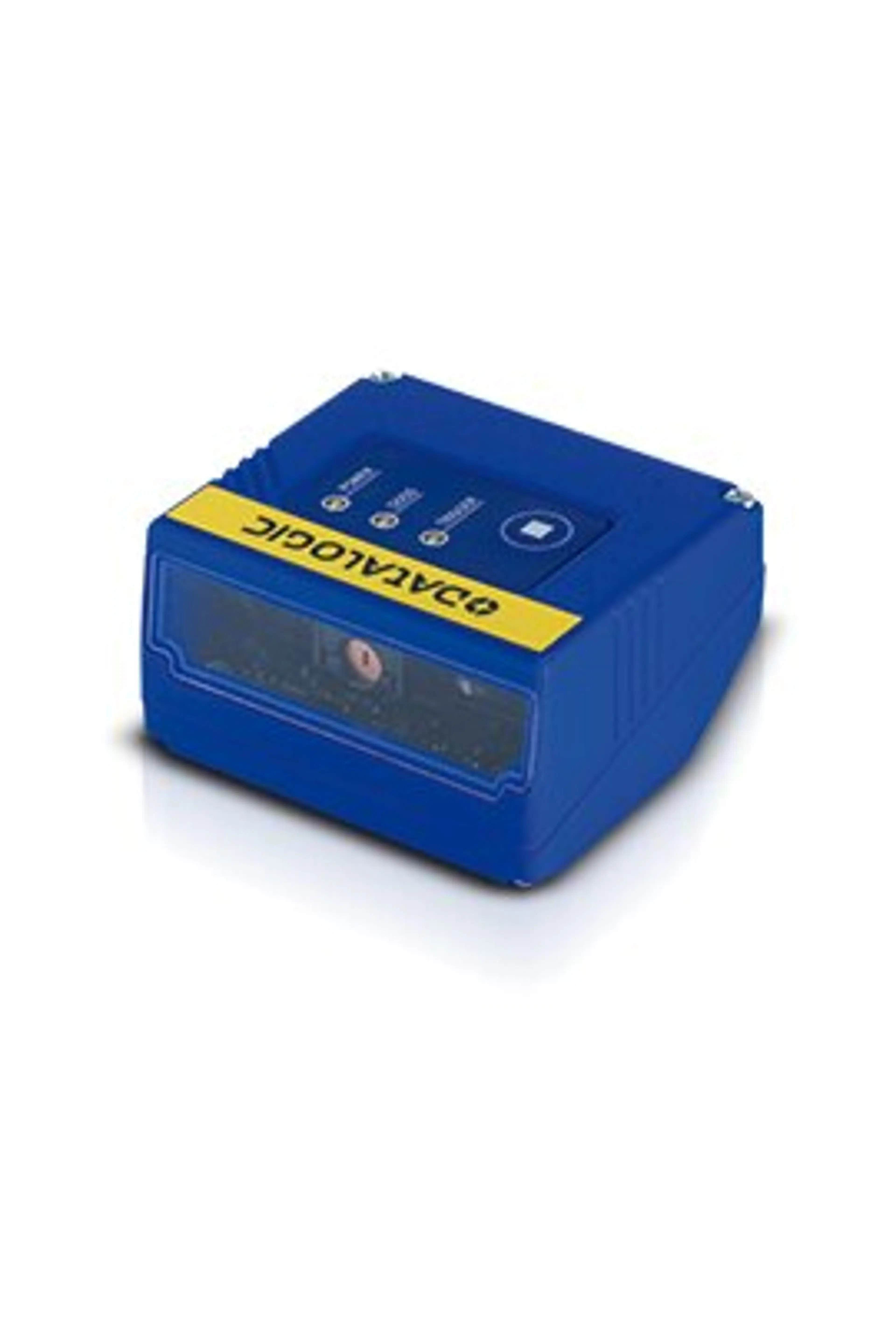

Datalogic TC1200-0100 / 939501111
SCAN ENGINE CCD READER, USB
TC1200-0100 represents the state-of-the-art-technology in CCD technology setting new standard in Auto-ID market for OEM applications and entry level Factory Automation.
Thanks to innovative CCD technology, TC1200-0100 offers excellent reading performance, great decoding capability, outstanding product reliability combined with ease to use HMI interface.
TC1200-0100 is also available in Scan Engine package very useful for applications where the CCD reader is applied inside a machine.
Features:
- Linear CCD Technology
- Excellent Reading performance on bad label codes
- High Scan Rate @320 scans/sec
- Very high resolution codes up to 3 mils
- Serial and USB standard Interface
- IP64 protection class enclosure
- Scan Engine module version
- Easy set up with Aladdin software tools and Programming Bar Code Labels
Applications:
- Hand Free solutions for Factory Automation
- Lab Automation and Biomedical analysis machines
- Kiosk and ATMs terminal service
- Access Control and Ticketing
- Game and Lottery Machine
| Technical Specifications | |
|---|---|
| Operating Modes | OnLine, Serial OnLine, Automatic, Automatic Object Sense, Test |
| Model | TC1200-0100 |
| Interface | 3 LEDs, 1 Button for manual triggering |
| Type | Identification - Image-Based ID readers |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0° to +50 °C (+32° to +122 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 1.75 |
| SKU | 939501111 |
| Dimensions | 50 x 20.8 x 43 mm |
| Communication | USB |
| Power supply | 5 VDC |
| Output | Two software programmable, optocoupled, 30V, 30mA |
| Weight (lbs) | 0.07 |
| Series | TC1200 |
| Max scans/sec | 320 |
| Resolution | 0.10 mm, 4 mils |
| MPN | TC1200-0100 |
| Features & Benefits | |
| Linear CCD Technology | |
